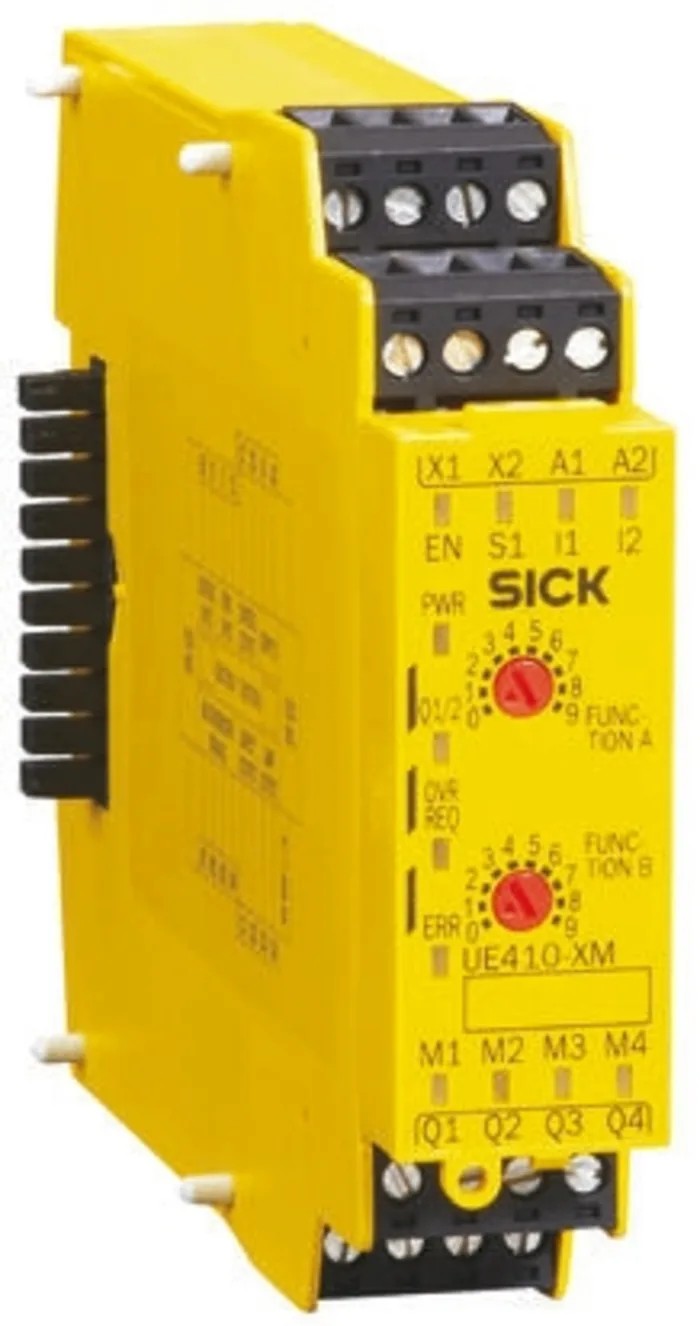

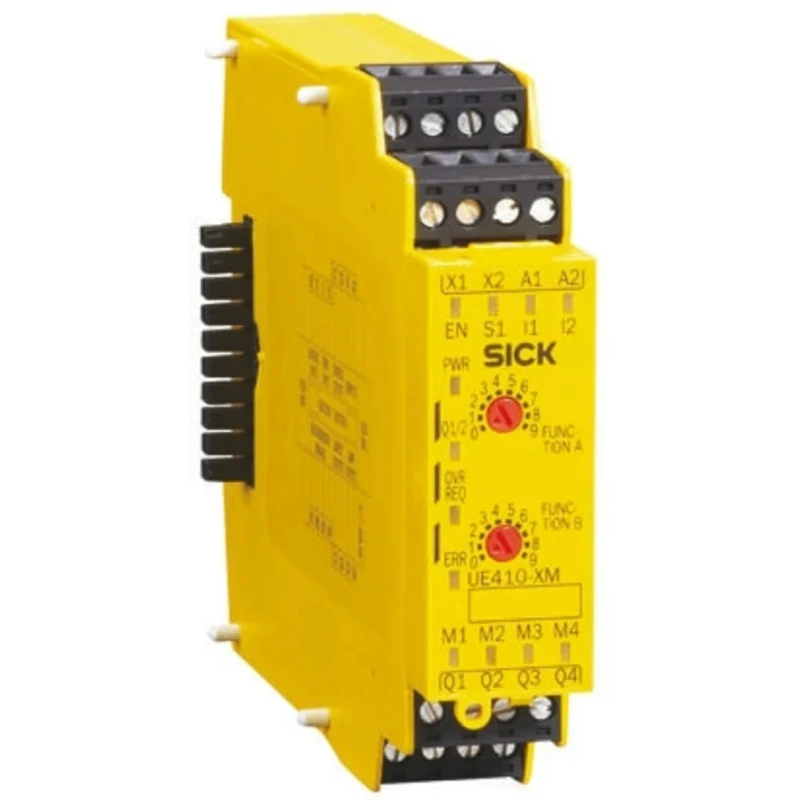

SICK UE410 Series Input/Output Module, 5 Inputs, 3 Outputs, 24V DC, 3W Power Rating

The SICK UE410-XM3 is a high-performance input/output module designed for industrial automation safety applications. This unit features 5 inputs and 3 outputs, operating at a supply voltage of 24V DC and consuming a power rating of 3W. It is ideal for integration on DIN rails in machinery and control panels.

Key functionalities include muting and override, concurrence monitoring, sensor gap monitoring, and total muting time monitoring. It supports 2 or 4 muting sensors and includes a reset/restart input along with external device monitoring capabilities. Activation and time settings are adjustable from 0.33 to 60 minutes.

The module’s output safety-capable outputs utilize PNP semiconductors which are short-circuit protected and cross-circuit monitored, ensuring safe operation under demanding conditions. It can deliver a maximum output current of 2A with a maximum response time of 13 ms and a maximum switch on time of 10 seconds.

This device complies with Category 4 (EN ISO 13849), SIL3 (IEC 61508), SILCL3 (IEC 62061), and PL e (EN ISO 13849) safety standards, making it suitable for application in opto-electronic protective devices and non-contact safety switches.

Designed and manufactured in Germany, the UE410-XM3 module meets CE and UL approvals, making it suitable for use in industrial and manufacturing processes demanding high levels of machine safety and control precision.

Equipped with 5 inputs and 3 outputs for versatile control applications. Designed for mounting on DIN rails to ensure secure installation. Incorporates plug-in terminal type for easy connectivity. Utilizes PNP semiconductor safety-capable outputs that are short-circuit protected and cross-circuit monitored.

Maximum output current of 2A supports robust device operation. Fast maximum response time of 13 ms enhances safety monitoring. Adjustable activation and muting time from 0.33 to 60 minutes for flexible safety control. Certified with CE and UL standards ensuring compliance with industrial safety requirements.

Developed for use with opto-electronic protective devices and non-contact safety switches.

This product is a vital component in industrial automation systems, suitable for process control, safety systems, manufacturing, and industrial machinery applications. Explore further products in the Safety IO Modules category for comprehensive control solutions at EnvMart.
