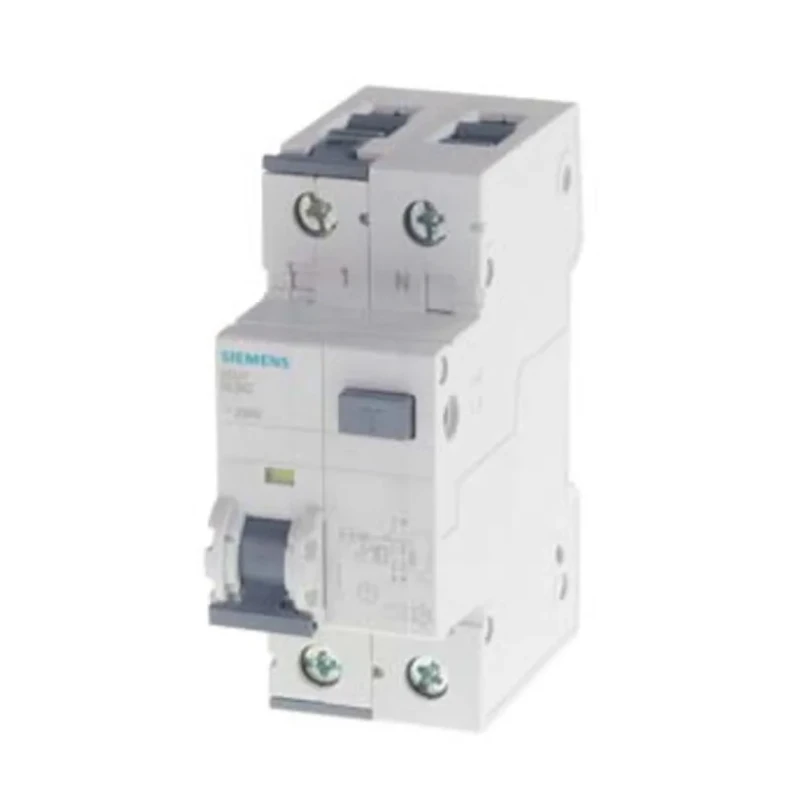

Siemens Residual Current Circuit Breaker with Overload Protection 25A, 2-Pole, 30 mA Trip Sensitivity 5SU1354-7KK25
Specifications
| Country of Origin | Romania |
|---|---|
| Range | SENTRON |
| Brand | Siemens |
| Height | 90mm |
| Model | 5SU1354-7KK25 |
| Depth | 77mm |
| Width | 36mm |
| Mount Type | DIN Rail |
| Current Rating | 25A |
| Series | 5SU1 |
| Terminal type | Screw |
| Breaking Capacity | 20kA |
| Number of Poles | 2 |
| Standards/Approvals | IEC 60947-2, EN 60898 |
| Rated AC Voltage | 230V ac |
| Tripping Characteristics | Type C |
| Better World Claim | Extended Product Life |
| Reset Actuator Type | Toggle Switch |
| Trip Sensitivity | 30mA |
| Earth Leakage Protection Type | Type A |
Key Features
- Incorporates combination of residual current and miniature circuit breaker functions.
- Offers 2 poles and Type C tripping characteristics for reliable protection.
- Mounts easily on standard DIN rail for industrial applications.
- Equipped with a screw terminal type for secure conductor connection.
- Provides breaking capacity of 20kA for safe interruption of faults.
- Designed according to IEC 60947-2 and EN 60898 standards.
- Compact dimensions with 90mm height, 77mm depth, and 36mm width for installation.
- Toggle switch reset actuator offers easy manual operation.
Product Description
Siemens 5SU1354-7KK25 Residual Current Circuit Breaker with Overload Protection features a 25A current rating and 30 mA trip sensitivity, designed for personnel, fire, and line protection in industrial, commercial, and residential environments.
This device combines the functions of an RCCB and a miniature circuit breaker, providing comprehensive electrical protection by detecting residual currents including sinusoidal AC and pulsating DC currents, thanks to its Type A earth leakage protection.
It is compactly designed with 2 poles, Type C tripping characteristic, and a rated AC voltage of 230V for reliable and safe circuit interruption. Its DIN rail mounting system allows for straightforward installation in distribution panels.
The breaker includes a screw terminal for secure wiring connection and a toggle switch reset actuator for convenient manual resetting after tripping events. Its breaking capacity of 20kA ensures the safe handling of fault currents.
Manufactured according to IEC 60947-2 and EN 60898 standards, this device supports electrical safety and equipment longevity. The product's compact physical dimensions (90mm height, 77mm depth, 36mm width) enable efficient use of panel space.
Incorporates combination of residual current and miniature circuit breaker functions. Offers 2 poles and Type C tripping characteristics for reliable protection. Mounts easily on standard DIN rail for industrial applications.
Equipped with a screw terminal type for secure conductor connection. Provides breaking capacity of 20kA for safe interruption of faults. Designed according to IEC 60947-2 and EN 60898 standards. Compact dimensions with 90mm height, 77mm depth, and 36mm width for installation.
Toggle switch reset actuator offers easy manual operation. Earth leakage protection of Type A for AC and pulsating DC residual currents. Made in Romania ensuring quality manufacturing and extended product life.
This Residual Current Circuit Breaker is ideal for electrical installations requiring superior protection for personnel and equipment in industrial, manufacturing, electrical distribution, commercial, and residential facilities.
Explore more Siemens electrical protection devices and circuit breakers at EnvMart to build safe and reliable electrical systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The circuit breaker has a current rating of 25A.
This model features a trip sensitivity of 30 mA.
It is a 2-pole circuit breaker.
The breaking capacity is 20kA, allowing for safe interruption of fault currents.
It mounts easily on standard DIN rail, making installation straightforward.
The dimensions are 90mm in height, 77mm in depth, and 36mm in width.
It is designed according to IEC 60947-2 and EN 60898 standards.
It offers Type A earth leakage protection for both AC and pulsating DC residual currents.
The rated AC voltage is 230V.
It includes a toggle switch reset actuator for manual operation after tripping.
This circuit breaker belongs to the 5SU1 series.
It is manufactured in Romania.
