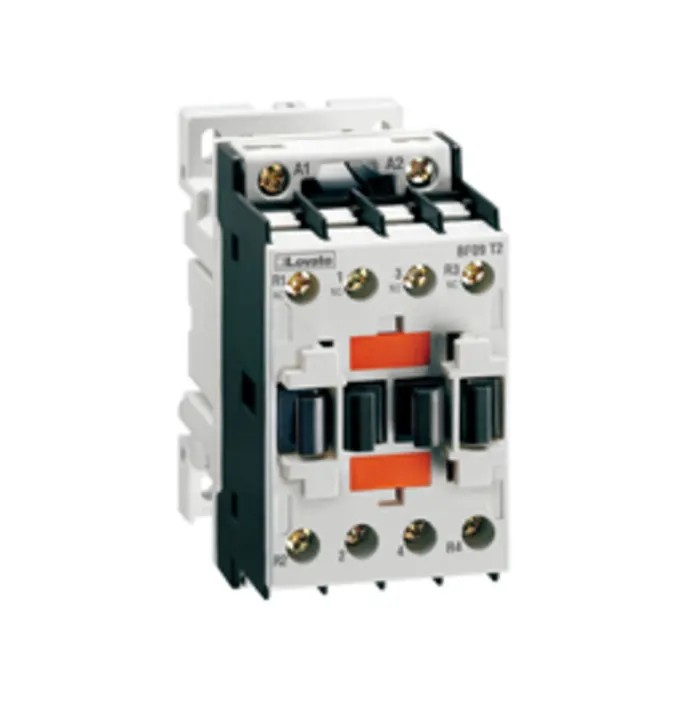

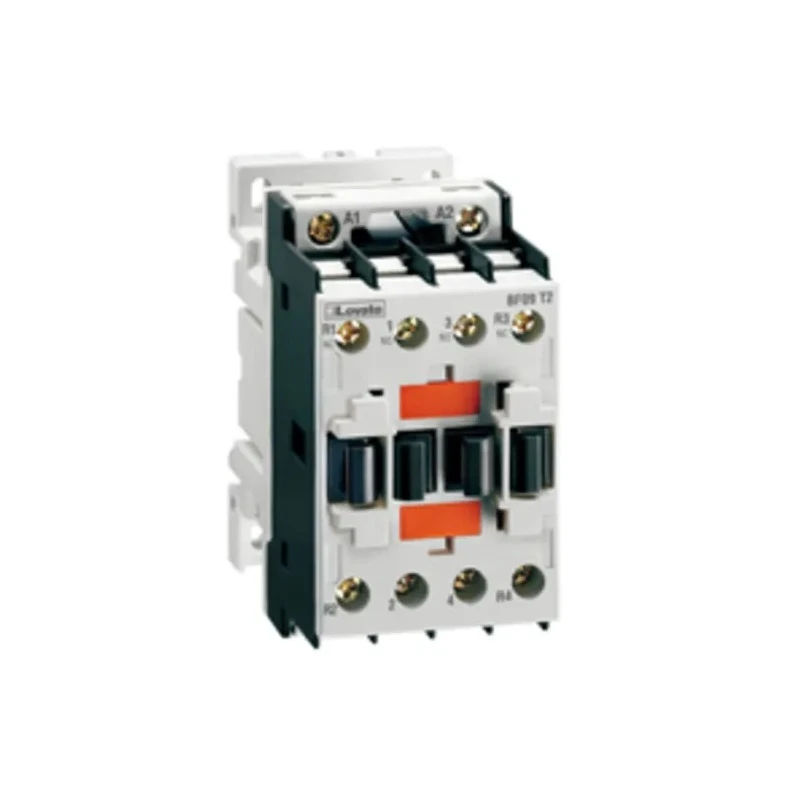

Lovato Electric 45A BF Motor Protection Circuit Breaker 230V, -50°C to 70°C BF26T2A230

Lovato Electric BF26T2A230 Motor Protection Circuit Breaker offers reliable motor protection with a current rating of 45A and operates on a 230V supply voltage. Designed for industrial and commercial applications, this circuit breaker supports an operating temperature range of -50°C to 70°C, ensuring robust performance in diverse environmental conditions.

Constructed with highly conductive auxiliary contacts that feature four contact points, it provides distinct contact status indications to enhance operator awareness and system safety. The device supports quick connect snap-on accessory mounting, allowing for easy installation and maintenance. Up to four auxiliary contacts can be mounted to extend control capabilities.

This circuit breaker incorporates a mechanical interlock mounted only 5mm deep and uses positive force guided contacts mechanically linked according to IEC standards, ensuring safe and reliable operation. Its design accommodates three-pole contactors rated from 9 to 110A IEC AC3 duty and four-pole contactors rated for 25 to 125A in AC1 duty. It is suitable for power factor correction contactors ranging from 7.5 to 75kvar at 400V IEC and 9 to 80kvar at 480V UL/CSA. Types with 2NO+2NC or 4NC main power poles are available, including specialized versions for photovoltaic applications.

This circuit protection solution meets multiple international standards and approvals, such as CCC, CSA C22.2 No. 60947-4-1, cULus, EAC, IEC/EN 60947-1, IEC/EN 60947-4-1, RoHS, and UL 60947-1, ensuring compliance and quality assurance. Its IP20 rating confirms protection against solid objects greater than 12 mm but limited protection against liquids, making it suitable for controlled indoor environments.

The overall compact dimensions of length 61mm, width 90mm, and depth 90mm make it an ideal choice for electrical panels and automation gear requiring reliable motor protection. Manufactured in Italy, this new condition motor protection circuit breaker enhances operational reliability in industrial, manufacturing, HVAC, and automation applications.

Highly conductive auxiliary contacts with four contact points ensure effective operation. Quick connect snap-on accessory mounting enables easy installation. Distinct contact status indication aids in troubleshooting and monitoring.

Supports mounting of up to four auxiliary contacts for extended functionality. Mechanical interlock only 5mm deep provides enhanced safety. Positive (force) guided contacts mechanically linked per IEC improve reliability.

Compatible with three-pole and four-pole contactors across a wide current range. Suitable for power factor correction applications up to 75kvar. Available in types for photovoltaic applications. Explore more industrial and automation electrical products in the Motor Protection Circuit Breaker category at EnvMart for reliable industrial solutions.
