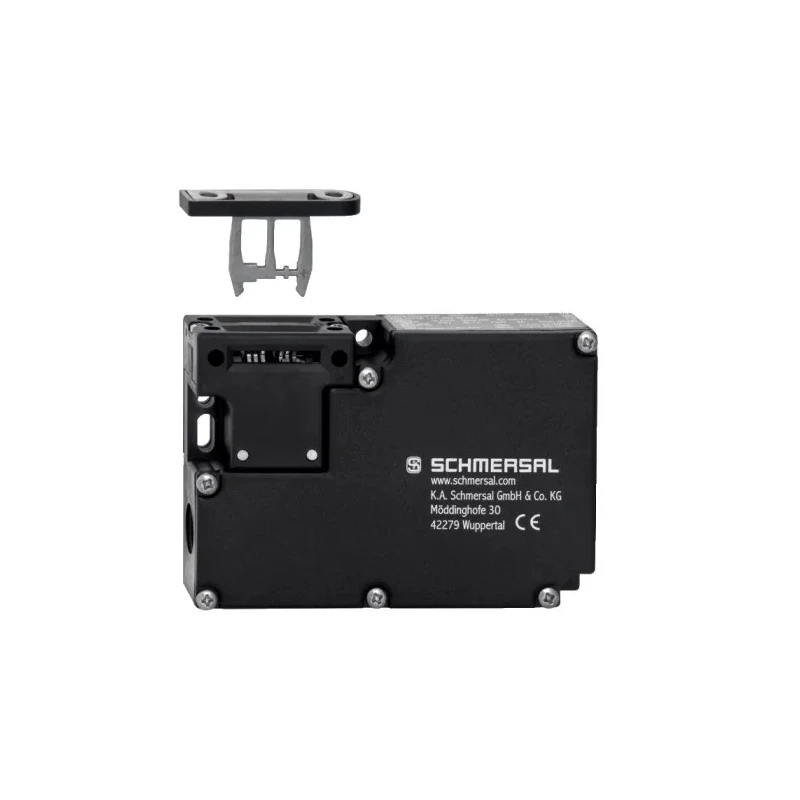

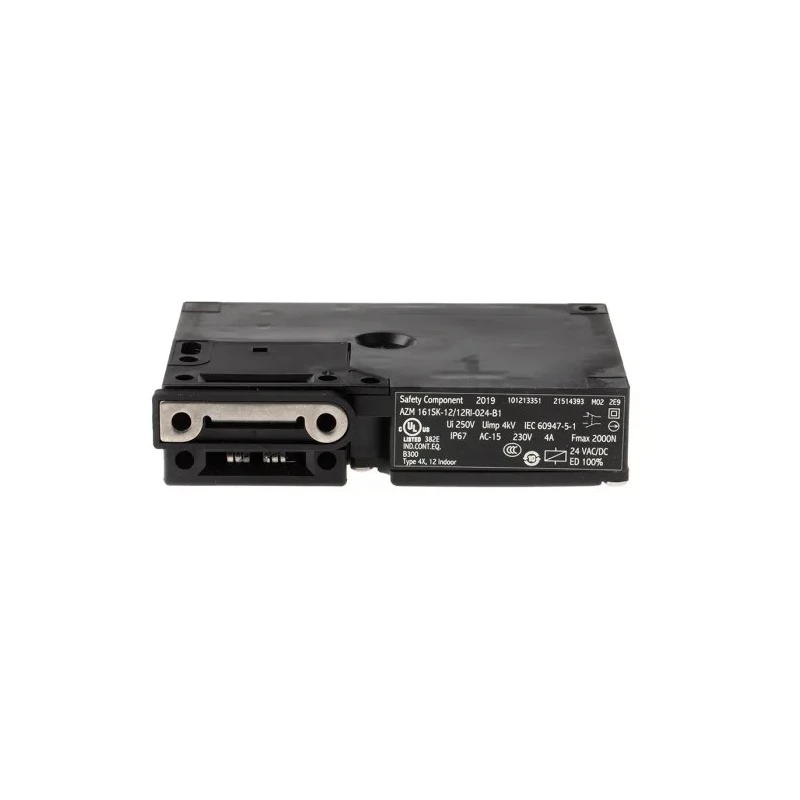

Schmersal Solenoid Interlock Switch with Power to Unlock Actuator, 24V AC/DC, Plastic Housing, IP67, AZM161SK-12/12RI-024-B1

Schmersal AZM161SK-12/12RI-024-B1 Solenoid Interlock Switch, featuring a power to unlock actuator, is designed for industrial safety applications requiring reliable machine guarding.

This device operates on 24V AC/DC supply voltage and consumes 10W of power. It has a double-insulated enclosure made of glass fibre-reinforced thermoplastic, ensuring durability and electrical safety for operators.

The switch is magnetically coded, which enhances the sensing range and offers superior resistance to tampering. It features two normally open (2 NO) safety contacts and two auxiliary contacts, connected via plug-in terminals for easy installation and maintenance.

Protected to IP67 standards, the switch is dust-tight and waterproof, capable of withstanding submersion in 1 meter of water for 30 minutes. Its compact dimensions, 130mm length, 90mm width, and 30mm depth, facilitate installation in confined spaces.

The robust design meets multiple international safety standards including BG, BG-GS-ET-19, CE, cULus, DIN EN 60269-1, EN 60947-5-1, EN ISO 13849-1, and IEC/EN 60529. Operating temperature ranges from -30°C up to +60°C make this switch versatile for various industrial environments.

This product finds application across pharmaceutical manufacturing, hospitals and medical centers, as well as mining and mineral processing industries, contributing to workplace safety and regulatory compliance.

Includes power to unlock actuator for enhanced safety. Double-insulated plastic housing resists heat and electrical shocks. Rated IP67 for protection against dust and water submersion up to 1 meter for 30 minutes. Compact dimensions of 130mm length, 90mm width, and 30mm depth for flexible installation.

Wide operating temperature range from -30°C to +60°C. Magnetically coded actuator provides tamper resistance. 2 Normally Open safety contacts and 2 auxiliary contacts with plug-in terminals. Compliant with BG, CE, cULus, DIN EN, IEC, and ISO safety standards.

Suitable for pharmaceutical, medical, and mining industries. Operates on 24V AC/DC supply voltage with 10W power consumption.
