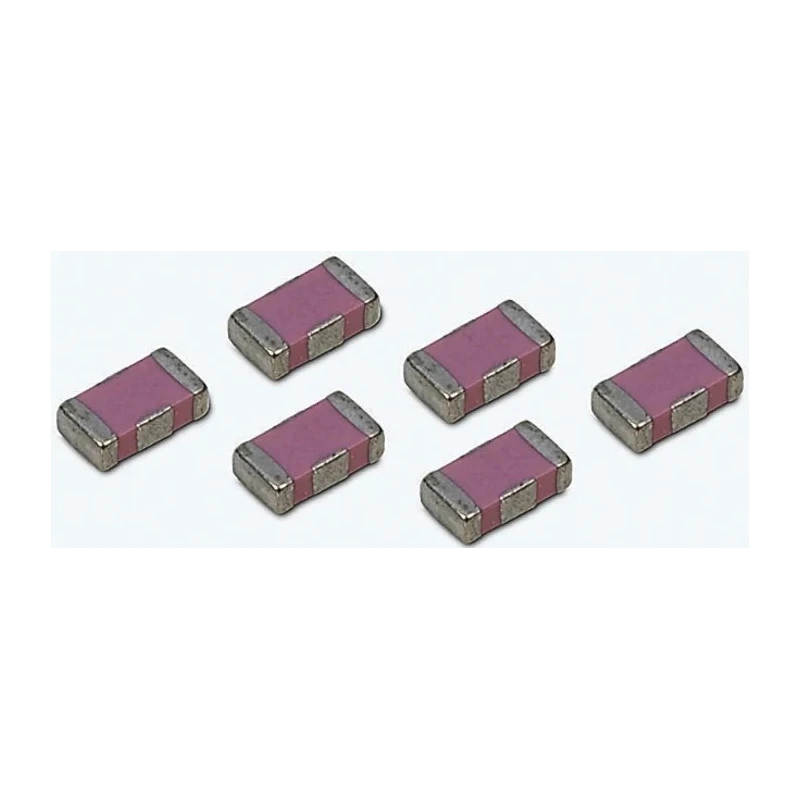

KYOCERA AVX 22 nF 50V dc X7R Multilayer Ceramic Capacitor Surface Mount 1206 W3F15C2238AT1A

Free Delivery in India | Lowest Global Shipping Charges

KYOCERA AVX 22 nF 50V dc X7R Multilayer Ceramic Capacitor Surface Mount 1206 W3F15C2238AT1A

Name: KYOCERA AVX 22 nF 50V dc X7R Multilayer Ceramic Capacitor Surface Mount 1206 W3F15C2238AT1A
Brand: KYOCERA AVX
SKU: 213523
Price: 0.17 USD
Availability: InStock



Category Multilayer Ceramic Capacitors Brand KYOCERA AVX Condition New

Specifications

Country of Origin	India
Voltage	50V dc
Brand	KYOCERA AVX
Height	1.27mm
Length	3.2mm
Model	W3F15C2238AT1A
Packaging	Reel
Width	1.6mm
Mount Type	Surface
Series	W3F
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	-20 to 50 %
Capacitance	22nF
Minimum Operating Temperature	-55°C
Package/Case	1206
Dielectric	X7R

Key Features

This capacitor features a capacitance tolerance range of -20 to 50 percent, ensuring reliability in varied conditions.
Its operating temperature spans from -55°C to 125°C, suitable for demanding environments.
Designed with low ESR and broad frequency response for excellent decoupling capabilities.
Compact dimensions of 3.2 mm length, 1.6 mm width, and 1.27 mm height support space-saving PCB layouts.
Packaging in reels facilitates automated assembly and improved production efficiency.
Ideal for EMI suppression, filtering, conditioning, and decoupling in industrial and electronic applications.
Surface mount termination ensures compatibility with modern manufacturing processes.

Product Description

KYOCERA AVX W3F15C2238AT1A Multilayer Ceramic Capacitor is a high-quality passive component designed for surface mount technology in the 1206 standard package size. It features a capacitance of 22 nF and a voltage rating of 50V dc with a dielectric of type X7R, making it suitable for a variety of electronic circuits requiring stable performance across temperature variations.

With a tolerance of -20 to 50 percent, this capacitor provides reliable operation despite environmental and manufacturing variations. The component can operate across a wide temperature range from -55°C up to 125°C, making it well suited for demanding industrial, automotive (non-automotive certified in this case), communication, and consumer electronics applications.

The low Equivalent Series Resistance (ESR) and broad frequency response offer excellent decoupling, filtering, and EMI suppression capabilities, vital for maintaining signal integrity in sensitive circuits.

Compact dimensions of 3.2 mm length, 1.6 mm width, and 1.27 mm height allow for dense PCB packing, while surface mount terminations ease automated placement in manufacturing lines. The reel packaging format supports high-volume production efficiency and reduces handling time in assembly.

This capacitor is designed specifically for use in industrial, electronic, and manufacturing applications requiring reliable Multilayer Ceramic Capacitors (MLCCs). Its excellent decoupling ability also makes it suitable for power supply noise reduction and signal conditioning tasks.

The component is carefully manufactured under KYOCERA AVX standards ensuring consistent performance. The standard 1206 case size facilitates easy replacement and integration into existing designs.

Choose this KYOCERA AVX W3F15C2238AT1A capacitor for dependable multilayer ceramic capacitor solutions in industrial and electronic component applications. Explore more capacitors and electronic components at EnvMart for your manufacturing and design needs.
