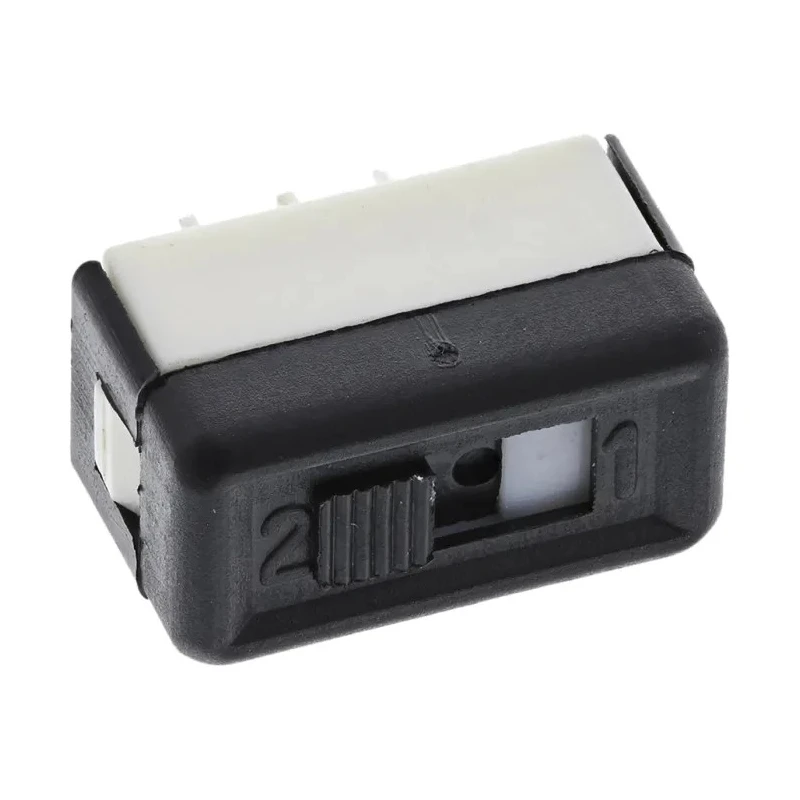

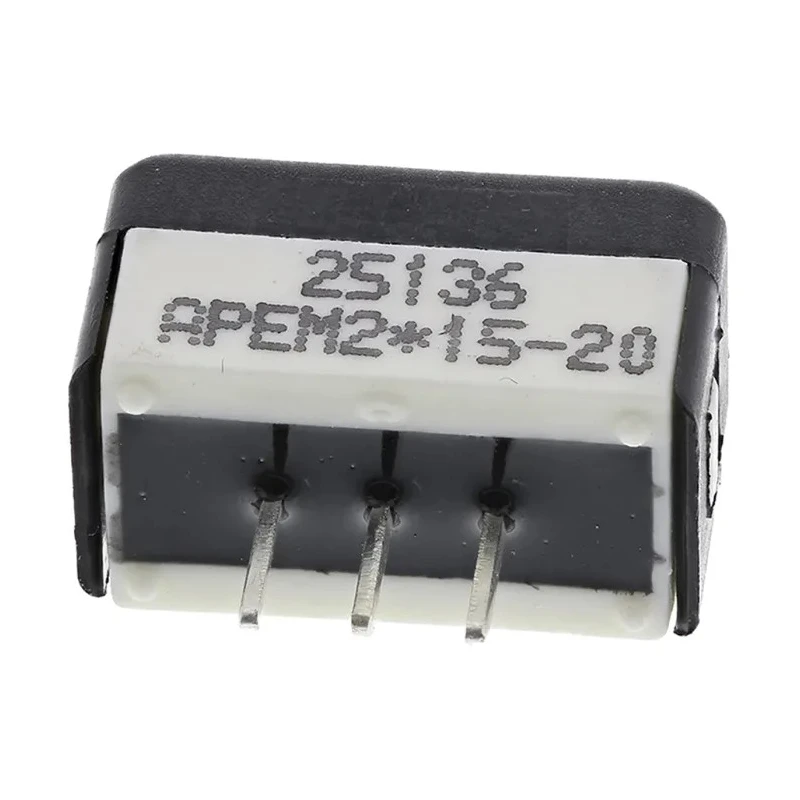

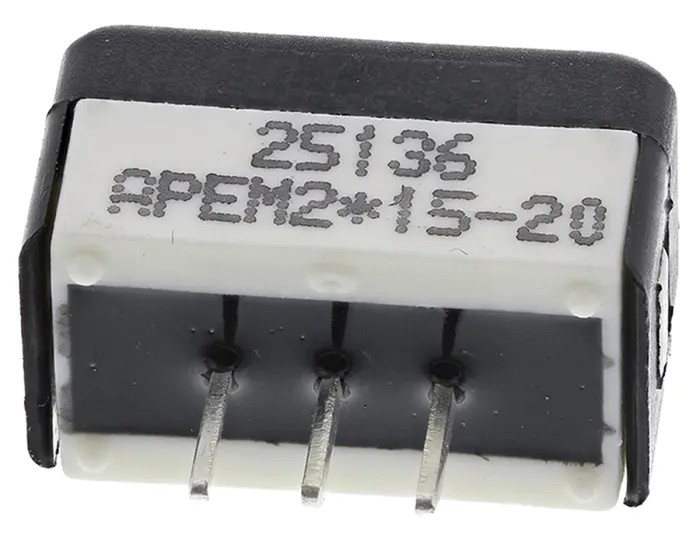

APEM PCB Slide Switch SPDT Latching 4A Silver 25136NAB

APEM 25136NAB PCB Slide Switch SPDT Latching 4A Silver is a premium miniature slide switch designed for electronic and electrical applications requiring reliable switching solutions on printed circuit boards. Its compact size with length 14.1mm, width 11.9mm, and depth 11.9mm makes it ideal for space-constrained PCB layouts.

The switch features a Single Pole Double Throw (SPDT) contact configuration and a latching operation that allows the switch to maintain its position until actuated again, providing stable ON-OFF-ON functionality with an On-None-On configuration. It supports a switch contact current rating of 4 amperes at 30 V DC, suitable for various low voltage circuit control needs.

Constructed with a silver actuator, the switch assures excellent electrical conductivity and longevity. It withstands operating temperatures from -40°C up to 85°C, making it appropriate for varied environmental conditions commonly found in industrial and commercial electronics.

The device meets UL standards and offers a mechanical life expectancy of 20,000 operations, ensuring dependable long-term performance in applications such as industrial control systems, automation equipment, and consumer electronics.

The sealed terminals prevent flux ingress during soldering, enhancing reliability and reducing manufacturing defects. The robust plastic housing resists high temperatures due to its polyamide and thermoplastic materials, contributing to durability.

Features SPDT contact configuration offering single pole double throw switching. Designed for PCB mounting with solder terminal type for secure installation. Operates with a latching switch mechanism ensuring stable switching states.

Rated for a switch contact current of 4 amperes at 30V DC. Compact dimensions of approximately 14.1mm length, 11.9mm width, and 11.9mm depth. Constructed with silver actuator material providing excellent conductivity and durability.

Suitable for operating temperatures ranging from -40°C to 85°C. Complies with UL standards for safety and quality assurance. Mechanical life rated at 20,000 operations ensuring long-term reliability.

This switch is ideal for industrial, electronic manufacturing, automation, and laboratory equipment applications, where precise, reliable switching of low voltage DC circuits is essential. Its miniature size and high-quality build meet rigorous industrial standards, facilitating efficient PCB integration.
