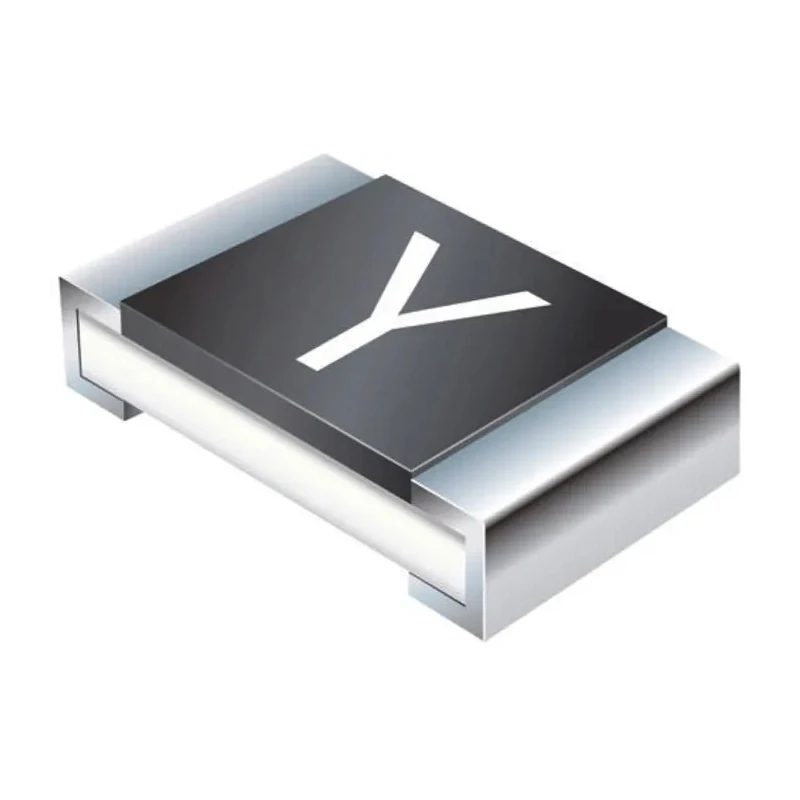

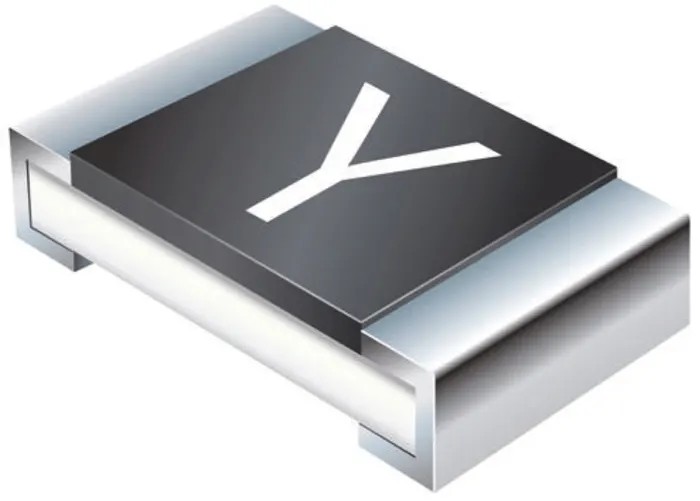

Bourns Non-Resettable Ceramic Body Fuse 5A 24V DC Time Delay 1206 Package SF-1206S500-2
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Bourns |
| Body Material | Ceramic |
| Height | 0.6mm |
| Model | SF-1206S500-2 |
| Depth | 3.1mm |
| Series | SF-1206S |
| Maximum Operating Temperature | 105°C |
| Resistance | 0.01Ω |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Package Size | 1206 |
| Breaking Capacity | 50A |
| Terminal Material | Tin Plated Nickel Copper |
| Standards/Approvals | RoHS, UL 248-14 |
| Fuse Characteristics | Time Delay |
Key Features
- This slow blow fuse has a ceramic body and 1206 package size suitable for compact PCB mounting.
- Rated for 5 amperes and 24 volts DC operation with a 50A breaking capacity.
- Features time delay fuse characteristics to protect sensitive electronics from transient surges.
- Constructed with tin plated nickel copper terminals for secure connections and low resistance.
- Operates reliably between -40°C and 105°C ambient temperatures for varied environments.
- Designed for surface mount technology, saving board space in industrial and commercial electronics.
- Ideal for protecting high value integrated circuits in devices like alarms, audio equipment, and power supplies.
- Complies with RoHS and UL 248-14 standards for safety and environmental regulations.
Product Description
Bourns SF-1206S500-2 is a non-resettable slow blow fuse designed for high reliability overcurrent protection in electronic circuits. It features a ceramic body with a miniature 1206 (EIA 3216) surface mount package suitable for modern PCB assembly.
This fuse is rated for 5 amps and 24V DC operation, with a high breaking capacity of 50 amps to safely interrupt fault currents. The time delay characteristic protects sensitive electronic components from temporary surges while providing robust protection against sustained overloads.
The fuse uses tin plated nickel copper terminals ensuring excellent conductivity and mechanically secure solder connections. Its temperature range of -40°C to 105°C allows for operation in harsh industrial and commercial environments without degradation.
Surface mount technology offers considerable space savings, making the SF-1206S500-2 ideal for compact and densely packed printed circuit boards. It is commonly used in applications including alarm systems, audio and visual equipment, computer and telecom boards, portable telephones, power supplies, and medical apparatus.
This fuse has a ceramic body with a size 1206 package. Rated current is 5A with 24V DC voltage rating. Time delay (slow blow) characteristic for transient surge tolerance. Breaking capacity rating of 50A ensuring safe fault clearing.
Operating temperature range from -40°C to 105°C. Equipped with tin plated nickel copper terminals. Compliance with RoHS and UL 248-14 safety standards.
Its compact design and reliable protections make it suitable for industrial electronics, automation systems, telecommunications infrastructure, and commercial electrical equipment. The fuse improves system safety and component lifespan by effectively preventing damaging overcurrent conditions.
Explore more reliable fuses and electrical protection devices in the Electronics & Electricals category at EnvMart.
Explore more products in our Non-Resettable Fuse category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 5 amperes and operates at 24 volts DC.
It has a breaking capacity of 50 amps, allowing it to safely interrupt fault currents.
The fuse has a height of 0.6 mm and a depth of 3.1 mm, fitting the 1206 package size.
It operates reliably between -40°C and 105°C, making it suitable for various environments.
The fuse features a ceramic body and tin plated nickel copper terminals for secure connections.
It complies with RoHS and UL 248-14 standards for safety and environmental regulations.
This unit has a time delay (slow blow) characteristic, which protects sensitive electronics from transient surges.
Yes, it is designed for surface mount technology, allowing for compact PCB mounting.
It is commonly used in alarm systems, audio and visual equipment, power supplies, and medical apparatus.
The fuse is supplied in a reel package type, suitable for automated assembly processes.
This model belongs to the SF-1206 series, which includes various non-resettable fuses.
The fuse is manufactured in Taiwan, ensuring adherence to quality standards.
