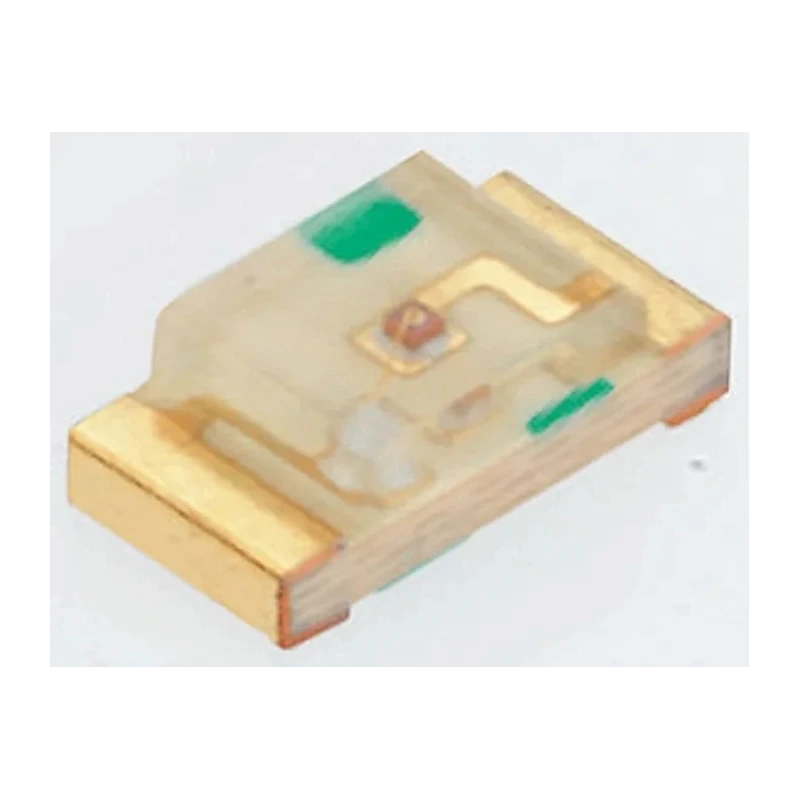

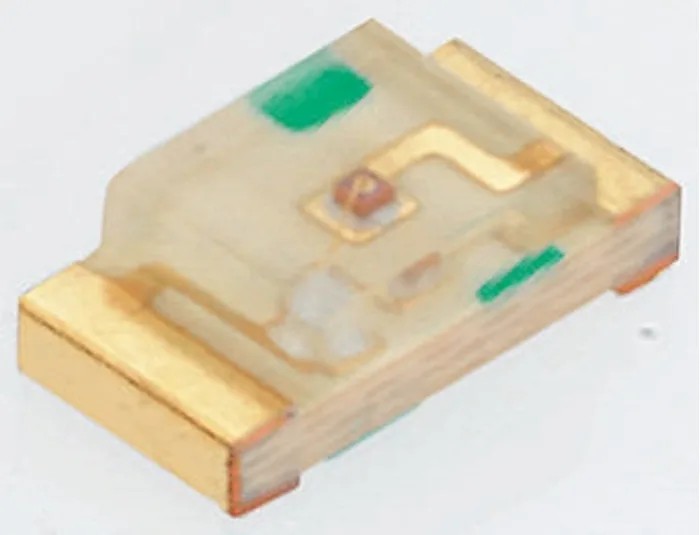

Lite-On Red 2.6 V LED 3216 Surface Mount CHIP LED 1206 LTST-C150EKT
Specifications
| Country of Origin | China |
|---|---|
| Brand | Lite-On |
| Dimensions | 3.2 x 1.6 x 1.1 mm |
| Model | LTST-C150EKT |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | CHIP LED 1206 |
| Maximum forward current | 120mA |
| Viewing angle | 130 ° |
| Package Type | 3216 |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 621nm |
| Forward Voltage | 2.6V |
| Number of Pins | 2 |
| LED Luminosity | 3 mcd |
| Maximum Power Dissipation | 100mW |
| Lens Dimensions | 3.2 x 1.6 mm |
| Lens Shape | Rectangular |
Key Features
- The LED features a 3216 package type designed for surface mounting.
- Red light emission with a dominant wavelength of 621nm.
- Maximum forward current is 120mA ensuring robust operation.
- Lens dimensions measure 3.2 x 1.6 mm with a rectangular clear finish lens.
- The viewing angle is a wide 130 degrees for broad light dispersion.
- LED luminosity is rated at 3 millicandela for visible brightness.
- Complies with RoHS standards for environmental safety.
- Comes packaged in tape and reel format for automated assembly.
Product Description
Lite-On LTST-C150EKT Red LED 3216 Surface Mount CHIP LED 1206 is a compact electronic component designed for visible red light emission at a low forward voltage of 2.6 volts and maximum power dissipation of 100mW. This LED is ideal for applications in electronic displays, indicators, and lighting devices used in industrial, commercial, and consumer electronics sectors.
The LED adopts the industry standard 1206 package size (3216 dimension) with surface mount technology (SMT) that enables ease of automated manufacturing assembly. It features a clear rectangular lens measuring 3.2 x 1.6 mm, providing a broad 130° viewing angle and delivering a luminous intensity of 3 mcd. The LED operates safely at a maximum forward current of 120mA, ensuring reliable brightness output.
The LTST-C150EKT series complies with RoHS environmental standards, making it suitable for applications with regulatory compliance requirements. The red light emission peaks at a dominant wavelength of 621nm, suitable for various signaling and display applications. It comes available in tape and reel packaging which supports efficient insertion into automated PCB assembly lines.
The LED features a 3216 package type designed for surface mounting. Red light emission with a dominant wavelength of 621nm. Maximum forward current is 120mA ensuring robust operation. Lens dimensions measure 3.2 x 1.6 mm with a rectangular clear finish lens.
The viewing angle is a wide 130 degrees for broad light dispersion. LED luminosity is rated at 3 millicandela for visible brightness. Complies with RoHS standards for environmental safety. Comes packaged in tape and reel format for automated assembly.
Manufactured in China with a compact dimension of 3.2 x 1.6 x 1.1 mm.
This product is widely used in electronics manufacturing, display technology, instrumentation, communication equipment, and lighting systems where precise and reliable red LED lighting is needed. The surface mount format ensures compatibility with SMT production lines, enhancing efficiency in mass production.
EnvMart offers this Lite-On 3216 surface mount CHIP LED model LTST-C150EKT for industrial, laboratory, commercial, and electronics production applications, with guaranteed quality and compliance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for this LED is 120mA, ensuring robust operation.
The dominant wavelength of the red light emitted by this model is 621nm.
The dimensions of this LED are 3.2 x 1.6 x 1.1 mm.
It comes packaged in tape and reel format, which supports automated assembly.
The viewing angle is a wide 130 degrees, allowing for broad light dispersion.
The forward voltage rating for the LTST-C150EKT is 2.6V.
The LED luminosity is rated at 3 millicandela, providing visible brightness.
This LED uses a surface mount type, suitable for automated manufacturing.
The lens dimensions measure 3.2 x 1.6 mm with a rectangular shape.
Yes, it complies with RoHS standards for environmental safety.
The maximum power dissipation for the LTST-C150EKT is 100mW.
This LED is manufactured in China.
