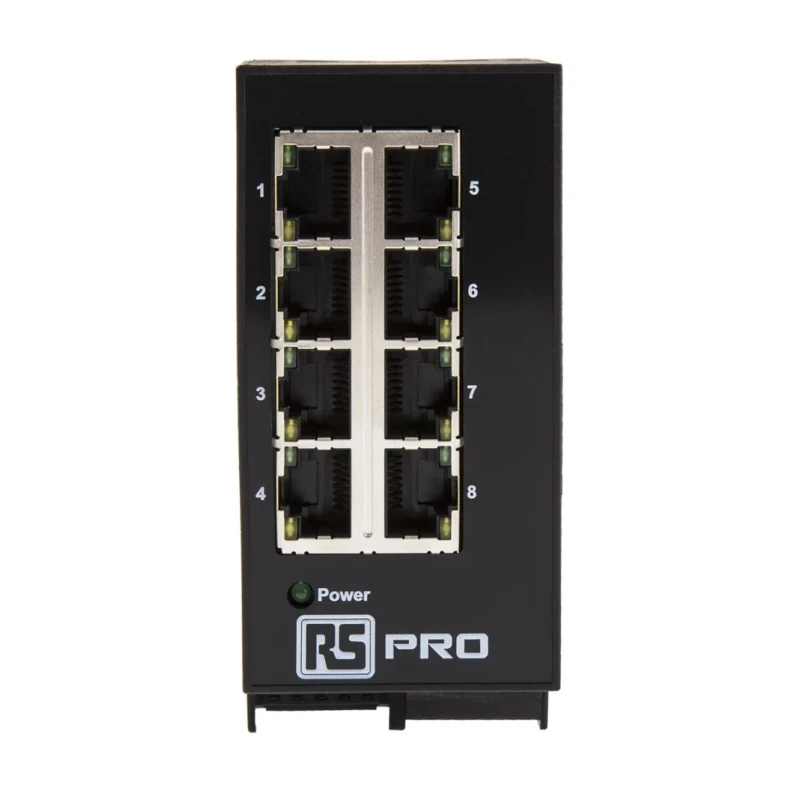

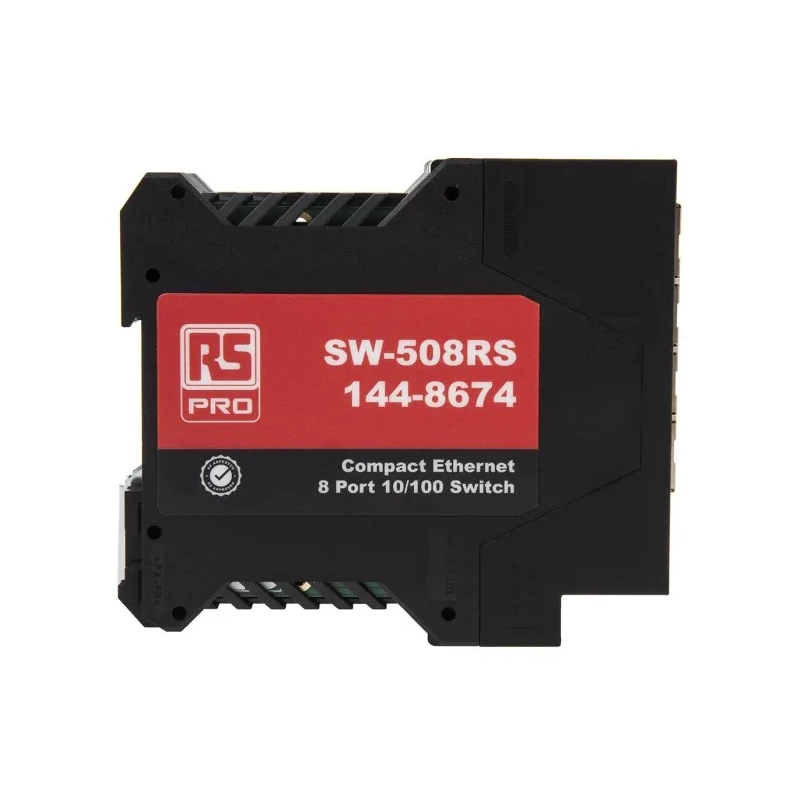

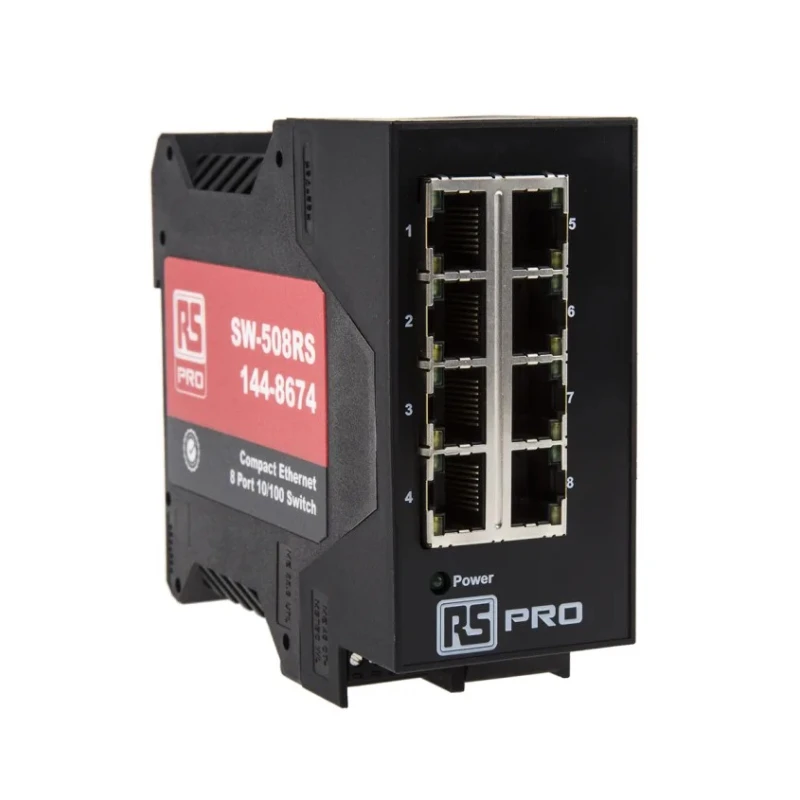

RS PRO Unmanaged 8 Port Ethernet Switch 10/100 Mbps DIN Rail Mount IP-20 Metal Case 144-8674

RS PRO 144-8674 8 Port Unmanaged Ethernet Switch is designed for robust industrial networking, delivering reliable Gigabit-level communication at 10/100 Mbps speeds. Featuring eight galvanically isolated RJ45 Ethernet ports with autosensing and crossover auto-sensing (Auto MDIX) functionality, this device ensures seamless plug-and-play operation without the need for software configuration.

The switch integrates a DIN Rail mount with grounding, enabling compact installation in control cabinets and industrial enclosures. Its IP-20 rated metal enclosure provides durability and protection, suited for challenging industrial environments.

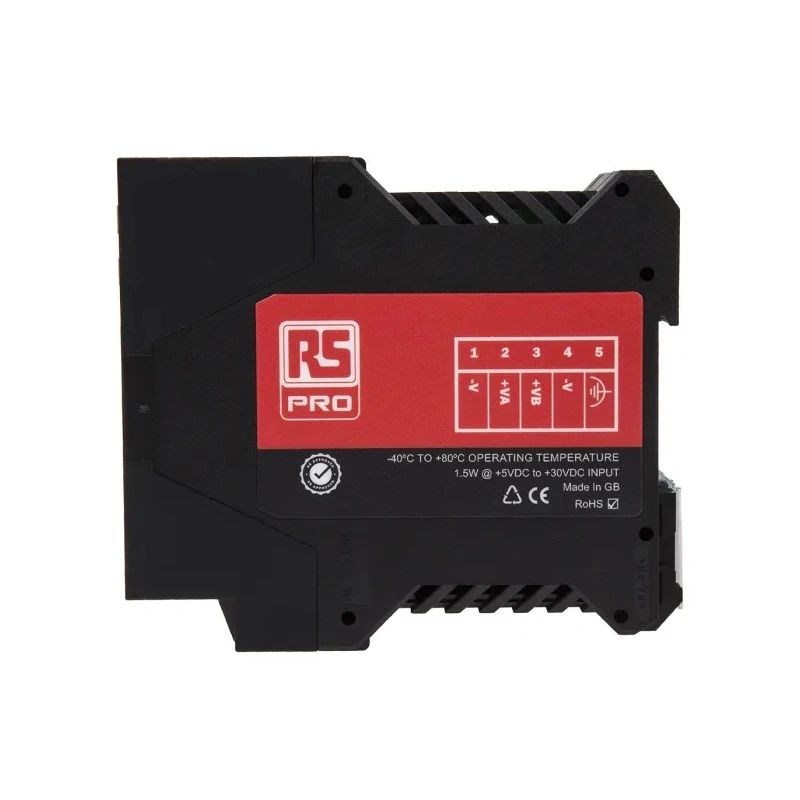

Power is supplied via dual redundant inputs capable of operating from unregulated DC voltages ranging from +5V to +30V with reverse polarity protection. This redundancy guarantees uninterrupted operation by automatically switching between power sources if one fails. The power terminal block is removable and features numbered pins for simplified wiring.

With an extended industrial operating temperature range of -40°C to +80°C, the switch supports deployment in diverse outdoor and harsh indoor conditions. Its low power consumption of 1.35 Watts maximizes energy efficiency, important for large-scale industrial deployments.

Typical applications include factory floors, automation industries, energy production, machinery and robotics, transportation sectors, and marine environments. The compact form factor, weighing only 0.16 kilograms and sized at 115x99x45 mm, saves valuable cabinet space while providing reliable network connectivity to multiple Ethernet devices simultaneously.

The device enables easy installation and maintenance, allowing industrial users to deploy a stable, unmanaged Ethernet extension solution for real-time networking needs without complex configuration requirements.

Provides 8 RJ45 Ethernet ports with autosensing and crossover auto-sensing (Auto MDIX). Unmanaged plug-and-play switching eliminates setup complications. Integrated DIN Rail mount with grounding for secure industrial installation.

Dual redundant power inputs from +5V to +30V DC with reverse polarity protection. Industrial temperature operation from -40°C to +80°C for harsh environments. IP-20 rated metal housing ensures durability and protection. Low power consumption of 1.35 Watts maximizes efficiency.

Compact 115x99x45 mm dimensions for minimal panel space usage. Lightweight at 0.16 kg, facilitating easy handling and setup. Ideal for automation, energy, machinery, transportation, and marine applications. Explore more industrial networking solutions in the Networking & WiFi category at EnvMart for your professional needs.
