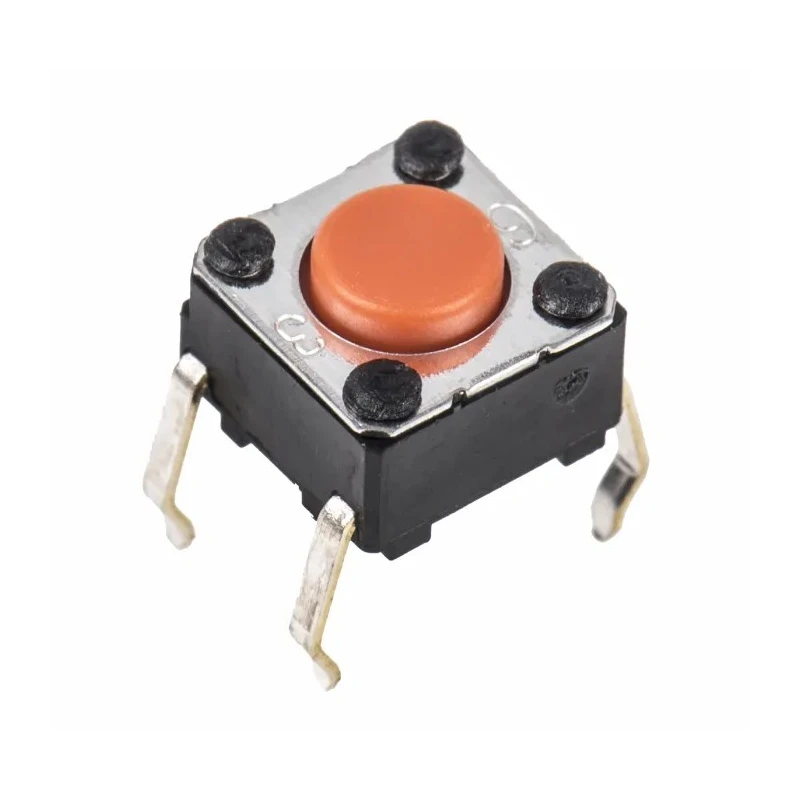

TE Connectivity Tactile Switch SPST 50mA 24V DC Plunger 0.9 mm Actuator Length Through Hole B3F-1005
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TE Connectivity |
| Height | 4.3mm |
| Length | 6mm |
| Model | B3F-1005 |
| IP Rating | IP00 |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | B3F |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST-NO |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | Push-Push |
| Actuator Colour | Orange |
| Actuator Length | 0.9mm |
| Contact DC Voltage | 24V dc |
| Actuator Style | Plunger |
| Actuator Orientation | Vertical |
| Switch Contact Current | 50mA |
| Operating Force | 2.55N |
| Mechanical Life | 1000000Operations |
| Contact AC Voltage | 24V |
| Aratas IP00 Tactile Switch Plunger, 0.9 mm, SPST 50mA 24 V dc, Through HoleBrand | Omron |
Key Features
- The switch has a compact 6 x 6 mm footprint with a height of 4.3 mm.
- It offers push-push operation with an orange vertical plunger actuator.
- Designed to handle a maximum switch contact current of 50mA at 24V DC.
- Operating temperature ranges from -25°C to 70°C ensuring reliable performance.
- Mechanical life rated at 1,000,000 operations for durability.
- Complies with RoHS standards and features an IP00 rating.
- Terminal type is solder suitable for through-hole PCB mounting.
- Ideal for use in audio, office communications equipment, measuring instruments, TVs, and PVRs.
Product Description
Omron B3F-1005 Tactile Switch is a precision-engineered SPST switch designed for reliable low-current switching applications. With a compact size of 6 mm length and width, and a height of 4.3 mm, it features a 0.9 mm orange plunger actuator in a vertical orientation. The switch supports a contact DC voltage of 24V and a maximum contact current of 50mA, ideal for low-power electronic devices.
Featuring a push-push switch operation and solder terminal type, it is suitable for through-hole mounting on printed circuit boards (PCBs). The switch operates effectively within a temperature range of -25°C to 70°C and is built for long-lasting durability with a mechanical life of 1,000,000 operations.
Its IP00 rating implies no protection against ingress, designed primarily for indoor and controlled environments. The switch complies with RoHS standards, ensuring it meets environmental safety requirements. This tactile switch series (B3F) is widely adopted in consumer electronics including audio devices, office and communication equipment, televisions, PVRs, and measuring instruments.
Compact 6 x 6 mm footprint with 4.3 mm height. Orange plunger actuator 0.9 mm in length for tactile feedback. SPST switch configuration with push-push operation. 50mA switch contact current rated at 24V DC. Operating temperature range from −25°C to +70°C.
Mechanical life of 1,000,000 cycles ensures longevity. Through-hole solder terminal mount for reliable PCB installation. RoHS compliant to meet international standards.
Omron tactile switches are favored in industrial and commercial electronics manufacturing for precision switching tasks. They deliver excellent tactile feedback, dense mounting capability, and robust performance in compact dimensions.
Explore the extensive range of Tactile Switches and other high-quality components in the Electronics & Electricals category on EnvMart for your industrial automation and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact current for this model is 50mA.
This tactile switch operates effectively within a temperature range of -25°C to 70°C.
It supports through-hole mounting with solder terminals for installation on printed circuit boards (PCBs).
The actuator length is 0.9 mm and it features a plunger style actuator in a vertical orientation.
The IP rating of this switch is IP00, indicating no protection against ingress.
It is rated for a mechanical life of 1,000,000 operations.
The contact DC voltage rating for this tactile switch is 24V DC.
The switch configuration is SPST (Single Pole Single Throw).
It is suitable for use in audio devices, office communications equipment, measuring instruments, televisions, and PVRs.
The operating force required for this tactile switch is 2.55N.
Yes, this model complies with RoHS standards, ensuring it meets environmental safety requirements.
The dimensions of this switch are 6 mm in length and width, with a height of 4.3 mm.
