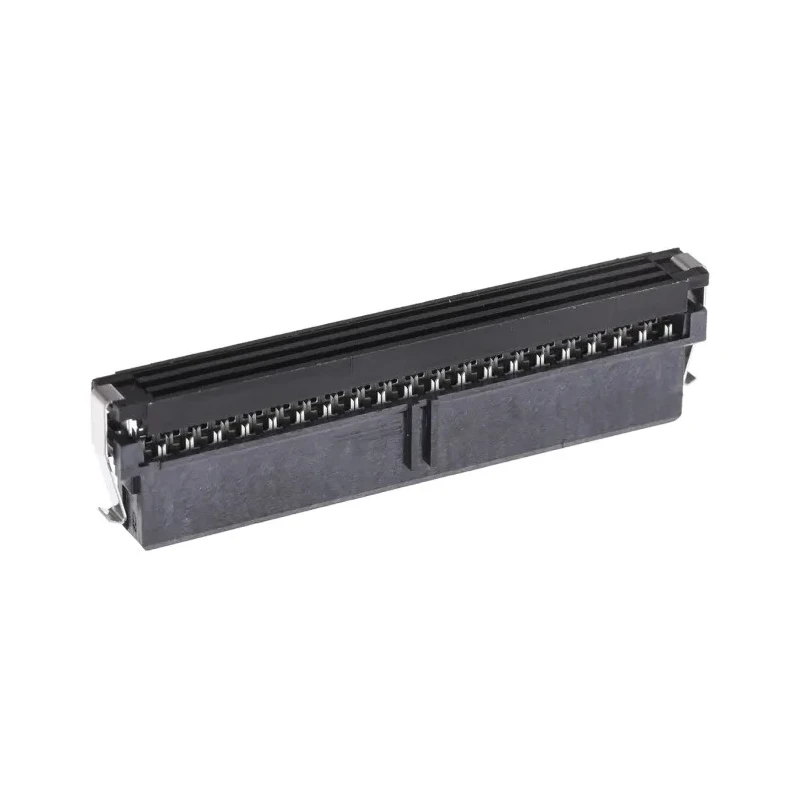

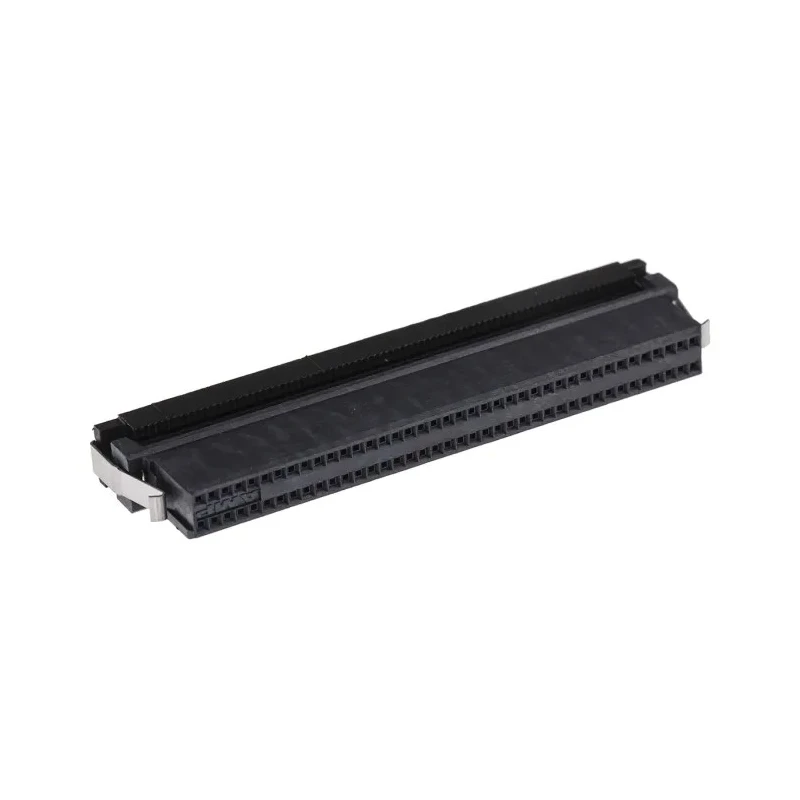

TE Connectivity 80-Way IDC Connector Female for Cable, 2 Row 3-111196-3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 500mA |
| Mount Type | Cable |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper |
| Series | AMP-LATCH System 50 |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 80 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
Key Features
- The connector supports 500mA current and operates up to 105°C.
- Shrouded housing made of Liquid Crystal Polymer ensures durability and reliability.
- IDC termination allows quick, one-step cable assembly without extra tooling.
- Gold plating over nickel ensures high electrical performance and corrosion resistance.
- Right angle orientation with an integral positive locking latch secures connections.
- Suitable for factory automation, telecommunications, medical, server, and automotive control applications.
- Compatible with AMP-LATCH System 50 series for compact, space saving design.
- Polarization bars prevent mis-mating, ensuring accurate connector alignment.
Product Description
TE Connectivity 3-111196-3 IDC Connector Female for Cable, 2 Row is designed with 80 contacts arranged in two rows, featuring a 1.27mm pitch. It supports a current rating of 500mA and a voltage of 30V AC, making it suitable for a variety of electronic applications.
The connector is cable-mounted with an IDC (Insulation Displacement Contact) termination type, enabling quick one-step assembly without requiring additional tooling. The housing is constructed from durable Liquid Crystal Polymer and features a shrouded design for protection.
Gold plating over nickel on the copper contacts ensures excellent electrical conductivity and corrosion resistance, critical for reliable signal transmission. The right angle orientation and integral positive locking latches provide secure connections with mating headers while saving PCB space.
These connectors belong to the AMP-LATCH System 50 series, designed for compact installations with a high density of contacts. Polarization bars on the housing prevent mis-mating, which helps maintain system integrity in complex assemblies.
The connector supports 500mA current and operates up to 105°C. Shrouded housing made of Liquid Crystal Polymer ensures durability and reliability. IDC termination allows quick, one-step cable assembly without extra tooling.
Gold plating over nickel ensures high electrical performance and corrosion resistance. Right angle orientation with an integral positive locking latch secures connections. Suitable for factory automation, telecommunications, medical, server, and automotive control applications.
Compatible with AMP-LATCH System 50 series for compact, space saving design. Polarization bars prevent mis-mating, ensuring accurate connector alignment. Connector made from copper contact material for efficient conductivity.
Minimum operating temperature -65°C supports extreme condition usage.
Ideal industrial applications include telecommunications equipment, medical devices, automotive control systems, servers, and test and measurement devices. The compact and high density design provides efficient space utilization and reliable connections in demanding environments.
Explore EnvMart’s extensive range of trusted electronic components and connectors for your technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The IDC connector supports a current rating of 500mA.
It operates at a maximum temperature of 105°C.
This model features IDC (Insulation Displacement Contact) termination, allowing for quick, one-step cable assembly without additional tooling.
It has 80 contacts arranged in two rows with a pitch of 1.27mm.
The connector has a voltage rating of 30V AC.
The housing is made of Liquid Crystal Polymer, and the contacts are copper with gold plating over nickel for improved conductivity.
It features a right angle orientation with an integral positive locking latch for secure connections.
It is suitable for factory automation, telecommunications, medical devices, servers, and automotive control applications.
Polarization bars on the housing prevent mis-mating, ensuring accurate connector alignment.
The minimum operating temperature is -65°C, allowing for use in extreme conditions.
Yes, it is compatible with the AMP-LATCH System 50 series for compact, space-saving designs.
This connector is a female connector, designed for cable mounting.
