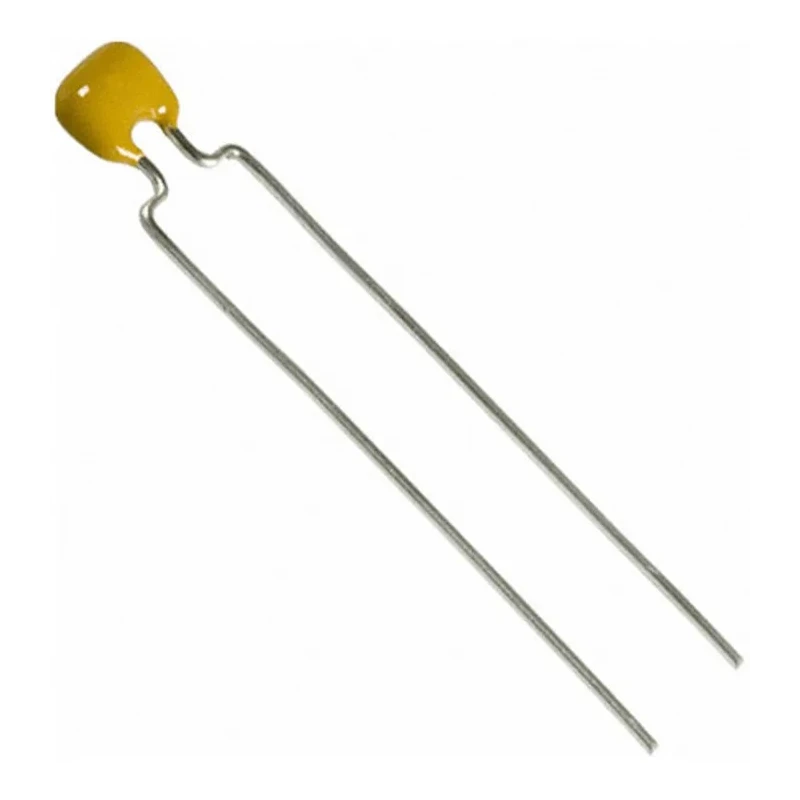

KYOCERA AVX 1 nF Multilayer Ceramic Capacitor, 100V dc, ±5 %, Through Hole Radial SR211A102JAR

KYOCERA AVX SR211A102JAR Multilayer Ceramic Capacitor is designed as a through hole radial leaded ceramic capacitor with a nominal capacitance of 1 nF and voltage rating of 100 V dc. It features a C0G dielectric type known for excellent temperature stability and low loss characteristics, making it ideal for precision electronic applications requiring consistent capacitance over a wide temperature range.

This capacitor belongs to the SR Series from AVX, which is suitable for commodity applications where leaded mounting is preferred over surface mount devices. It can withstand operating temperatures from -55°C up to 125°C and exhibits strong thermal shock and vibration resistance. The radial leads have a spacing of 5 mm and a diameter of 0.51 mm, facilitating reliable wave soldering and mechanical stability in through hole PCB assemblies.

The capacitor is compact in size with a length and height of 5.08 mm each and a width of 3.18 mm, making it suitable for densely packed circuit boards. It is packaged in tape and reel format for automated assembly line processes.

Typical applications include bypass, decoupling, filtering, sample and hold, and timing circuits in industrial, automotive, electronic instrumentation, and consumer electronics sectors. Its C0G dielectric makes it particularly suited for applications requiring minimal capacitance variation with temperature and voltage.

Capacitance value of 1 nF suitable for precision electronic circuits. Voltage rating of 100V dc ensuring reliable performance in low-voltage applications. ±5 % tolerance providing accurate capacitance for critical designs.

Through hole radial termination type for easy wave soldering and robust mounting. Dielectric type C0G ensures excellent temperature stability and low losses. Operating temperature range from -55°C to 125°C for versatile industrial use.

Lead spacing of 5 mm and lead diameter of 0.51 mm suitable for standard PCB layouts. Compact dimensions: 5.08 mm length, 5.08 mm height, and 3.18 mm width for space-efficient designs.
