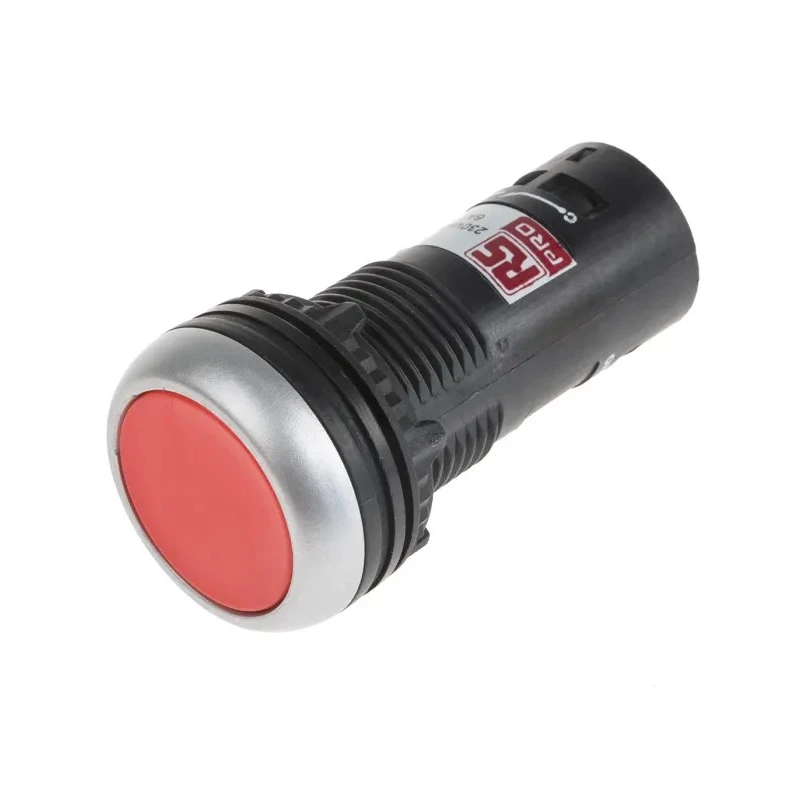

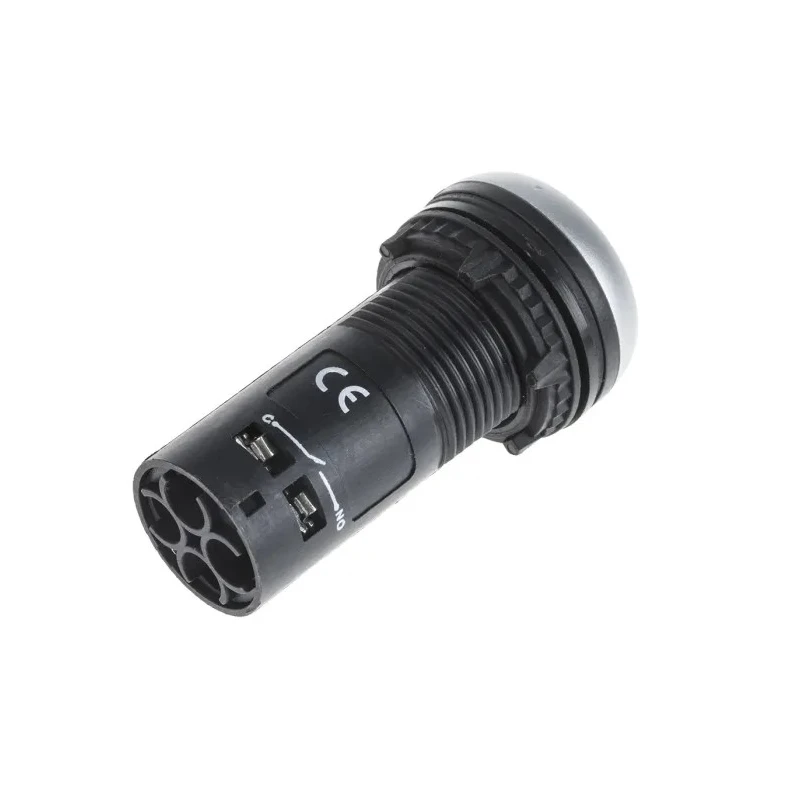

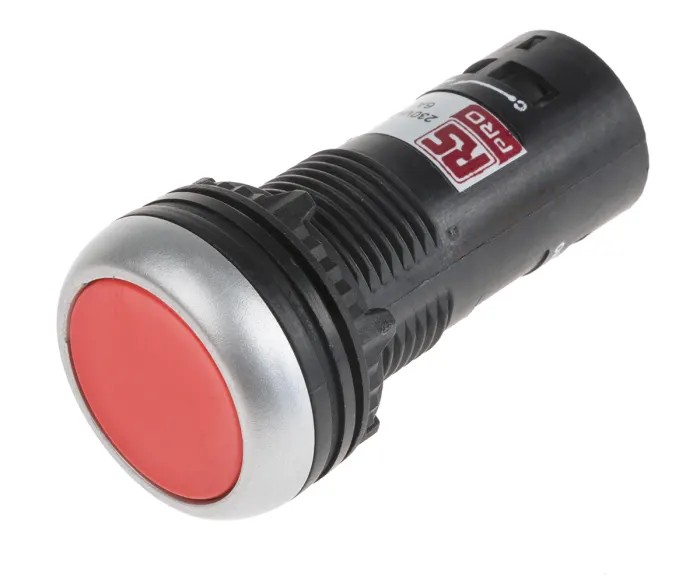

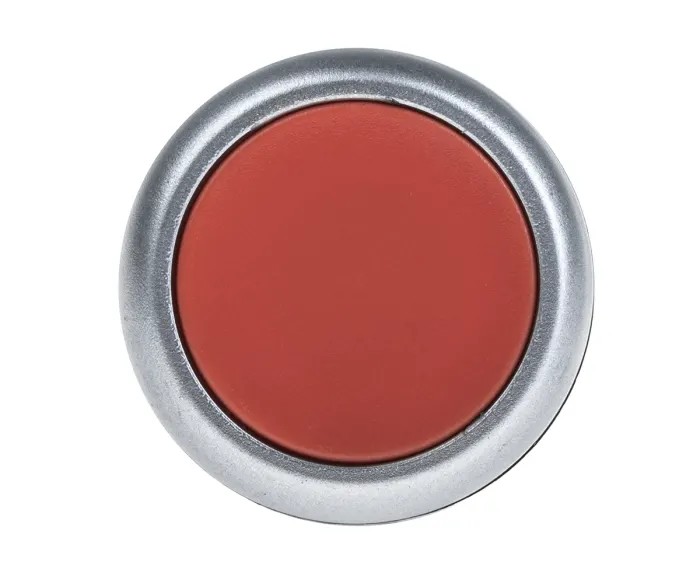

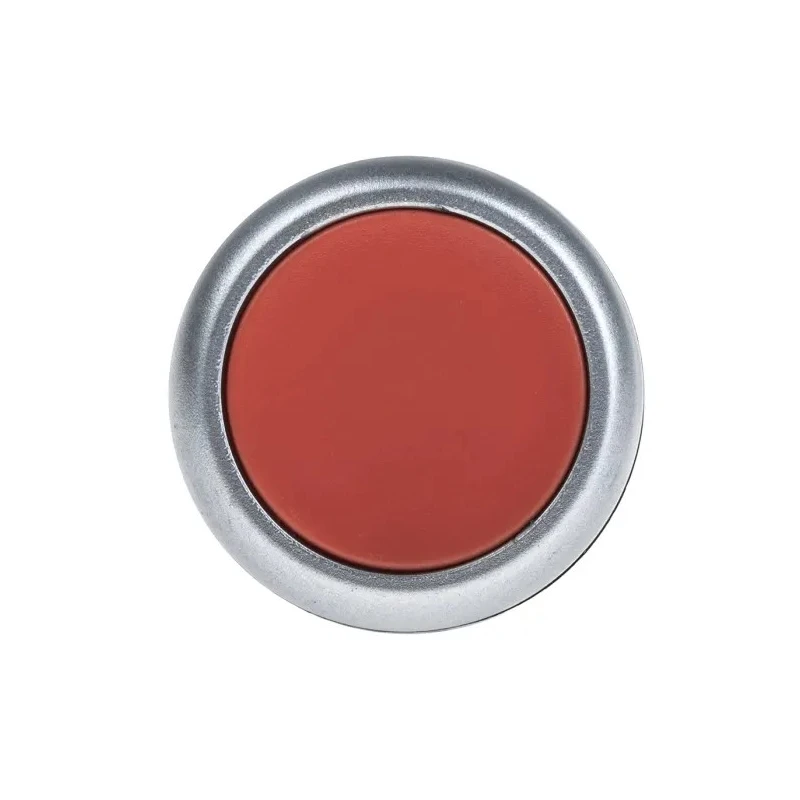

RS PRO Push Button Complete Unit Panel Mount 22 mm Cutout Red 1 NC IP65 230 V 6 A 145-0609

RS PRO 145-0609 Push Button Complete Unit is a red, non-illuminated panel mount push button switch designed for reliable machinery control and automation applications. Featuring a 22 mm diameter cutout, this momentary push button ensures quick and responsive actuation with a spring return mechanism.

Constructed with durable plastic material for both the body and the push button, it offers excellent resistance to mechanical wear and environmental exposure. Rated IP65, the device is protected against dust ingress and water jets, making it suitable for demanding industrial environments.

The push button has a single normally closed (1 NC) contact configuration with screw terminals for secure and easy wiring. It supports a maximum AC voltage of 230 V and a current rating of 6 A, making it versatile for various control circuits.

Operating reliably across temperatures from -25°C to 65°C, the switch is ideal for both indoor and outdoor panel mount installations. Its round, flush design promotes easy identification and operation. The product also complies with key international standards including CE, RoHS, and cULus, ensuring compliance with safety and quality requirements.

Typical applications include industrial machinery control, automation systems, and commercial equipment requiring robust and responsive push button operation. Manufactured in India, this RS PRO push button unit delivers consistent performance and durability in demanding electrical and automation installations.

This push button has a 22 mm cutout diameter suitable for standard panel mounting. The contact configuration is 1 normally closed (NC) contact, ensuring reliable switching. Constructed with a durable plastic body and push button material for longevity.

Rated IP65, it provides protection against dust and low-pressure water jets. Supports maximum AC voltage of 230 V and current of 6 A for versatile electrical applications. Equipped with screw terminal type for secure wiring connections.

Operates reliably from -25°C to 65°C, suitable for various environments. Designed with a round, flush push button style for easy actuation and high visibility. Complies with CE, RoHS, and cULus standards ensuring safety and quality.

Manufactured in India with a plastic body ensuring lightweight and robust design. Explore the range of RS PRO push button switches and control components in the EnvMart catalog for industrial and automation needs.
