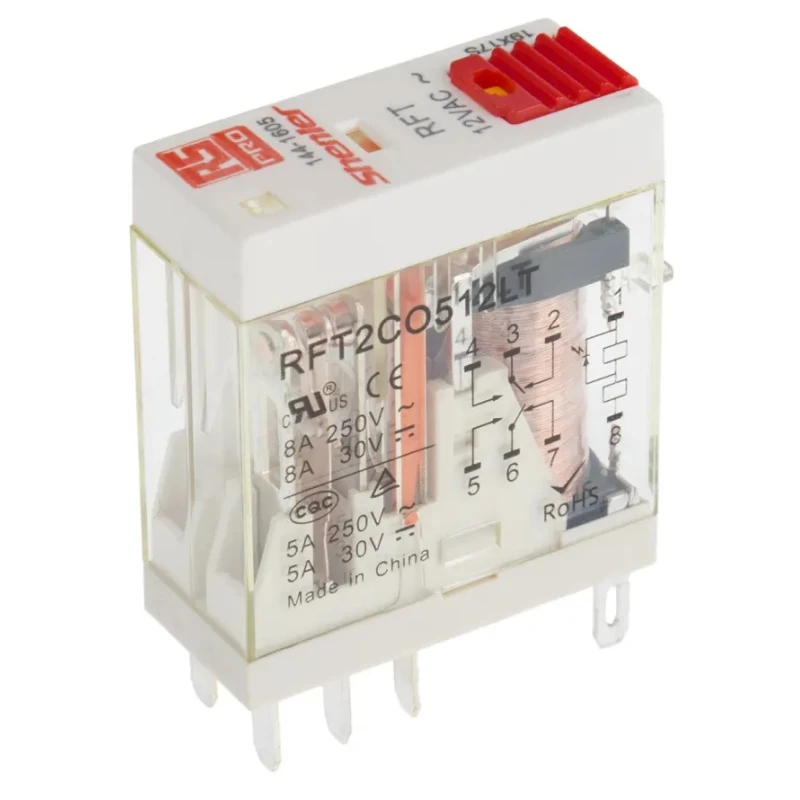

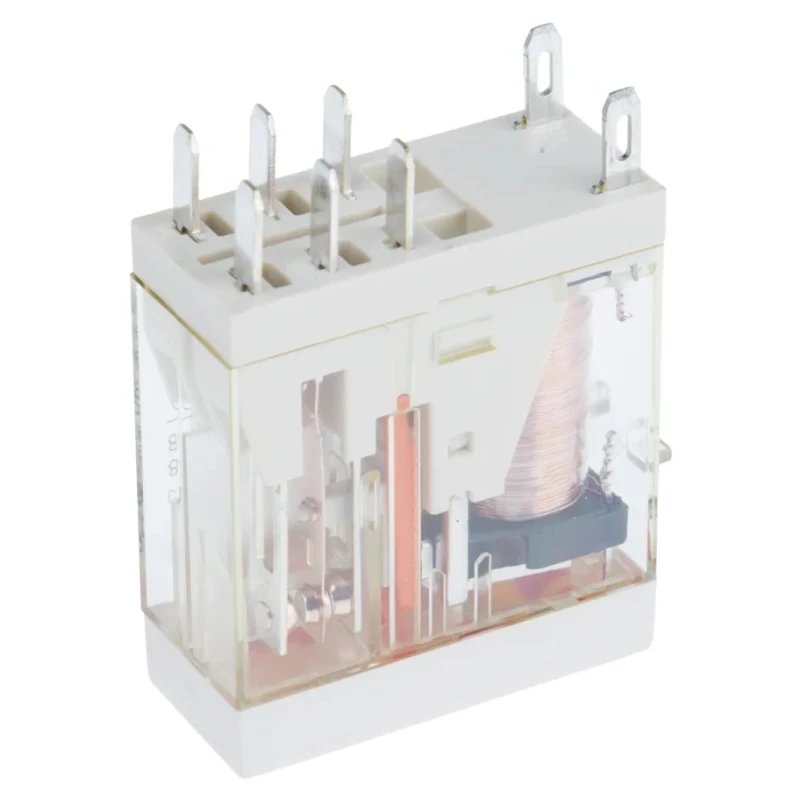

RS PRO Power Relay, 12V AC Coil, 8A Switching Current, DPDT Configuration, PCB Pin Terminals 144-1605
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 28mm |
| Length | 29mm |
| Model | 144-1605 |
| Width | 12.6mm |
| Contact Material | Silver Alloy |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 63Ω |
| Coil Voltage | 12V ac |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 530mW |
Key Features
- Compact design with dimensions 29mm length, 28mm height, and 12.6mm width.
- Silver alloy contacts ensure low contact resistance of 50mΩ for efficient switching.
- Coil resistance is 63Ω with coil power consumption of 530mW.
- Operating temperature range from -40°C to 55°C for broad environment compatibility.
- Switching capability of 3kVA power with DC voltage max 30V and AC voltage max 250V.
- PCB pin terminals for secure and easy circuit board mounting.
- Compliant with RoHS standards for environmental safety.
- Made in China with robust construction for long-term industrial use.
Product Description
RS PRO 144-1605 power relay features a 12V AC coil and DPDT (Double Pole Double Throw) contact configuration, supporting an 8A switching current. Designed to deliver high reliability and performance, this relay is ideal for industrial, automation, HVAC, and machine building applications.
The relay's compact dimensions (29mm length, 28mm height, and 12.6mm width) allow installation in limited spaces, with silver alloy contacts offering low 50mΩ contact resistance for efficient operation.
It consumes low coil power (530mW) with a coil resistance of 63Ω, ensuring energy efficiency. The relay supports switching power of up to 3kVA with a maximum DC voltage of 30V and AC voltage up to 250V.
Operating reliably within a temperature range from -40°C to 55°C, it uses PCB pin terminals for secure attachment to printed circuit boards. RoHS compliance confirms environmentally safe manufacturing standards.
This product is made in China and is part of the RS PRO series of power relays designed for industrial automation and electrical systems requiring dependable switching solutions. Compact relay with 12V AC coil and DPDT contact configuration.
Supports 8A switching current and 3kVA switching power. Silver alloy contacts with 50mΩ contact resistance for high reliability. Wide operating temperature range from -40°C to 55°C. PCB pin terminals for easy circuit integration.
Low coil power consumption of 530mW with 63Ω coil resistance. Complies with RoHS environmental standards. Ideal for industrial automation, HVAC, and electrical system applications. Explore more high-quality relays and electronic components in the Power Relays category at EnvMart for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This power relay supports a switching current of 8A.
The coil voltage for this relay is 12V AC.
The relay has dimensions of 29mm in length, 28mm in height, and 12.6mm in width.
This model features a DPDT (Double Pole Double Throw) contact configuration.
It can switch a maximum AC voltage of 250V and a maximum DC voltage of 30V.
The contacts are made of silver alloy, which ensures low contact resistance.
This relay has a contact resistance of 50mΩ.
The coil power consumption is 530mW.
The operating temperature range is from -40°C to 55°C.
It uses PCB pin terminals for secure and easy mounting to printed circuit boards.
Yes, this relay complies with RoHS standards for environmental safety.
This product is made in China.
