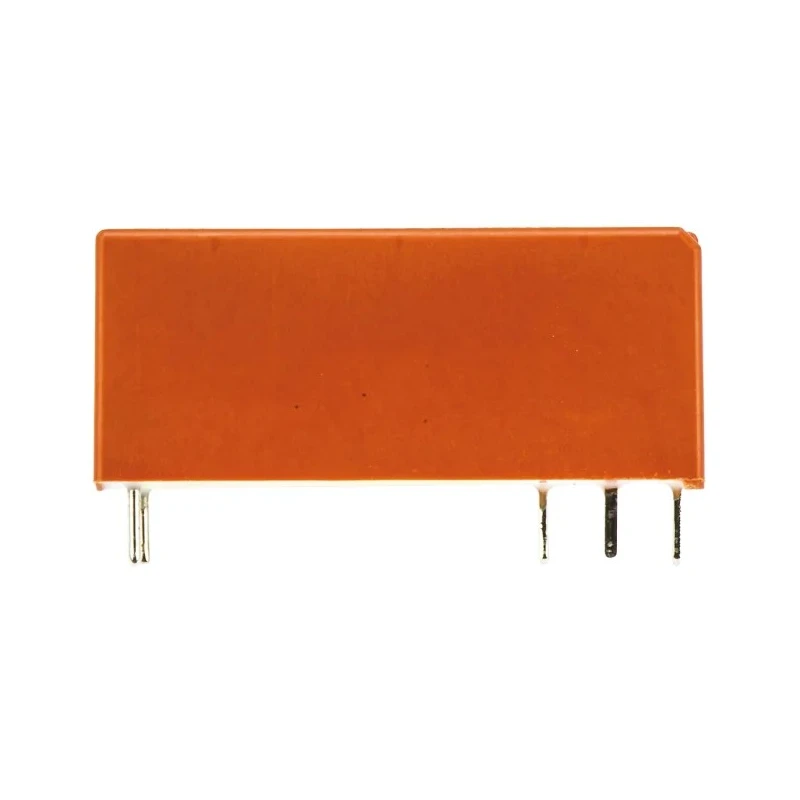

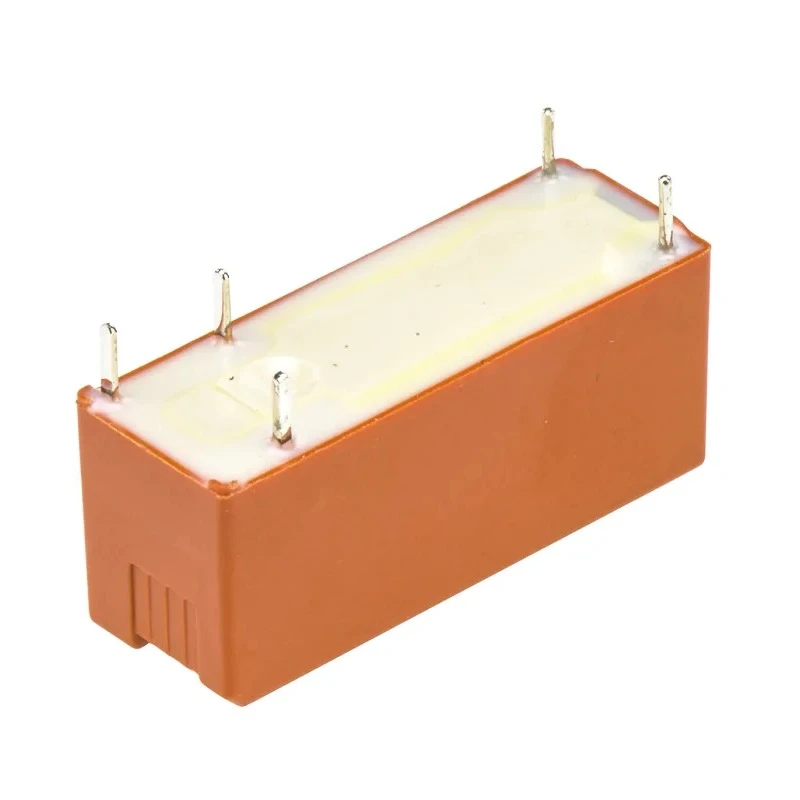

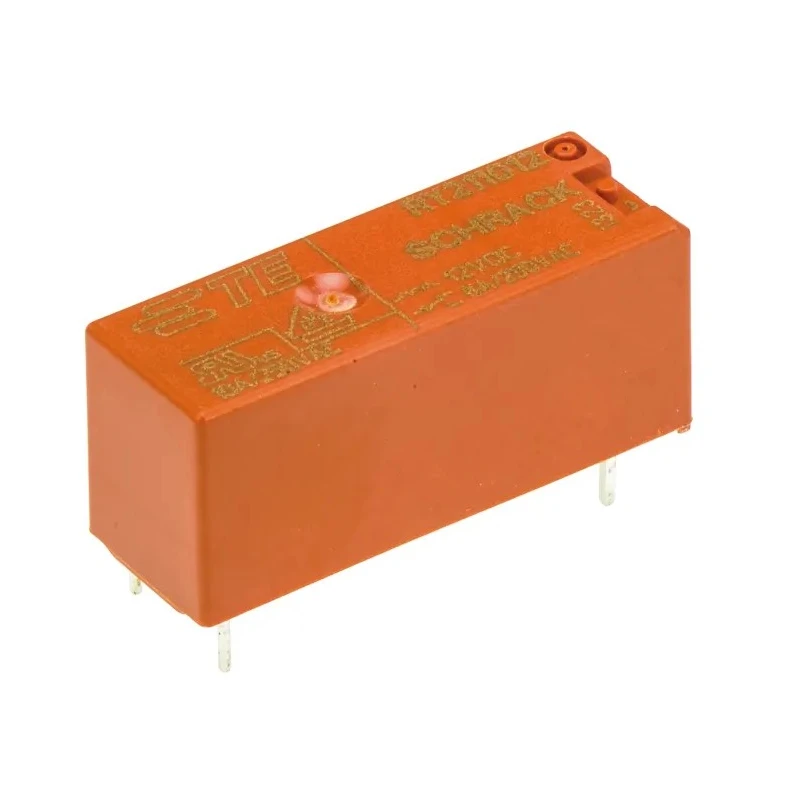

TE Connectivity PCB Power Relay 12V DC Coil 8A Switching Current SPDT RY211012
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -40 to + 70°C |
| Dimensions | H 12.3mm, W 28.5mm, D 10mm |
| Height | 12.3mm |
| Length | 28.5mm |
| Model | RY211012 |
| Width | 10.1mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RY II |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 627Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
| Creepage and clearance | 8mm |
Key Features
- Operates with a 12V DC coil voltage ensuring consistent power relay activation.
- Supports an 8A switching current suitable for moderate power applications.
- SPDT (Single Pole Double Throw) contact configuration provides versatile switching options.
- Designed for PCB mounting with solder terminal types enabling easy assembly.
- Compact dimensions of 28.5mm length, 10.1mm width, and 12.3mm height optimize PCB space utilization.
- Coil resistance is 627 ohms offering efficient energy consumption with 250mW coil power.
- Wide operating temperature range from -40°C to 70°C for robust performance in varied environments.
- Switching AC voltage capability up to 400V AC and switching power of 2 kVA for industrial uses.
Product Description
TE Connectivity RY211012 is a highly reliable PCB Power Relay featuring a 12V DC coil and an 8A switching current with SPDT contact configuration. This relay offers an optimal solution for controlling electrical loads on printed circuit boards in industrial, commercial, and automation applications.
Designed as part of the RY II series, this relay ensures secure and efficient switching with its solder-type terminals, simplifying PCB integration. Its compact size (28.5mm length, 10.1mm width, and 12.3mm height) allows for dense layouts without sacrificing performance.
The relay coil's resistance of 627 ohms and coil power of 250mW contribute to low power consumption and precise actuation at 12V DC voltage. The unit performs reliably within a broad operating temperature range from -40°C to 70°C, suited for harsh environments.
It supports switching AC voltages up to 400V AC and 2 kVA of switching power, making it appropriate for various industrial load control scenarios. The relay's contacts use silver alloy material which guarantees excellent conductivity and longevity, ensuring durability in demanding applications.
Operates with a 12V DC coil voltage ensuring consistent power relay activation. Supports an 8A switching current suitable for moderate power applications. SPDT (Single Pole Double Throw) contact configuration provides versatile switching options.
Designed for PCB mounting with solder terminal types enabling easy assembly. Compact dimensions optimize PCB space utilization. Efficient coil resistance and power rating for low energy consumption. Wide temperature operation for industrial environments.
High switching voltage and power for diverse electrical loads. Silver alloy contacts for enhanced conductivity and durability. Safety-compliant creepage and clearance distance of 8mm.
The RY211012 relay complies with IEC 60335-1, RoHS, and VDE standards and is manufactured in the Czech Republic. Its combination of durability, precision, and compact form factor makes it ideal for electrical automation, industrial machinery, control systems, and other electronic applications requiring reliable power switching.
Explore more from the TE Connectivity range at EnvMart for quality Power Relays and related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a 12V DC coil voltage, ensuring consistent activation.
It supports a maximum switching current of 8A, making it suitable for moderate power applications.
This model features a Single Pole Double Throw (SPDT) contact configuration, providing versatile switching options.
The relay has compact dimensions of 28.5mm in length, 10.1mm in width, and 12.3mm in height.
The coil resistance is 627 ohms, contributing to efficient energy consumption with a coil power of 250mW.
It can switch AC voltages up to 400V AC, making it suitable for various industrial applications.
The relay operates reliably within a temperature range of -40°C to +70°C.
This model is designed for PCB mounting and features solder-type terminals for easy assembly.
The contacts are made from silver alloy, which ensures excellent conductivity and longevity.
It complies with IEC 60335-1, RoHS, and VDE standards, ensuring safety and reliability.
The TE Connectivity RY211012 relay is manufactured in the Czech Republic.
It has a switching power capability of up to 2 kVA, suitable for controlling various electrical loads.
