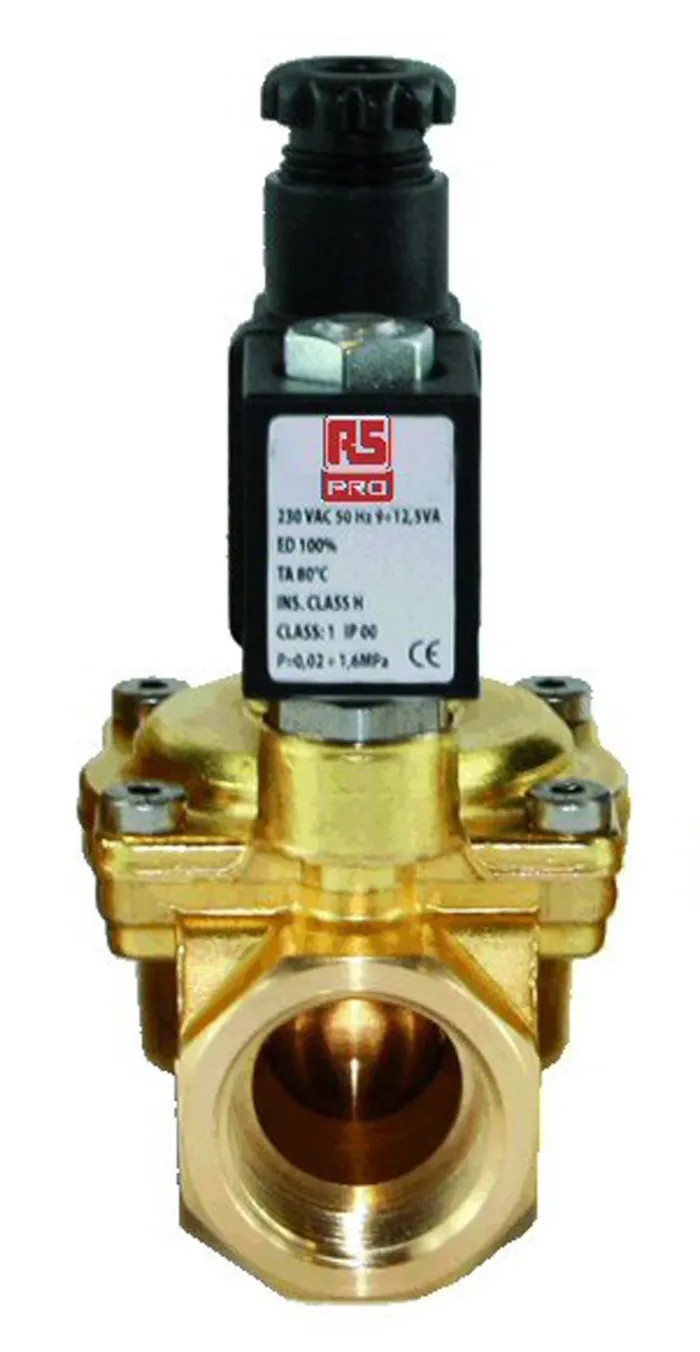

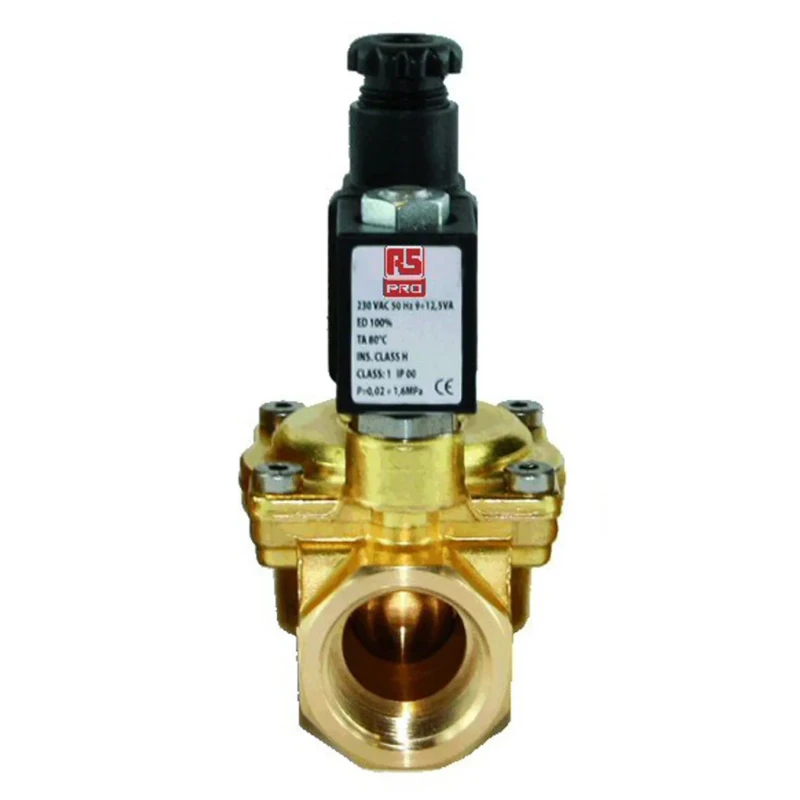

RS PRO Solenoid Valve, 2 Port, Normally Open, G3/4 Inch BSP, 220V AC, Brass Body, 15 bar, 90°C 144-0814

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Solenoid Valve, 2 Port, Normally Open, G3/4 Inch BSP, 220V AC, Brass Body, 15 bar, 90°C 144-0814

Name: RS PRO Solenoid Valve, 2 Port, Normally Open, G3/4 Inch BSP, 220V AC, Brass Body, 15 bar, 90°C 144-0814
Brand: RS PRO
SKU: 209856
Price: 196.71 USD
Availability: InStock



Category Solenoid Valve Brand RS PRO Condition New

Specifications

Country of Origin	Italy
Brand	RS PRO
Body Material	Brass
Maximum Operating Pressure	15 bar
Outlet Connection Type	BSP
Model	144-0814
Series	RS PRO
Number Of Ports	2
Maximum Operating Temperature	90°C
Minimum Operating Temperature	-20°C
Supply Voltage	220V ac
Standards/Approvals	VDE
Inlet Port Size	G3/4
Inlet Thread Standard	BSP
Flow Factor Kv	5m³/h

Key Features

Constructed of forged brass for durability and corrosion resistance.
Pilot operated 2-way valve design suitable for industrial fluid control.
Operates at 220V AC voltage with a maximum pressure rating of 15 bar.
Capable of handling temperatures from -20°C to 90°C for versatile usage.
Features BSP inlet and outlet connections at G3/4 size standards.
Valve default position is Normally Open (NO) for application flexibility.
Includes servo assist technology for improved valve actuation.
Approved to VDE standards ensuring reliability in industrial environments.

Product Description

RS PRO 144-0814 Solenoid Valve is a 2 port, pilot operated valve with a Normally Open (NO) configuration. It features a robust forged brass body designed to withstand pressures up to 15 bar and temperatures from -20°C to 90°C, making it suitable for a wide range of industrial and commercial fluid control applications. The valve operates on 220V AC supply voltage with BSP standard thread connections sized G3/4 at both inlet and outlet, ensuring compatibility with common piping systems.

This solenoid valve’s pilot operated mechanism allows effective control of liquid and gas flow. The inclusion of servo assist technology enhances valve response for precision control in demanding environments. The product is VDE approved, affirming its adherence to recognized safety and performance standards.

Typical industrial use cases include integration into autoclaves for sterilization processes, cooling plants for thermal management, watering plant automation, fire extinguishing systems operation, hygienic and sanitary applications, and water jet machinery control. The valve body material and construction provide excellent durability and reliability under varied operating conditions.

RS PRO is a well-regarded brand known for high-quality industrial valves suitable for fluid power and mechanical systems. This model 144-0814 Solenoid Valve exemplifies a versatile, reliable solution for controlling fluids within industrial pipelines and equipment.

Constructed of forged brass for durability and corrosion resistance. Pilot operated 2-way valve design suitable for industrial fluid control. Operates at 220V AC voltage with a maximum pressure rating of 15 bar. Capable of handling temperatures from -20°C to 90°C for versatile usage.

Features BSP inlet and outlet connections at G3/4 size standards. Valve default position is Normally Open (NO) for application flexibility. Includes servo assist technology for improved valve actuation. Approved to VDE standards ensuring reliability in industrial environments.

Ideal for applications such as autoclaves, cooling plants, fire extinguishing systems and water jet machinery. Explore a wide range of industrial valves and fluid control products at EnvMart for quality, reliability, and performance assurance.
