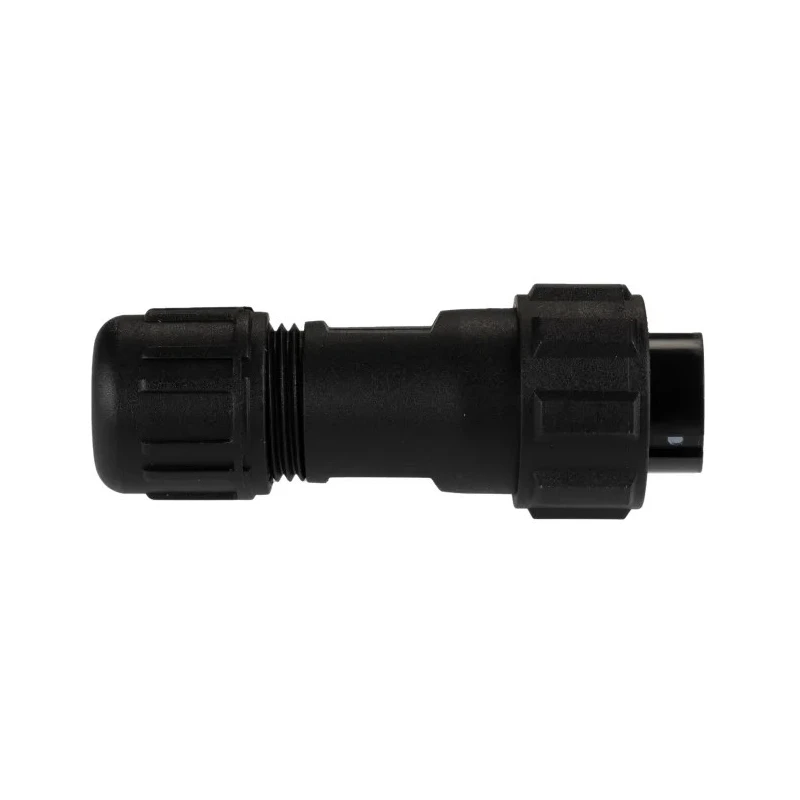

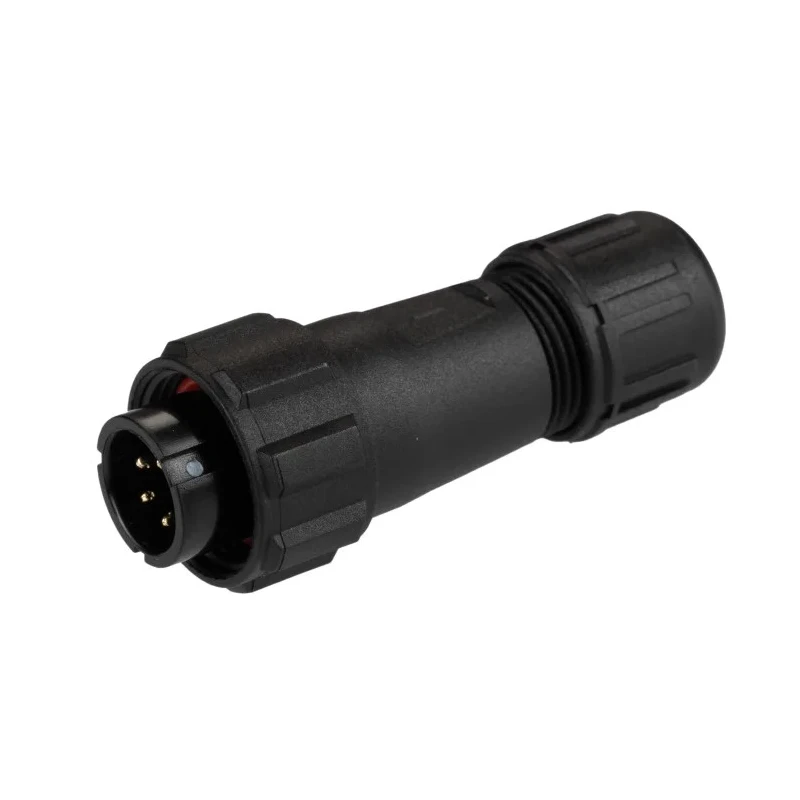

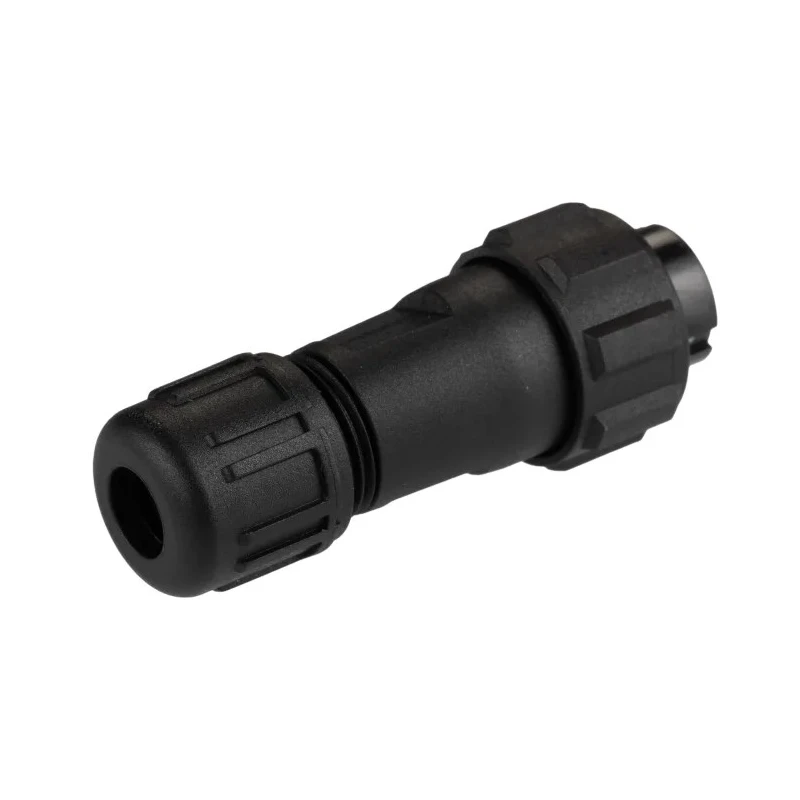

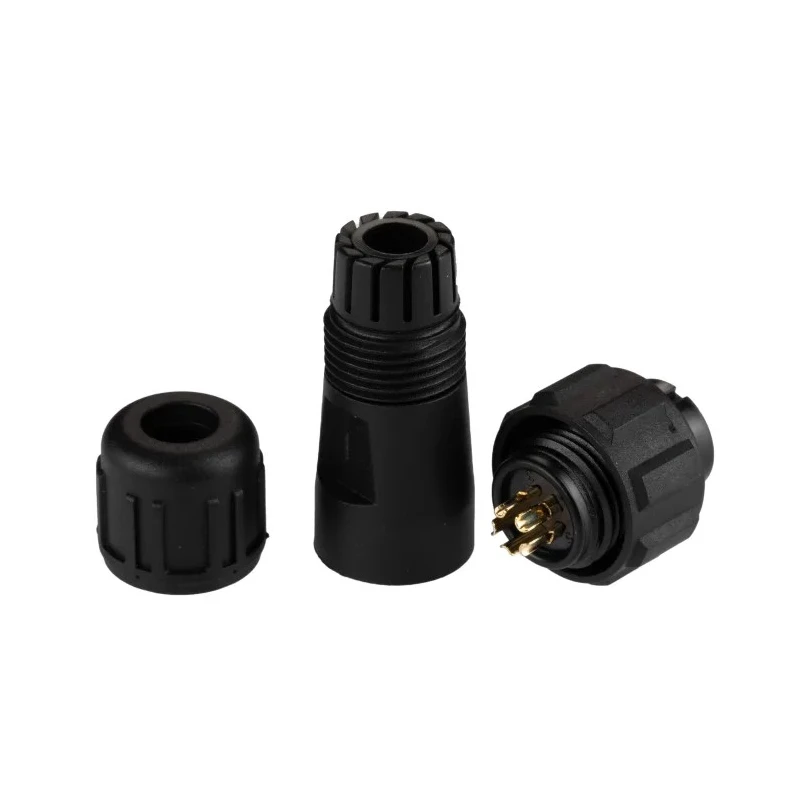

RS PRO Circular Connector, 5 Contacts, Cable Mounting, Miniature Size, Male Plug, Threaded Mating, IP68 Rated 144-0610

RS PRO 144-0610 Circular Connector is a high-quality cable-mounted miniature circular connector featuring 5 male contacts. It is designed for industrial applications needing robust connections with environmental protection and electrical performance.

The connector operates at 180V with a current rating of 5A and uses a threaded mating type to ensure secure coupling. The body is made from resilient polyamide 66 and polycarbonate, offering excellent mechanical strength and durability under impact.

Its IP68 rating guarantees waterproof and dustproof performance, allowing operation underwater up to one meter for more than 30 minutes, making it ideal for outdoor security systems, marine equipment, and harsh industrial environments.

The contact material is brass with gold plating, ensuring reliable conductivity and corrosion resistance. It is designed for solder termination and has a straight orientation with five contact positions in the pole format.

Operating temperatures range from -40°C to +85°C, suitable for wide industrial conditions. The male plug configuration supports both cable-to-cable and cable-to-panel connections, offering versatility in system design.

This RS PRO connector series provides a robust and reliable solution for demanding applications requiring secure, high-performance circular connections. The connector features a threaded mating type for secure connections.

It supports a current rating of 5A at 180V voltage. Housing is constructed from durable polyamide 66 and polycarbonate materials. Contacts are made of brass with gold plating for enhanced conductivity and corrosion resistance.

The connector is rated IP68 for underwater use up to 1 meter for over 30 minutes. Operating temperature range spans from -40°C to +85°C for versatile deployment. Termination is by soldering, suitable for reliable cable connections.

Orientation is straight with a pole format of 5 contact positions. Male (plug) gender contact design supports cable-to-cable or cable-to-panel connections. Designed for industrial environments requiring high impact resistance and environmental sealing.
