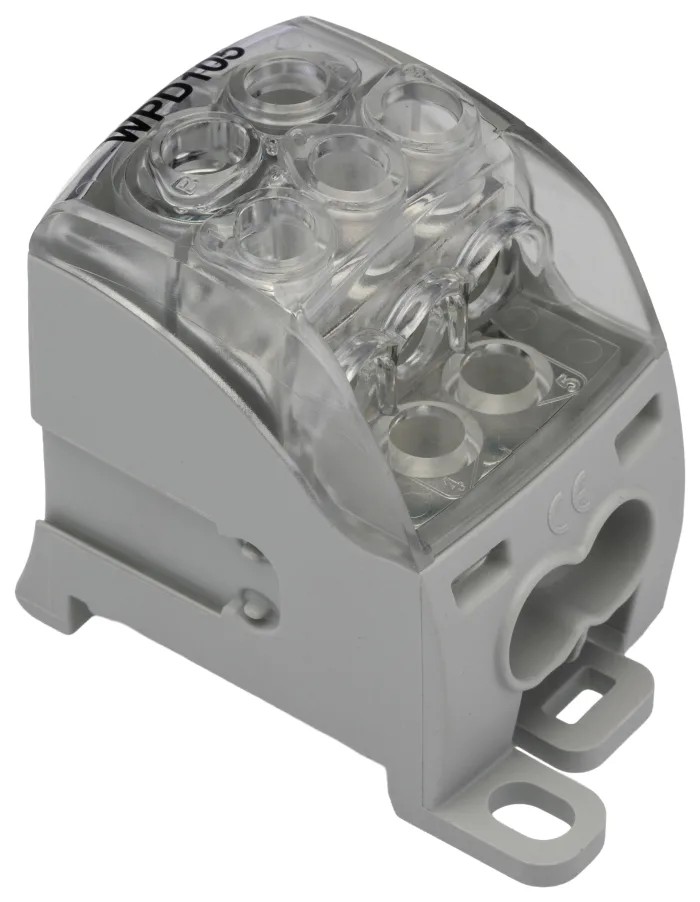

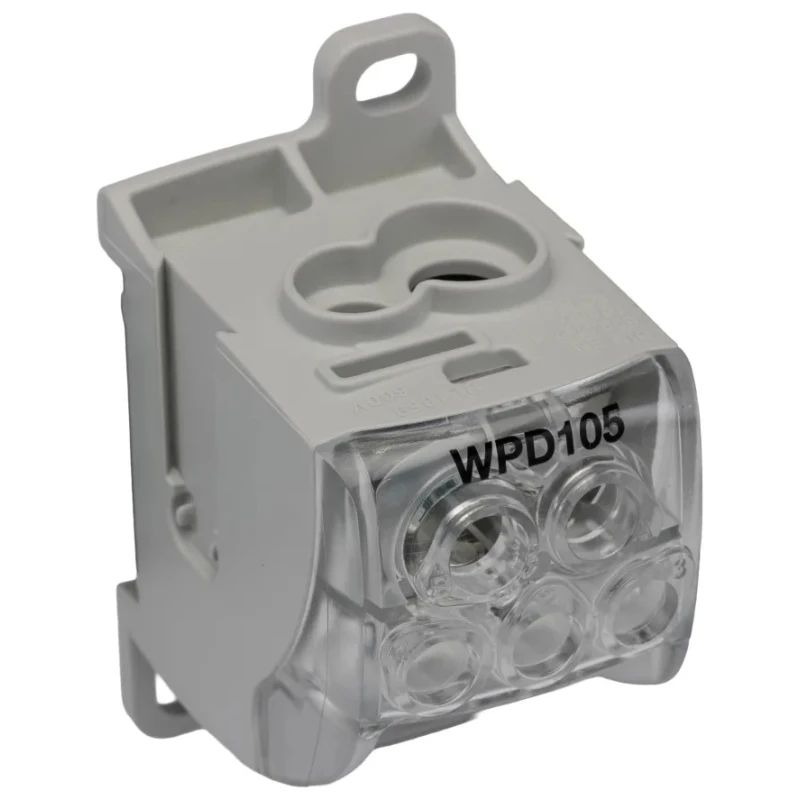

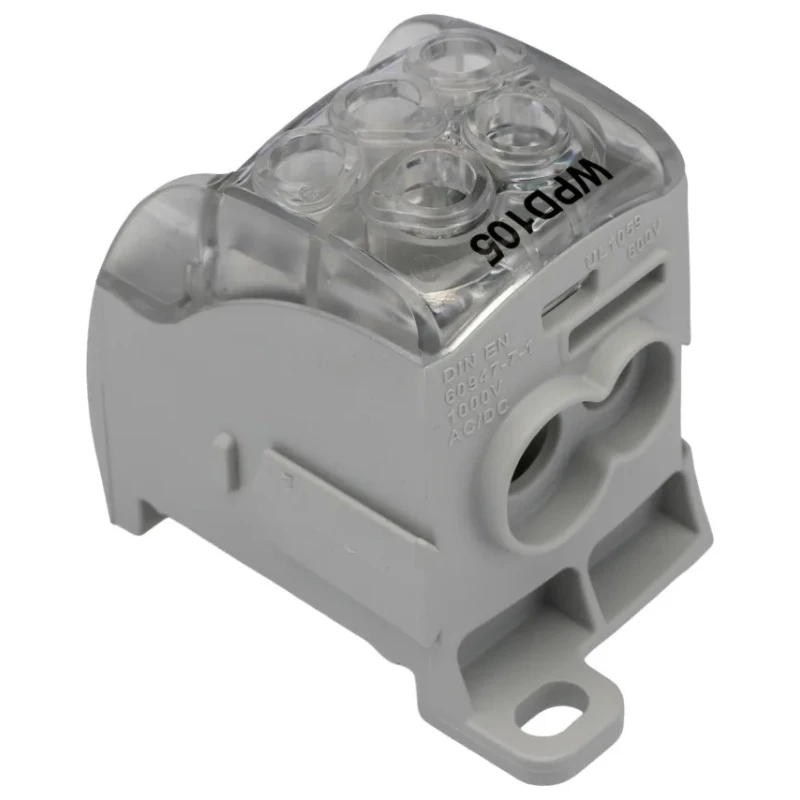

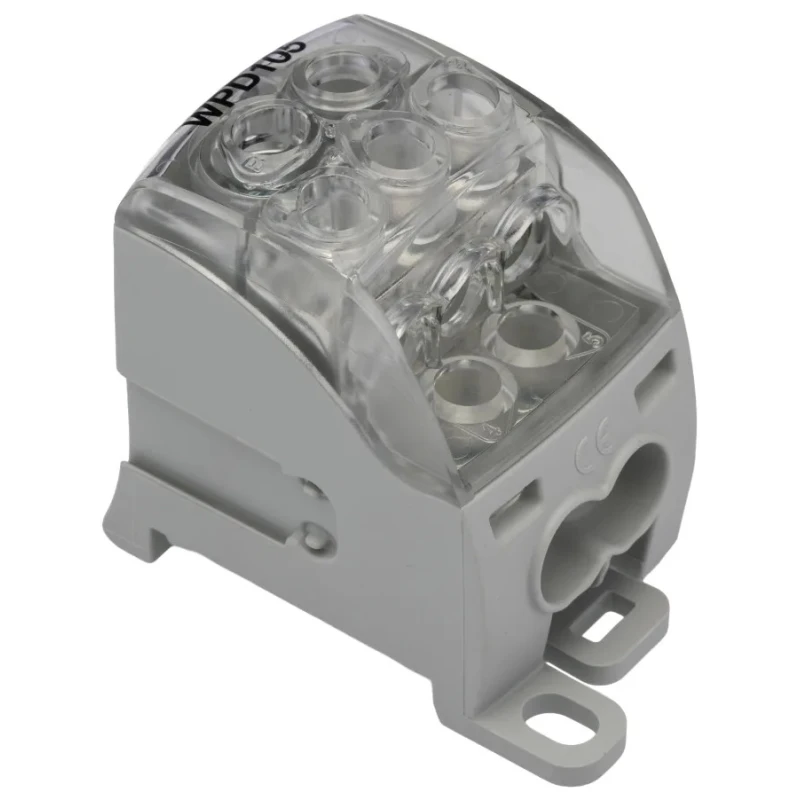

Weidmüller Distribution Block 5 Way 1 kV AC 1 kV DC 125A Current Wemid Housing Grey 1562170000

The Weidmüller 1562170000 Distribution Block is a 5-way terminal block designed to safely distribute electrical current with a rating of 125A. It operates efficiently at voltages of 1 kV AC and 1 kV DC, making it ideal for both alternating and direct current applications in industrial and commercial settings. Its durable Wemid housing provides excellent insulation, reducing the risk of electrical hazards while maintaining mechanical robustness.

This distribution block accommodates wire sizes ranging from 12 to 2 AWG, enabling connections for a variety of cable sizes commonly used in heavy-duty electrical equipment. Both the line and load sides employ screw termination for secure, reliable cable connections, facilitating maintenance and modifications when necessary.

Compact external dimensions - 37.1 mm in length, 53.7 mm width, and 70 mm height - allow for installation in tight spaces within control panels or electrical enclosures. It is capable of withstanding operating temperatures from -50°C up to 130°C, ensuring dependable performance in harsh environments.

Mounting is straightforward by snapping onto a standard TS 35 DIN rail, avoiding the need for complex installation tools. The product’s grey color and W series classification align with industry standards.

Typical applications for this distribution block include HVAC systems, conveyor controls, telecommunications infrastructure, automotive electrical systems, and utility power distribution setups. Its versatile configuration supports both small- and large-scale electrical distribution needs efficiently.

Features a Wemid housing for superior insulation and durability. Supports wire sizes from 12 to 2 AWG for versatile cable connections. Screw termination type on both line and load sides ensures secure cable hold. Compact size with dimensions 37.1 mm length, 53.7 mm width, and 70 mm height.

Operational temperature range from -50°C to 130°C for demanding environments. Designed for easy mounting on standard TS 35 DIN rails without specialized tools. Suitable for applications including HVAC systems, conveyors, telecommunications, and automotive engineering.

Choose Weidmüller distribution blocks for reliable power sharing and neat electrical system setups. Browse more in the Distribution Blocks category at EnvMart for advanced industrial connectors and components.
