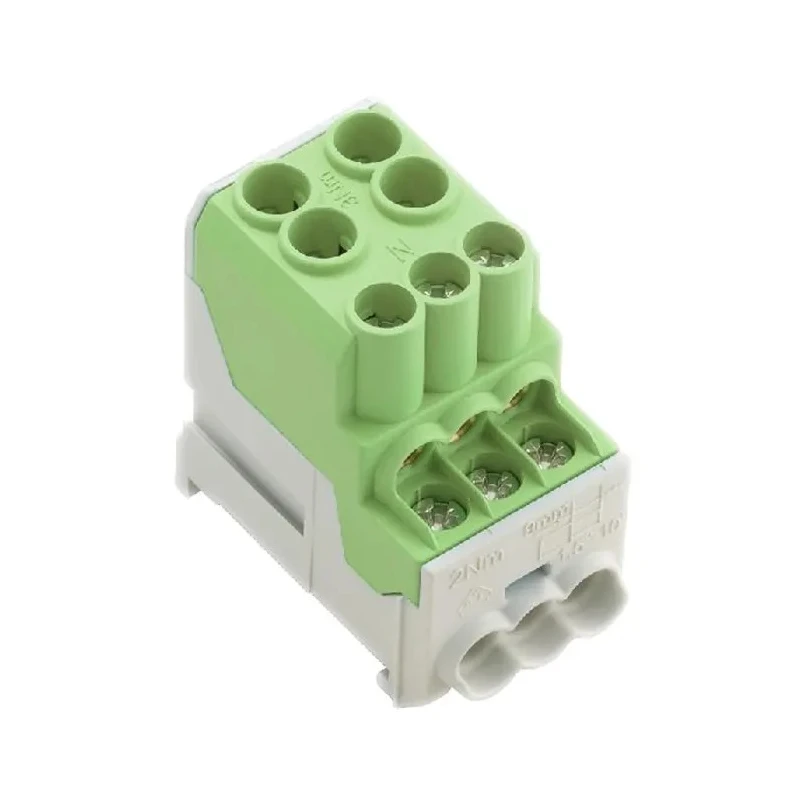

Weidmüller Distribution Block 6 Way Green, 690 V AC/DC, 100A, Wemid Housing 1561930000

Weidmüller 1561930000 Distribution Block 6 Way Green is a high-quality terminal distribution block designed for industrial and electrical power distribution applications. The block features a Wemid housing material that offers increased safety and durable performance. It is suitable for mounting on symmetric 'Top Hat' DIN rails according to BS5584:1978 and EN 50022 standards, facilitating straightforward installation in electrical cabinets or distribution panels.

The device supports a nominal current of 100 Amperes and can handle both AC and DC voltages up to 690 Volts, making it versatile for various load configurations and power systems. Its six-way design allows efficient distribution of power from a single feed to multiple circuits or consumers, improving wiring management and system organization.

Wemid is a nylon 6.6 based material with excellent thermal resistance, supporting continuous operating temperatures up to 120°C and short-term load up to 180°C, while the distribution block itself supports ambient temperatures ranging from -50°C minimum to 130°C maximum. The screw termination on both line and load sides ensures a secure and reliable electrical connection, critical for industrial and commercial electrical installations.

The green color coding aids in easy identification and organization within complex electrical systems. Its compact dimensions (55.4 mm height, 30.2 mm length, and 49 mm width) allow efficient space usage in distribution boards or assembly panels. The copper current bars are electrolytically processed to support currents beyond the nominal rating, enhancing reliability and performance under load.

This distribution block is free from harmful substances like cadmium and halogen, supporting environmental compliance and safer handling. Designed with user safety in mind, it is touch-proof in accordance with BS 3042, ensuring protection against accidental contact with live terminals.

Typical applications include industrial power distribution, machinery electrical wiring, switchgear construction, and control panel assemblies in manufacturing, construction, and infrastructure industries.

The distribution block has 6 ways allowing multiple connections. It operates with a voltage of 690 V AC and DC. The block supports a current rating of 100 Amperes. Constructed with Wemid housing material for durability and safety.

Features screw termination on both line side and load side for secure connections. Operating temperature range extends from -50°C to 130°C. Designed for mounting on symmetric ‘Top Hat’ DIN Rail (BS5584:1978, EN 50022). Colour coded green for easy identification in electrical panels.

Dimensions are approximately 55.4 mm height, 30.2 mm length, and 49 mm width. Complies with safety standards and is free from cadmium and halogen substances. Explore more high-quality Distribution Blocks and electrical components from Weidmüller in EnvMart's Electronics & Electricals category.
