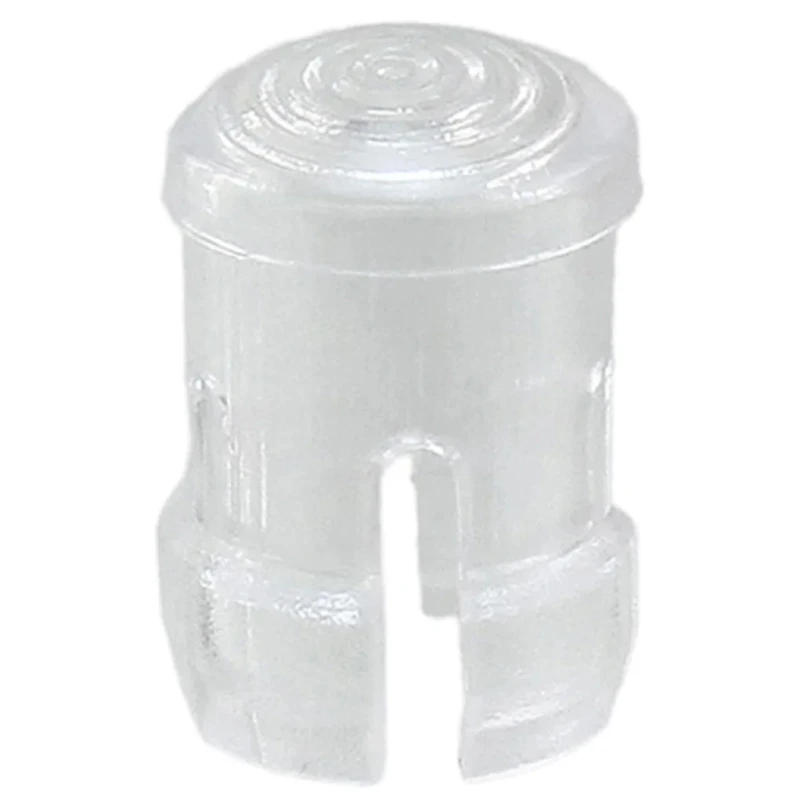

VCC SMB 200 Series 1-Way LED Lens Polycarbonate Fresnel Round Lens 7.83mm Diameter SMB_200_CTP

Free Delivery in India | Lowest Global Shipping Charges

VCC SMB 200 Series 1-Way LED Lens Polycarbonate Fresnel Round Lens 7.83mm Diameter SMB_200_CTP



Category LED Lens Brand VCC Condition New

Specifications

Country of Origin	India
Diameter	7.83mm
Brand	VCC
Height	7.37mm
Length	7.37mm
Model	SMB_200_CTP
Width	7.11mm
Series	SMB_200
Lens Material	Polycarbonate
For Use With	LED
Lens Type	Fresnel Lens
Lens Shape	Round
Lens Style	Fresnel
Fixing Method	Snap-in
Number of LEDs Per Lens	1

Key Features

The polycarbonate lens is clear with high mechanical protection.
Snap-in fixing method for easy installation on panels.
Lens diameter measures 7.83 mm, suitable for 3 mm LEDs.
Panel thickness compatibility ranges from 1.6 to 3.2 mm.
Low profile design with 1.5 mm projection from panel surface.
The Fresnel lens offers a wide angle of view for LED lighting applications.
Suitable for electronics, lighting components, and optoelectronics uses.
Durable polycarbonate material compliant to UL 94-V0 standard.

Product Description

The VCC SMB_200_CTP is a 1-Way LED lens from the SMB 200 Series designed for use with T1 (3 mm) LEDs, offering high performance in LED lighting and display applications.

This lens features a round Fresnel design that provides a wide angle of view, enhancing the optical output of the LED by focusing and directing the light efficiently. It is made from polycarbonate material, which is both durable and mechanically protective, ensuring long-lasting reliability in various industrial environments.

The lens uses a snap-in fixing method that simplifies mounting on panels with thicknesses ranging from 1.6 mm to 3.2 mm, making it ideal for a broad range of electronic and lighting assemblies. Its low profile and shallow dome design provide a modest 1.5 mm projection from the panel surface, optimizing space in compact installations.

Precise dimensions include a diameter of 7.83 mm, height and length approximately 7.37 mm, and a width of 7.11 mm. The polycarbonate material used adheres to UL 94-V0 flammability standards, ensuring safety in electrical and lighting applications.

This lens is suitable for industrial, electronic components, LED lighting manufacturing, and optoelectronics use cases where focused and protected LED lighting is required. The polycarbonate lens is clear with high mechanical protection.

Snap-in fixing method for easy installation on panels. Lens diameter measures 7.83 mm, suitable for 3 mm LEDs. Panel thickness compatibility ranges from 1.6 to 3.2 mm. Low profile design with 1.5 mm projection from panel surface.

The Fresnel lens offers a wide angle of view for LED lighting applications. Suitable for electronics, lighting components, and optoelectronics uses. Durable polycarbonate material compliant to UL 94-V0 standard. Lens dimensions: 7.37 mm height and length, 7.11 mm width.
