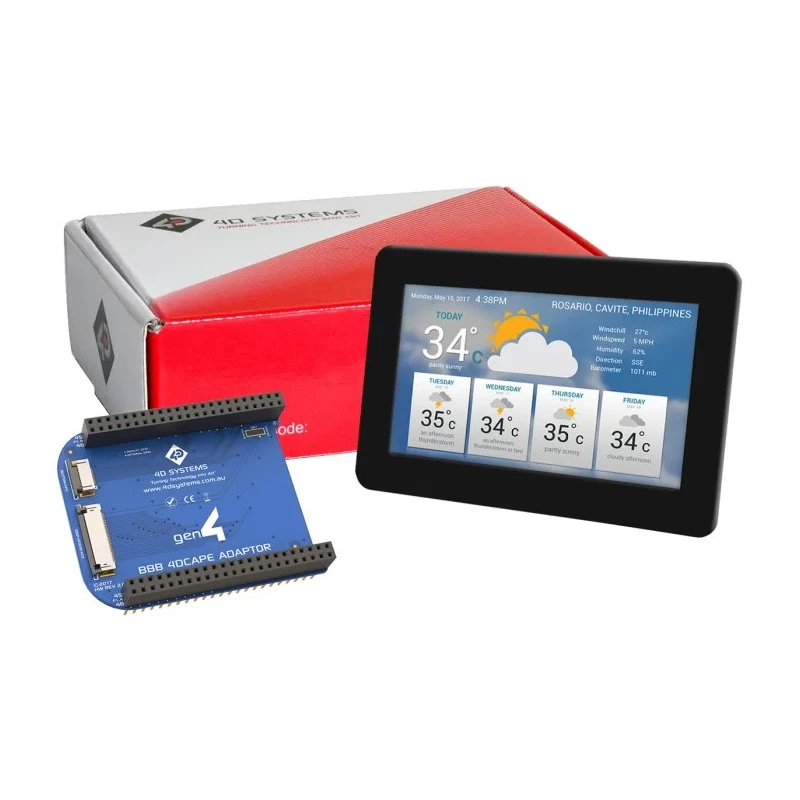

4D Systems 4DCAPE-50CT-CLB LCD Colour Display Touch Screen 5 inch 800x480 Pixel Capacitive Touch UART Interface LED gen4

Free Delivery in India | Lowest Global Shipping Charges

4D Systems 4DCAPE-50CT-CLB LCD Colour Display Touch Screen 5 inch 800x480 Pixel Capacitive Touch UART Interface LED gen4

Name: 4D Systems 4DCAPE-50CT-CLB LCD Colour Display Touch Screen 5 inch 800x480 Pixel Capacitive Touch UART Interface LED gen4
Brand: 4D Systems
SKU: 207935
Price: 122.34 USD
Availability: InStock



Category LCD Colour Displays Brand 4D Systems Condition New

Specifications

Country of Origin	Australia
Display Type	LCD
Brand	4D Systems
Current	720mA
Height	9.4mm
Model	gen4
Depth	64.8mm
Width	93.8mm
Series	gen4
Maximum Operating Temperature	70°C
Brightness	475cd/m²
Minimum Operating Temperature	-20°C
Interface Type	UART
Screen Resolution	800 x 480 pixel
Standards/Approvals	CE
Touch Screen Type	Capacitive
Minimum Supply Voltage	5V dc
Viewing Area Dimensions	108 x 65 mm
Backlight Type	LED
500	1
Diagonal Display Size	5in
Contrast Ratio	500:1
Contrast Ratio500	1

Key Features

This display features a 5 inch diagonal screen with LED backlighting for bright visuals.
Supports 800 x 480 pixel resolution for high-definition color output.
Capacitive touch screen technology enables accurate and responsive touch inputs.
Interface via UART and communicates touch data over I2C via a FocalTech controller.
Includes a cover lens bezel for easy mounting without additional hardware.
Operates at a supply voltage of 5V DC with a current consumption of 720mA.
Viewing area measures 108 x 65 mm, suitable for compact embedded applications.
Operating temperature range is from -20°C to 70°C ensuring robust performance.

Product Description

4D Systems gen4-4DCAPE-50CT-CLB LCD Colour Display Module is a high-quality 5 inch LCD display with capacitive touch designed specifically for integration with the BeagleBone Black development platform. It provides a vibrant 800 x 480 pixel color display with an LED backlight, ensuring clear and bright visuals for embedded and industrial applications.

The display module connects effortlessly to BeagleBone Black via the included 4DCAPE adaptor and a 30-way flat-flex cable, drawing power and video signals directly from the main board without any additional wiring. The capacitive touch controller features a FocalTech chipset, enabling precise touch input communication over I2C, ideal for interactive user interfaces.

This model includes a pre-installed cover lens bezel which facilitates mounting without additional hardware and secures the display using adhesive, making it convenient for prototyping and production environments. Its viewing area measures 108 x 65 mm, optimized for compact embedded systems.

Designed to operate within a temperature range from -20°C to 70°C, this LCD module suits diverse industrial, laboratory, and commercial applications. It also addresses regulatory demands with CE and RoHS compliance, reflecting its adherence to safety and environmental standards.

The package content includes one gen4 4DCAPE LCD Module, one gen4 4DCAPE adaptor, and one 30-way FFC cable, providing all necessary components for immediate deployment. This 5 inch capacitive touch LCD display supports 800 x 480 pixel resolution with LED backlighting.

UART interface enables easy connectivity for embedded system integration. Compatible exclusively with the BeagleBone Black development board. Robust operating temperature range and CE/RoHS compliant for reliable industrial use.

Includes mounting bezel and cabling for seamless setup and secure installation.

Ideal for industrial automation, embedded system prototyping, educational projects, and other electronic applications requiring compact, high-quality displays with touch functionality. Explore more LCD Colour Displays on EnvMart for comprehensive electronic component options.
