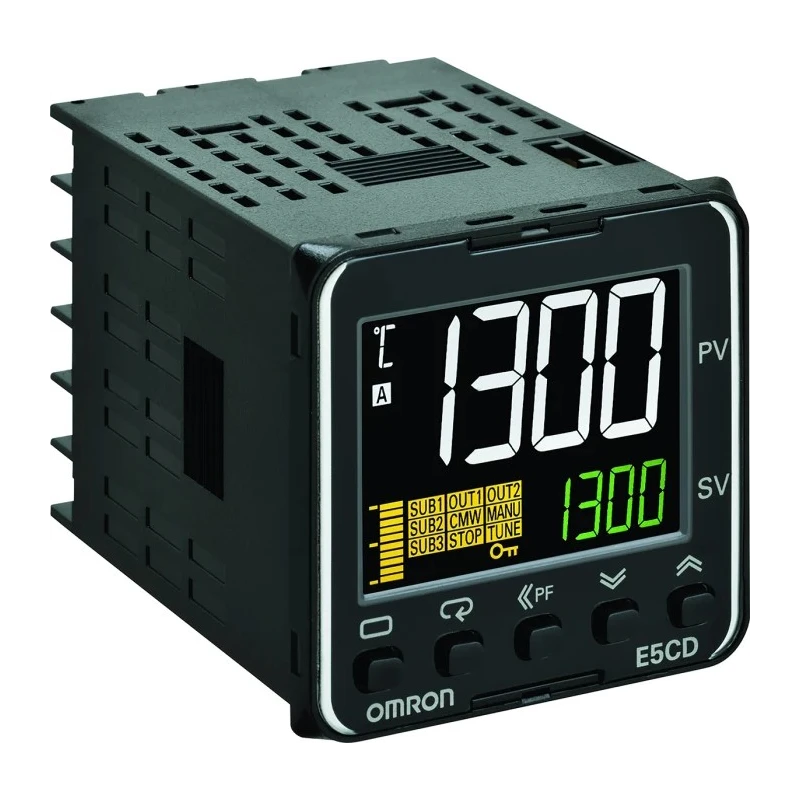

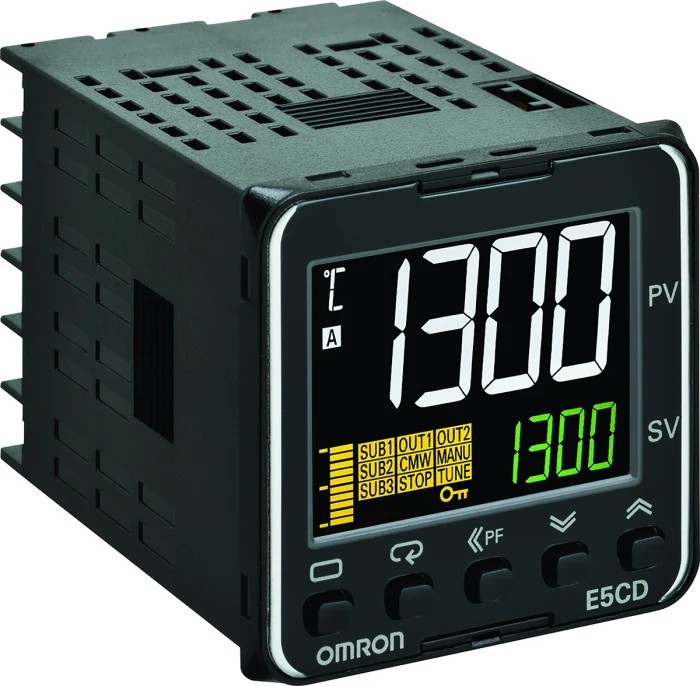

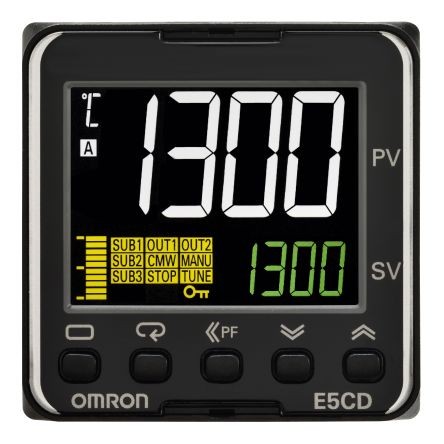

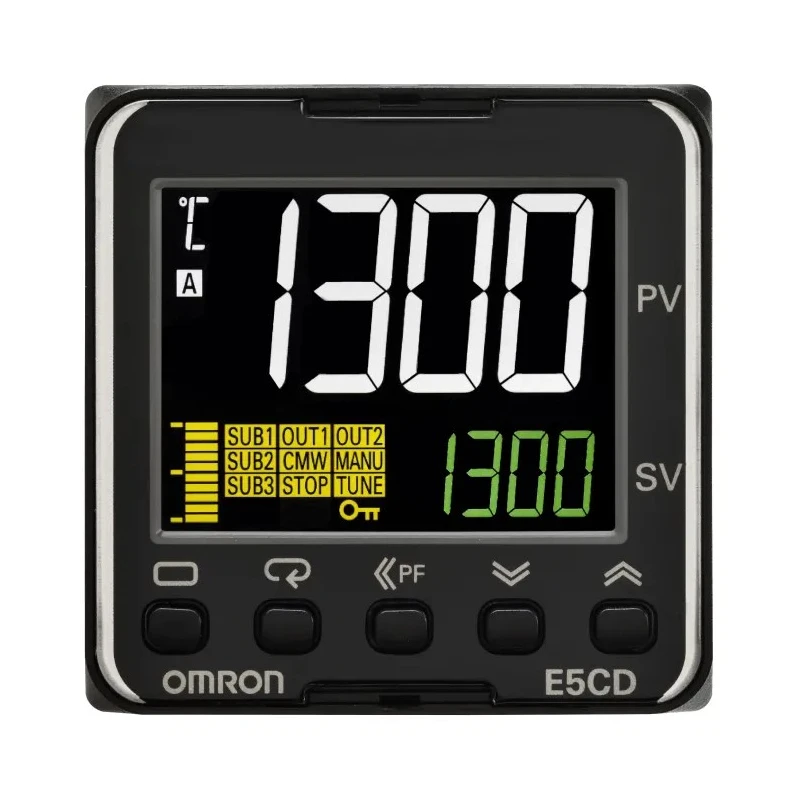

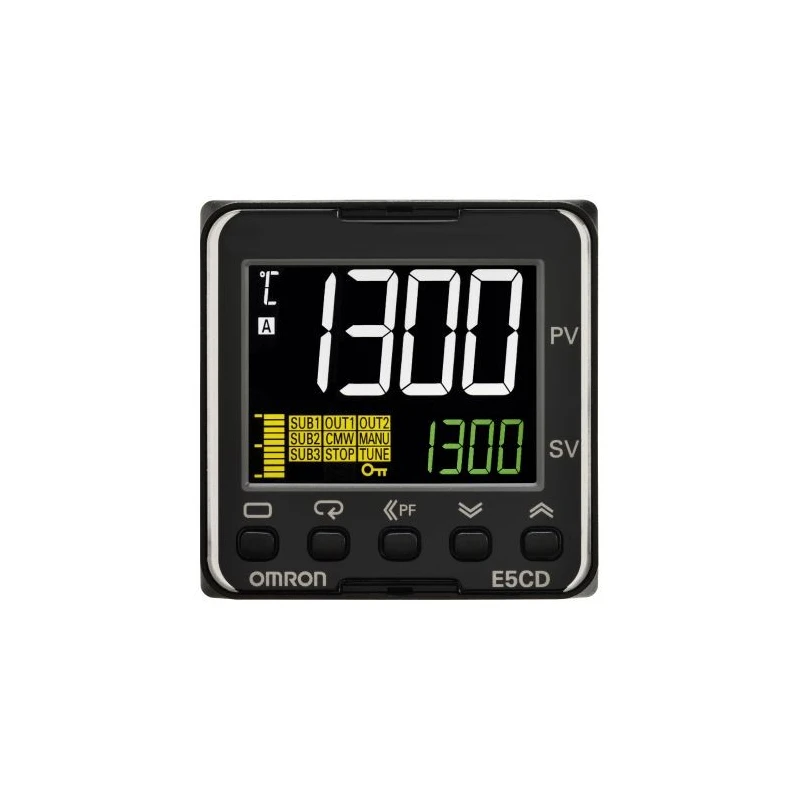

Omron Panel Mount PID Temperature Controller 2 Input, 2 Output PNP 100V ac, 240V ac E5CD

Omron E5CD is a advanced panel mount PID temperature controller that delivers high-precision temperature regulation suitable for various industrial process control applications.

The device features a 48mm wide panel mount form factor with a PID control algorithm, enabling stable and efficient temperature management for manufacturing, packaging machines, and water-cooled extruder systems.

This model supports 2 inputs and 2 outputs with PNP output type, operating at supply voltages of 100V ac or 240V ac, making it adaptable to diverse power environments. The E5CD controller uses screw terminal connections for secure wiring and includes RS485 digital communications to facilitate integration into automated control systems.

Operating reliably in environments from -10°C up to 55°C, it supports control of a single electrical phase with a maximum voltage rating of 250V. The 11-segment display allows simultaneous viewing of process variables and set values for quick monitoring.

Meeting international standards including EN 61010-1 (IEC 61010-1), Korean KC Mark, cULus UL 61010-1/CSA C22.2 No.61010-1, and RCM standards, this product complies with rigorous safety and performance requirements.

The E5CD temperature controller offers multiple IP ratings (IP20, IP66, IP00) to provide protection against dust and water ingress in various industrial environments.

This product is manufactured in China and is ideal for industrial automation, process control, HVAC systems, manufacturing processes, and other applications requiring precise temperature monitoring and control.

Features panel mount installation with a compact 48mm width for efficient space usage. Incorporates PID control to maintain stable temperature regulation and improve process accuracy. Supports dual inputs and outputs for flexible control applications.

Equipped with screw terminals for secure wiring connections. Operates reliably between -10°C to 55°C ambient temperature range. Includes RS485 digital communication for integration with automation systems. Meets multiple international standards including EN 61010-1 and UL 61010-1 for safety and compliance.

Offers an 11-segment display for clear process variable and set value visualization. Designed to control single-phase loads with a maximum voltage of 250V. IP ratings of IP20, IP66, and IP00 provide versatile environmental protection options.

Browse our comprehensive selection of industrial Temperature Controllers at EnvMart for optimized process monitoring and control solutions.
