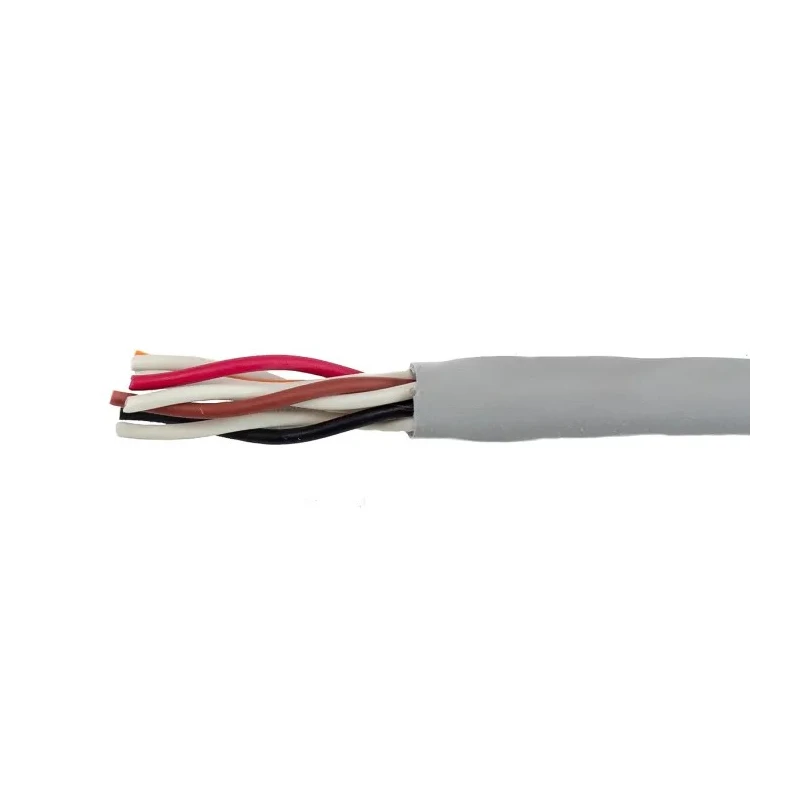

Alpha Wire Ecogen Ecocable Mini Series Data Cable 4 Pairs 8 Cores 0.09 mm² 30 m Grey Sheath MPPE 78054 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.09 mm² |
| Model | 78054 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecocable Mini |
| Outside diameter | 3.89mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 8 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.007 (0.18 mm) |
| Nominal Diameter | 0.153 inch (3.89 mm) |
| Minimum Operating Temperature | -40°C |
| Jacket Material | MPPE |
| Standards/Approvals | UL, CE, CSA |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| Conductor Type | Stranded |
| Number of Strands | 19 |
| Core Strands | 19 x 40AWG |
| Size of Strands | 40AWG |
| Number of Pairs | 4 |
| Conductors | 4, White/Black, White/Brown, White/Red, White/Orange |
| Jacket Thickness | 0.015 inch (0.38 mm) |
| Stranding | 19/40 |
Key Features
- Constructed with tin copper wire conductors for excellent conductivity.
- Stranded 19 x 40AWG cores ensure flexibility and durability.
- Designed for operation between -40°C and 80°C temperature ranges.
- Utilizes halogen-free, recyclable mPPE insulation and jacket materials.
- Rated at 300 V voltage with UL, CE, and CSA approvals.
- Nominal outside diameter of 3.89 mm ensures compact installation.
- Suitable for industrial communication, telecommunication, automation, and electronic applications.
- Eco-friendly design with low outgassing and lightweight construction.
Product Description
Alpha Wire 78054 SL005 Ecogen Ecocable Mini Series Data Cable is a high-performance 300 V unshielded multipair data cable designed for demanding industrial and communication applications. It features 4 pairs (8 cores) of stranded tin copper wire with a cross-sectional area of 0.09 mm², housed in a grey mPPE (modified polyphenylene ether) jacket which provides excellent thermal and dielectric properties.
The cable supports an operating temperature range from -40°C to 80°C and is halogen-free, making it suitable for use in environments with stringent safety and environmental requirements. The fine 19 x 40AWG stranded cores enhance flexibility and reduce signal interference, ensuring reliable data transmission.
This miniature cable has a nominal outside diameter of 3.89 mm and a jacket thickness of 0.015 inch (0.38 mm) with an insulation thickness of 0.007 inch (0.18 mm). Its lightweight and recyclable profile reduce overall installation weight and environmental impact without compromising durability.
Alpha Wire Ecogen Ecocable Mini supports numerous industrial and commercial applications such as radio transmitters, electronic circuits, telecommunication systems, automation controls, and studio environments. Additionally, it complies with NFPA 79 standards for electrical safety in industrial machinery.
Stranded tin copper conductors deliver high conductivity and corrosion resistance. The mPPE insulation and jacket lower density and outgassing for a cleaner environment. Halogen-free construction enhances fire safety. Certified to UL AWM 21460, UL VW-1, CSA I A/B FT1, CE, RoHS, REACH, and WEEE standards.
Nominal diameter ensures compatibility with compact routing and cable management systems. Operating voltage of 300 V supports a wide range of industrial control and communication equipment. Eco-conscious design reduces environmental footprint via recyclability and material choice.
This Data Cable is the ideal choice for engineers, technicians, and installers seeking a reliable, environmentally friendly solution for sensitive and demanding industrial data transmission needs.
Explore the Electronics & Electricals category at EnvMart for a complete range of high-quality wires and cables from trusted brands like Alpha Wire.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 80°C.
The nominal outside diameter is 3.89 mm.
This data cable features 8 cores arranged in 4 pairs.
It is rated for 300 V voltage.
The insulation and jacket are made from halogen-free modified polyphenylene ether (mPPE).
The conductors have a cross-sectional area of 0.09 mm².
It uses stranded tin copper wire conductors for excellent conductivity.
The jacket thickness is 0.015 inch (0.38 mm).
It is suitable for industrial communication, telecommunication, automation, and electronic applications.
Yes, it complies with UL, CE, and CSA standards.
The minimum operating temperature is -40°C.
The cable features an eco-friendly design with low outgassing and is recyclable, reducing its environmental footprint.
