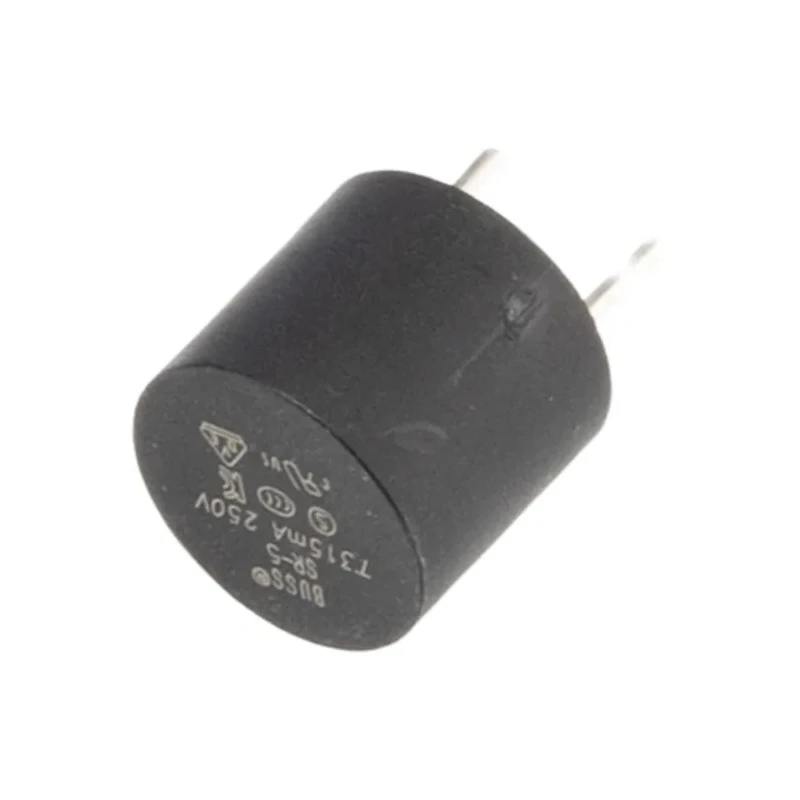

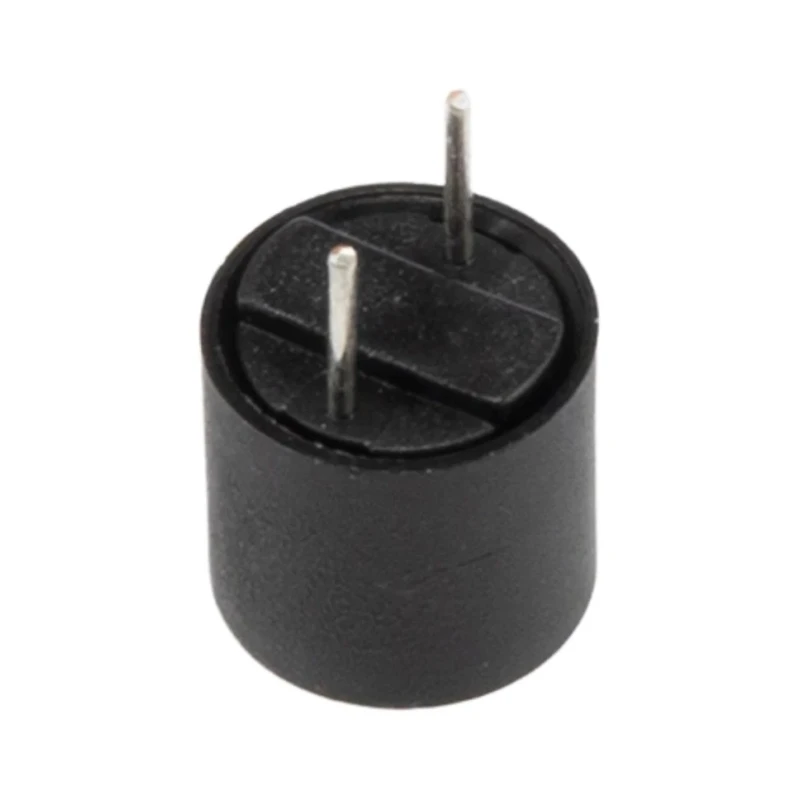

Eaton Radial Time Delay Fuse 315mA 250V AC SR-5-315MA-BK
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V ac |
| Diameter | 8.5mm |
| Brand | Eaton |
| Height | 7.6mm |
| Length | 7.37mm |
| Model | SR-5-315MA-BK |
| Width | 8.5mm |
| Current Rating | 315mA |
| Series | SR5 |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
| Lead Length | 4.3mm |
| Breaking Capacity | 35A |
| Lead Diameter | 1mm |
| Fuse Characteristics | Time Delay |
| Lead Orientation | Radial |
Key Features
- This fuse features time-delay technology allowing transient surges to pass without nuisance openings.
- Radial lead orientation with a 1mm lead diameter enables easy through-hole mounting on PCBs.
- It supports operational temperatures from -40°C to +125°C for versatile environmental use.
- The fuse has a 35A breaking capacity suitable for safely interrupting higher short-circuit currents.
- Compact dimensions with an 8.5mm diameter and 7.6mm height fit tight installation spaces.
- Compliant with IEC 60127-3, VDE, RoHS, IEC 60068-2-20, and PSE standards.
- Ideal for automation control panels, instrumentation, and consumer electronic modules requiring slow-blow protection.
Product Description
Eaton SR-5-315MA-BK is a radial leaded time delay fuse designed for sensitive low-current and control circuits operating at 250V AC. This precision fuse tolerates transient surges without tripping unnecessarily, making it ideal for applications requiring reliable protection without interruption from harmless spikes.
The fuse features a radial lead design with a conductor diameter of 1mm and a lead length of 4.3mm, allowing straightforward PCB through-hole mounting. Its compact subminiature body measures 8.5mm in diameter and 7.6mm in height, suited to installations with limited space.
Operating reliably across a wide temperature range from -40°C to +125°C, this fuse ensures performance in harsh industrial, automation, and electronic equipment environments. With a breaking capacity of 35A, it safely interrupts fault conditions involving elevated short-circuit currents.
Approved to multiple international safety and quality standards including IEC 60127-3 and VDE, the Eaton SR5 series fuse supports system designs compliant with global regulatory requirements. Typical applications include protection of instrument power inputs, control panels in automation systems, and consumer electronic devices needing slow-blow fuse characteristics.
This fuse provides precise overcurrent protection for sensitive electronic circuits. The time-delay characteristic prevents nuisance tripping from transient surges. Radial lead format facilitates easy PCB mounting and assembly.
Compact size suits installations with limited space availability. Wide operating temperature range ensures reliable function under varied environmental conditions. High breaking capacity protects against severe short-circuits safely.
Compliance with major international standards ensures application versatility. Explore Eaton Fuse products and similar circuit protection components within the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this fuse is 315mA.
It can handle a maximum voltage of 250V AC.
This fuse has a diameter of 8.5mm and a height of 7.6mm.
The breaking capacity of the Eaton SR-5-315MA-BK fuse is 35A.
It operates reliably within a temperature range of -40°C to +125°C.
The fuse features a radial lead orientation with a lead diameter of 1mm.
This model features time delay characteristics, allowing it to tolerate transient surges without nuisance tripping.
The lead length of the Eaton SR-5-315MA-BK fuse is 4.3mm.
It complies with IEC 60127-3, VDE, RoHS, IEC 60068-2-20, and PSE standards.
This fuse is suitable for automation control panels, instrumentation, and consumer electronic modules requiring slow-blow protection.
The lead diameter is 1mm.
The length of this fuse is 7.37mm.
