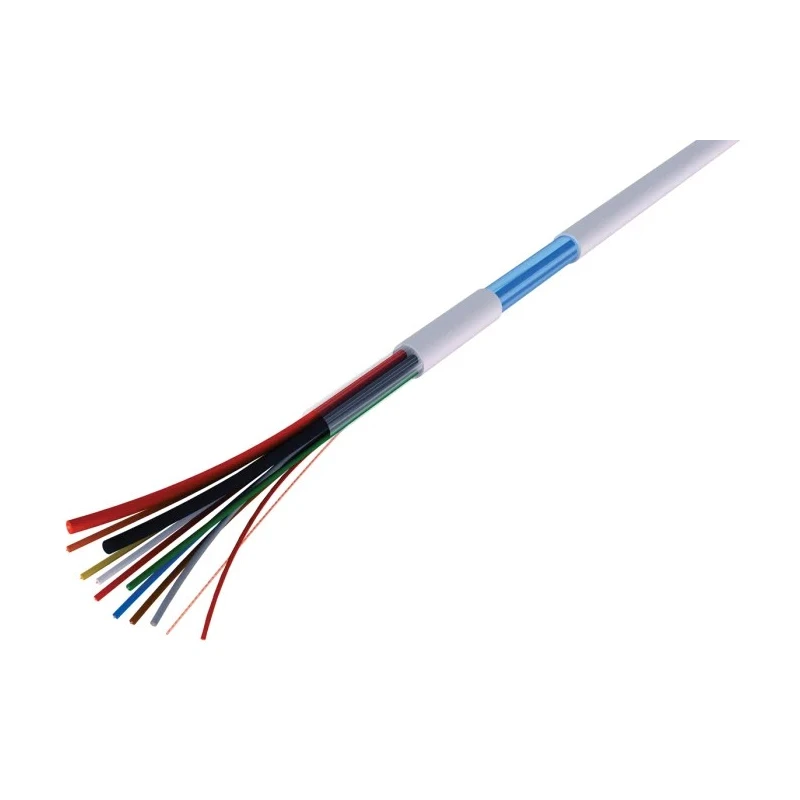

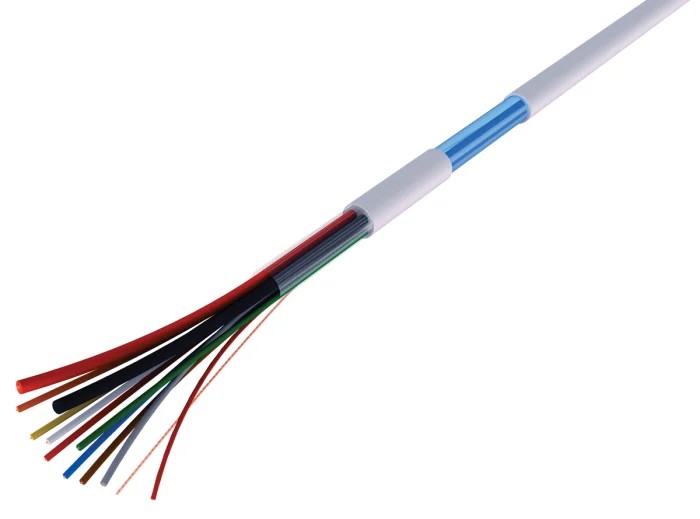

RS Pro Control Cable, 8 Cores, Screened, 100 m Length, White Polyvinyl Chloride Sheath 136-8145
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS Pro |
| Model | 136-8145 |
| Cable Length | 100m |
| Series | RS PRO |
| Maximum Operating Temperature | 70°C |
| Number Of Cores | 8 |
| Conductor Material | Bare Copper |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | Euroclass Eca |
| Jacket Colour | White |
| Screened/Unscreened | Screened |
Key Features
- This control cable contains eight cores with two at 0.75 mm² and six at 0.22 mm² cross-sectional areas.
- It is constructed with bare copper conductors providing flexibility and good electrical conductivity.
- The cable is screened with aluminium tape and includes a drain wire along with a jacket ripcord for easy installation.
- Rated for voltages of 200 V at 0.22 mm² cores and 250 V at 0.75 mm² cores, suitable for alarm and security systems.
- The cable length is 100 meters with an outer diameter of 6 mm and operating temperature range from -10°C to +70°C.
- The jacket is made from flame-retardant, self-extinguishing polyvinyl chloride to ensure safety in use.
- Meets Euroclass Eca standards and complies with IEC 60332-1 for fire safety.
- Designed primarily for use by professional installation experts and electricians in security alarm systems.
Product Description
RS Pro 136-8145 control cable is a high-quality, industrial-grade 8-core screened cable designed for use in security alarm systems, electrical automation, and control applications. It features two cores with a 0.75 mm² cross-sectional area and six cores with 0.22 mm², all using bare copper conductors that offer excellent conductivity and flexibility.
The cable is sheathed in a white polyvinyl chloride (PVC) jacket that is flame retardant and self-extinguishing, complying with Euroclass Eca standards to ensure optimum safety in demanding environments. The aluminium tape screening combined with a drain wire and the inclusion of a jacket ripcord facilitate easy, fault-free installation and enhanced noise immunity in industrial and security setups.
This control cable operates safely at voltages up to 250 V on the larger core sizes and 200 V on the smaller cores, with a maximum operating temperature of 70°C, making it suitable for a wide range of commercial and industrial applications including alarm wiring, process control, and industrial automation.
The cable outer diameter is 6 mm, providing a compact yet robust form factor for versatile deployment. It has conductor resistances of 26 Ω/km for the 0.75 mm² cores and 96 Ω/km for the 0.22 mm² cores, ensuring reliable signal transmission across the full 100 m reel length.
This control cable contains eight cores with two at 0.75 mm² and six at 0.22 mm² cross-sectional areas. It features bare copper conductors for enhanced electrical performance. Designed with an aluminium tape screen, a drain wire, and a PVC jacket ripcord for easy installation.
Rated voltage is 250 V at 0.75 mm² and 200 V at 0.22 mm² cores. White polyvinyl chloride flame-retardant sheath with outer diameter of 6 mm. Operating temperature range from -10°C to +70°C for versatile environmental use.
Conforms to IEC 60332-1 and Euroclass Eca flame retardancy standards. Suitable for industrial automation, alarm systems, and electrical control applications.
This RS Pro screened cable is manufactured in China and is part of the RS PRO product range, known for rigorous testing and consistent high quality, trusted by industrial engineers worldwide. Whether for new installations or maintenance of alarm and control wiring, this cable offers dependable performance and long service life.
Explore the RS Pro Control Cable range and other industrial cables on EnvMart for the best solutions in electrical power and industrial wiring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this control cable is 70°C.
This control cable has a length of 100 meters.
The cable contains eight cores, with two cores at 0.75 mm² and six cores at 0.22 mm² cross-sectional areas.
The conductors in this model are made of bare copper, providing good electrical conductivity and flexibility.
The cable is sheathed in a white polyvinyl chloride (PVC) jacket that is flame-retardant and self-extinguishing.
The outer diameter of the cable is 6 mm.
It is rated for voltages of 250 V at the 0.75 mm² cores and 200 V at the 0.22 mm² cores.
This control cable complies with Euroclass Eca standards and IEC 60332-1 for fire safety.
The operating temperature range of -10°C to +70°C makes it suitable for various environments, but specific outdoor suitability is not mentioned.
The cable includes a drain wire and a jacket ripcord, which facilitate easy installation and enhanced noise immunity.
This control cable is designed primarily for use in security alarm systems, electrical automation, and control applications.
This control cable is manufactured in China.
