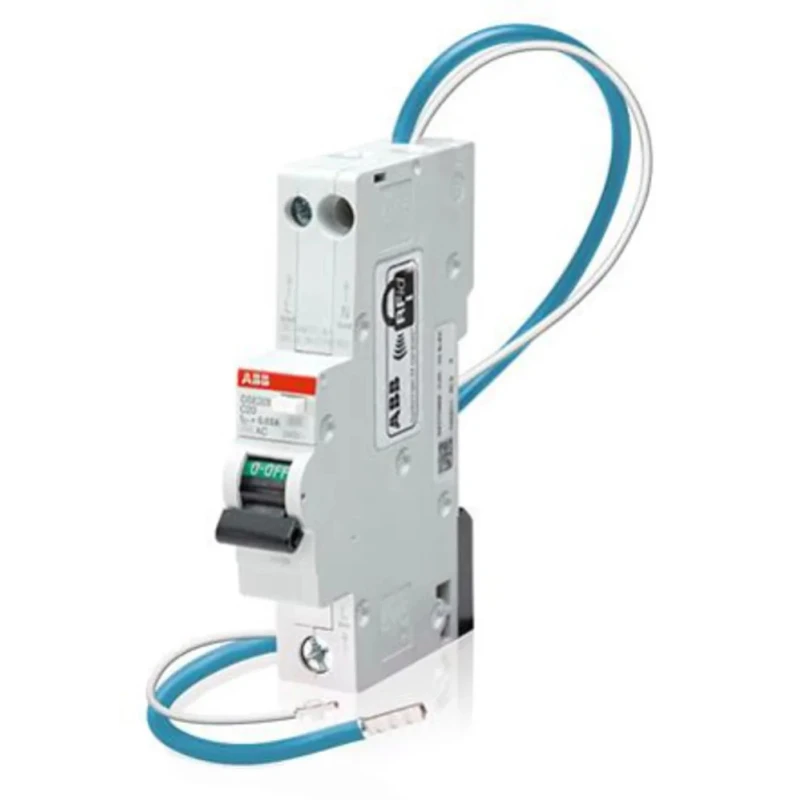

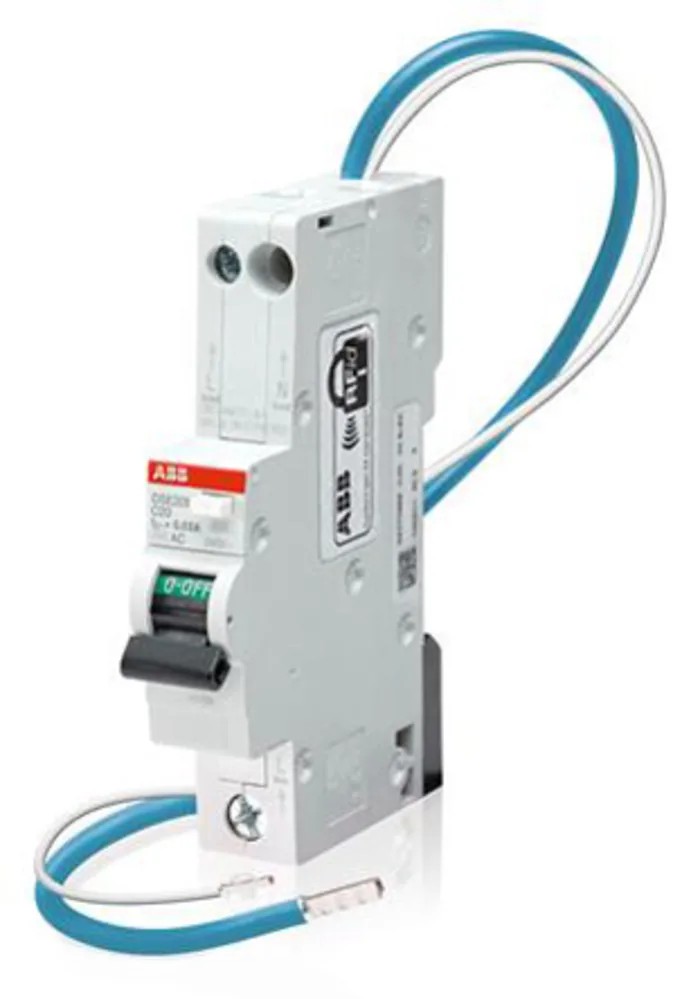

ABB Residual Current Circuit Breaker with Overload Protection, 16A Current Rating 2CSR275151R1165 DSE201 M B16 A30 - N Blue



Category Residual Current Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	India
Range	System Pro M Compact
Brand	ABB
Height	115mm
Model	2CSR275151R1165 DSE201 M B16 A30 - N Blue
Depth	68.9mm
Width	115mm
Mount Type	DIN Rail
Current Rating	16A
Series	DSE201 M
Terminal type	Screw
Breaking Capacity	10kA
Number of Poles	1
Standards/Approvals	RoHS, IEC
Rated AC Voltage	240V ac
Tripping Characteristics	Type B
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Toggle Switch
Trip Sensitivity	30mA
Earth Leakage Protection Type	Type A
RCBO's	DIN rail mounting with an operating temperature range of -25 to +55 °C. Optimum frequency range of 50 to 60Hz

Key Features

Features a single-pole design suitable for precise circuit control.
Equipped with thermal magnetic tripping mechanism for overload and short circuit protection.
Type B tripping characteristic allows detection of both AC and pulsating DC earth faults.
Mounts easily on DIN rails ensuring quick installation.
Operates at rated AC voltage of 240V with a breaking capacity of 10kA.
Includes toggle switch reset actuator for simple manual operation.
Terminal connections use screw type for secure wiring.
Designed for earth leakage protection type A with a trip sensitivity of 30 mA.

Product Description

ABB 2CSR275151R1165 DSE201 M B16 A30 - N Blue Residual Current Circuit Breaker with Overload Protection offers comprehensive electrical safety by integrating residual current detection and overcurrent protection in a compact single-module design.

This device, part of the DSE201 M series, is engineered for residential, commercial, and light industrial applications requiring reliable safeguarding against short circuits, overloads, earth faults, and indirect or direct contact risks.

Rated at 16 amperes current and operating at 240 volts AC, it features Type B tripping characteristics, capable of detecting alternating current and pulsating direct current earth leakage faults, enhancing protection for sensitive electronics and installations.

The device mounts on standard DIN rails, facilitating straightforward installation within distribution boards and switchgear. Its thermal magnetic trip mechanism ensures fast response to overloads and short circuit conditions.

Dimensioned at 115mm height, 115mm width, and 68.9mm depth, the breaker fits compactly in panels without compromising accessibility. The toggle switch allows easy manual reset after tripping events.

Safety and environmental compliance are ensured by adherence to RoHS directives and IEC standards. The breaker’s 10kA breaking capacity confirms robustness suitable for typical electrical circuits.

Operating temperature ranges from -25 to +55 degrees Celsius, ideal for varied climatic conditions, and it supports frequency ranges of 50 to 60 Hz for broad compatibility. Single-pole Residual Current Circuit Breaker combining overload and earth fault protection.

Thermal magnetic tripping mechanism with Type B characteristics. 30 mA trip sensitivity for earth leakage detection. Rated for 16A load current and 240V AC voltage. Compact DIN rail mounting design. Toggle switch for easy resetting.

Compliant with RoHS and IEC safety standards. Breaking capacity of 10 kA for reliable fault interruption. Suitable for home, commercial, and light industrial electrical systems. Explore a wide range of circuit protection devices and electrical components at EnvMart for safe and efficient automation solutions.
