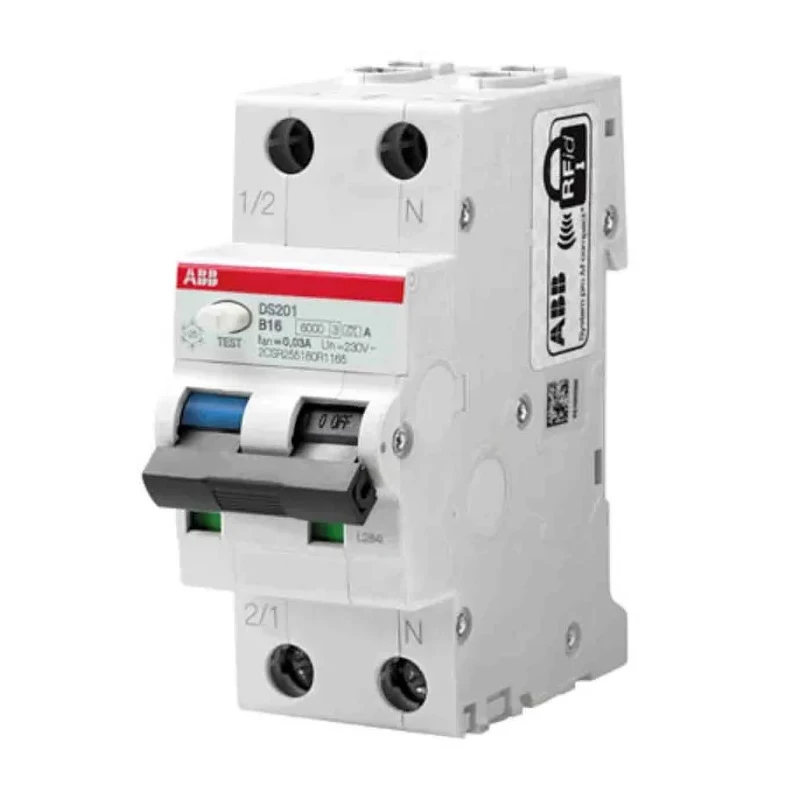

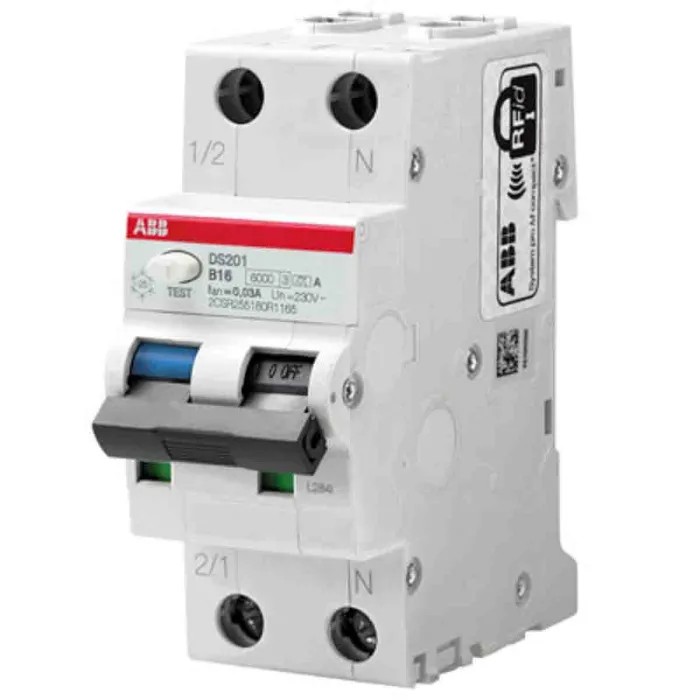

ABB Residual Current Circuit Breaker with Overload Protection, 10A Current Rating, 2-Pole, 30 mA Trip 2CSR255180R1105
Specifications
| Country of Origin | India |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 85mm |
| Model | 2CSR255180R1105 |
| Depth | 69mm |
| Width | 35mm |
| Mount Type | DIN Rail |
| Current Rating | 10A |
| Series | DS201 |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 2 |
| Standards/Approvals | RoHS, IEC |
| Rated AC Voltage | 230V ac |
| Tripping Characteristics | Type B |
| Tripping Mechanism | Thermal Magnetic |
| Trip Sensitivity | 30mA |
Key Features
- Provides reliable overload and short-circuit protection for end-user circuits.
- Equipped with thermal magnetic tripping mechanism for accurate fault response.
- Features a rated AC voltage of 230V suitable for residential and commercial installations.
- Complies with RoHS and IEC standards ensuring environmental and safety adherence.
- Compact design with 35mm width and IP40 housing protection rating.
- Breaking capacity of 6kA supports robust fault interrupting capability.
- Screw terminal type facilitates secure and easy wiring connections.
- Designed with Type B tripping characteristics for sensitive residual current detection.
Product Description
ABB 2CSR255180R1105 Residual Current Circuit Breaker with Overload Protection is engineered to provide precise and reliable protection in electrical installations with a current rating of 10A and 2 poles.
This device is specially designed for DIN rail mounting and is suitable for single-phase circuits operating at a rated voltage of 230V AC. The breaker offers advanced overload and short-circuit protection using a thermal magnetic tripping mechanism ensuring rapid disconnection under fault conditions.
With a trip sensitivity of 30mA and Type B tripping characteristics, it effectively detects sinusoidal alternating earth fault currents, direct contacts, and indirect contacts, providing enhanced safety for residential and commercial applications.
Its dimensions - height 85mm, width 35mm, and depth 69mm - enable a compact installation footprint within electrical panels. The product conforms to RoHS and IEC standards, ensuring compliance with international quality and safety requirements.
Equipped with a breaking capacity of 6kA, the circuit breaker can safely interrupt high fault current levels without damage. Its screw-type terminals allow for secure electrical connections and ease of installation.
This ABB Residual Current Circuit Breaker is widely applicable in industrial, commercial, and residential electrical systems requiring reliable earth fault and overload protection.
Provides reliable overload and short-circuit protection for end-user circuits. Equipped with thermal magnetic tripping mechanism for accurate fault response. Features a rated AC voltage of 230V suitable for residential and commercial installations.
Complies with RoHS and IEC standards ensuring environmental and safety adherence. Compact design with 35mm width and IP40 housing protection rating. Breaking capacity of 6kA supports robust fault interrupting capability.
Screw terminal type facilitates secure and easy wiring connections. Designed with Type B tripping characteristics for sensitive residual current detection. Explore the broad range of ABB electrical protection devices available at EnvMart for enhanced safety and compliance in your electrical installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 10A, suitable for various electrical applications.
It has a breaking capacity of 6kA, allowing it to safely interrupt high fault current levels.
This unit is designed for DIN rail mounting, facilitating easy installation in electrical panels.
The rated AC voltage for this model is 230V, making it suitable for both residential and commercial installations.
The dimensions are 85mm in height, 35mm in width, and 69mm in depth, allowing for a compact installation footprint.
It features Type B tripping characteristics, which are designed for sensitive residual current detection.
The trip sensitivity is 30mA, providing effective protection against earth faults.
It utilizes screw-type terminals, which facilitate secure and easy wiring connections.
This device complies with RoHS and IEC standards, ensuring adherence to environmental and safety requirements.
The breaker is equipped with a thermal magnetic tripping mechanism, ensuring accurate fault response.
It is widely applicable in industrial, commercial, and residential electrical systems requiring reliable earth fault and overload protection.
This model is part of the DS201 series, which includes various electrical protection devices.
