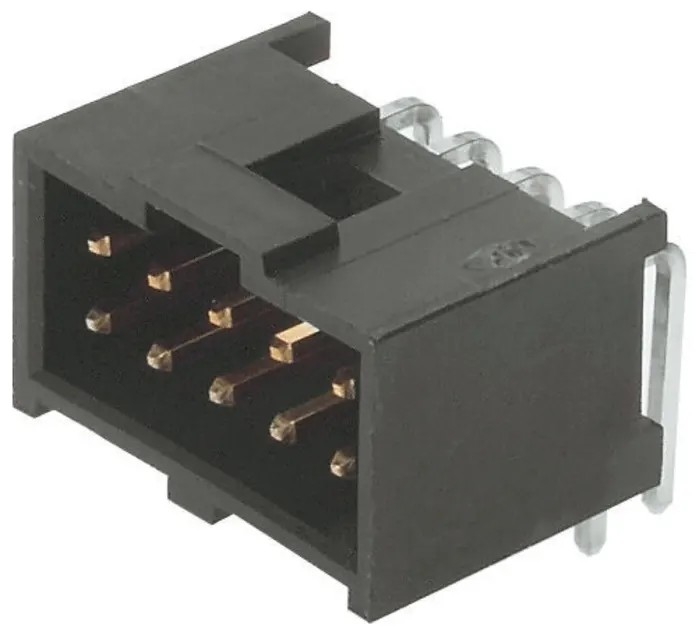

Molex C-Grid III Series Right Angle Through Hole PCB Header, 12 Contacts, 2 Row, 2.54 mm Pitch, Shrouded, 3A, 350V 90130-3112

Molex 90130-3112 C-Grid III Series right angle through hole PCB header is engineered for durable and reliable wire-to-board connections in electronic assemblies. With a 2.54 mm pitch and two rows comprising 12 contacts, it facilitates dense connectivity for compact circuit designs.

The header is shrouded to ensure correct alignment and secure mating with locking housings, enhancing connection stability during installation and operation. Its brass contact material combined with tin plating provides excellent conductivity and corrosion resistance, suitable for various industrial and electronic environments.

Rated for a current of 3 amperes and voltage up to 350 volts, this component supports demanding electrical requirements. It is designed for a wide operating temperature range from -55°C to 125°C, making it suitable for harsh and variable environmental conditions encountered in industrial, manufacturing, and electronics testing applications.

The male contact gender and 2.9 mm tail pin length allow for through-hole solder mounting ensuring firm attachment to printed circuit boards. This through hole configuration facilitates stability and reliability in mechanical mounting.

This PCB header is especially suited for use in industrial electronics, control systems, communication devices, and consumer electronics where robust and reliable connectivity is critical. Packaging in sets optimizes production efficiency during assembly processes.

Features a shrouded design for secure mating. Offers a 2.54 mm pitch with 2 rows of contacts. Current rating of 3A and voltage rating up to 350V. Constructed with brass contacts plated in tin for reliable conductivity. Operates within a temperature range of -55 to 125°C.

Includes male contact gender with 2.9 mm tail pin length. Explore the full range of PCB Header components at EnvMart for your electronic connectivity needs.
