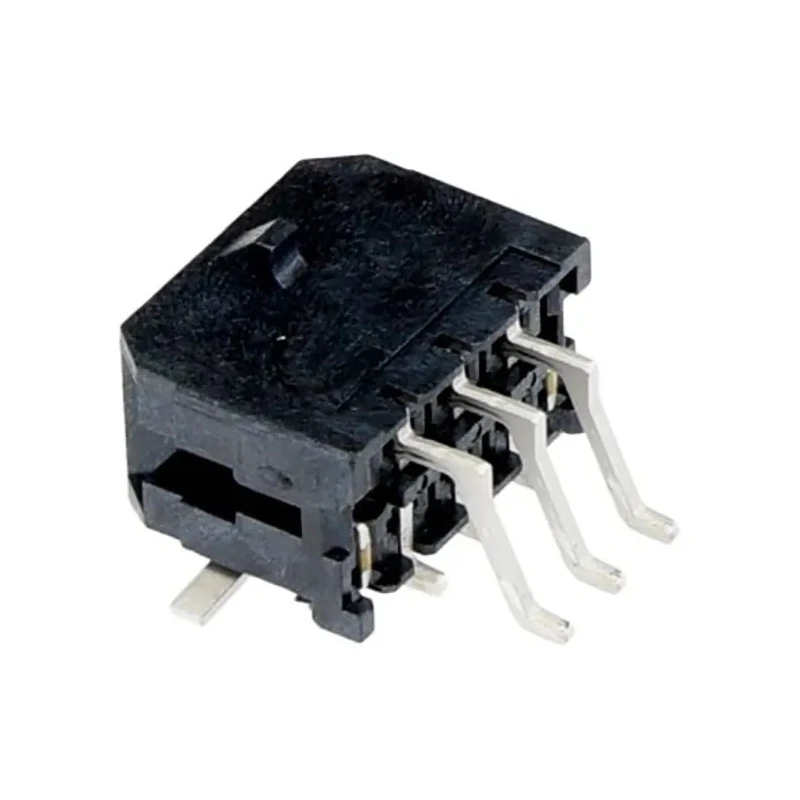

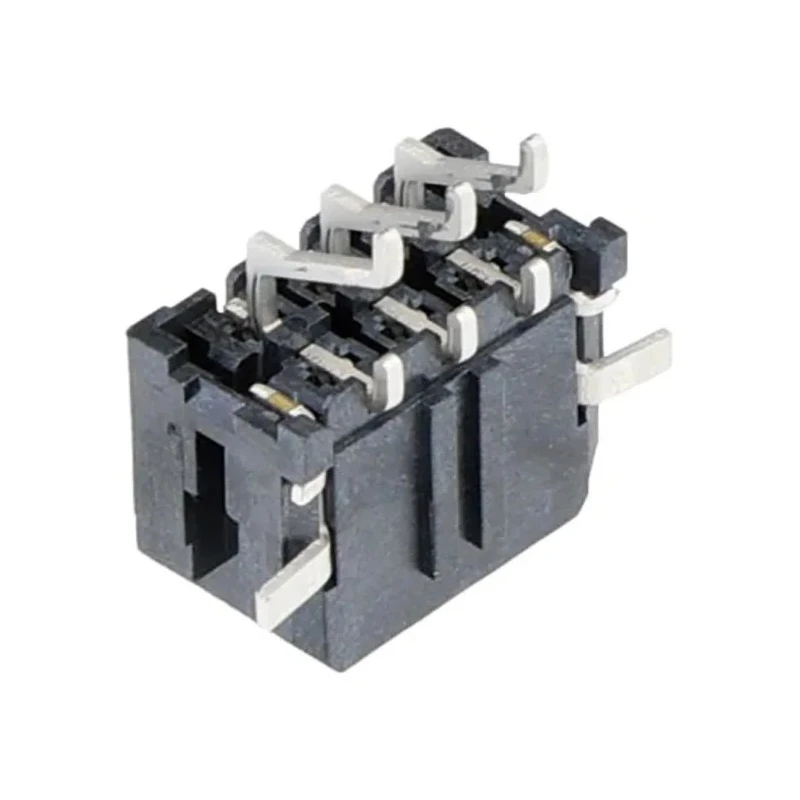

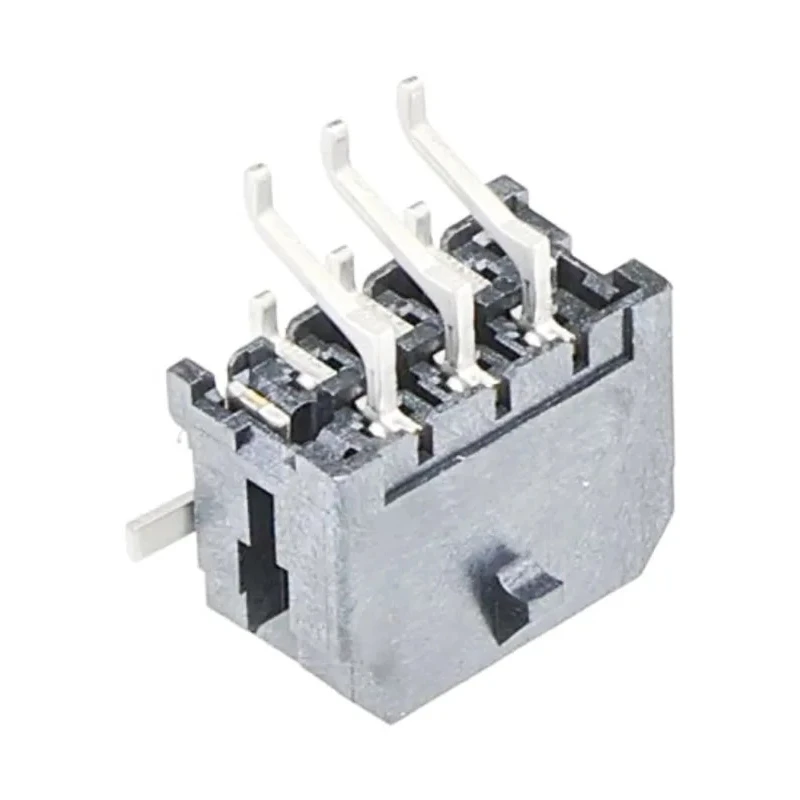

Molex 43045 Series Right Angle Surface PCB Header 6 Contact, 3 mm Pitch, 2 Row, Shrouded 43045-0610

Molex 43045-0610 is a Right Angle Surface PCB Header from the 43045 Series designed for high-performance electronic applications. It features 6 contacts arranged in 2 rows with a 3 mm pitch, making it suitable for compact spaces and reliable connections.

The header has a thermoplastic housing that offers durability and excellent thermal resistance, operating safely in temperatures from -40°C to 125°C. Brass contacts with selective 0.38μm gold plating enhance corrosion resistance while supporting a current rating of 8.5 amperes.

The shrouded design provides protection against contamination and physical harm, contributing to improved connection reliability over time. Its right-angle orientation and surface mount type enable efficient assembly on printed circuit boards, with solder termination ensuring sturdy, permanent joints.

Additional features include PCB retention mechanisms to secure the header firmly during operation and a mating pin length of 3 mm for optimal connection. This connector is ideal for power distribution in electronic devices and finds applications in automation, control systems, consumer electronics, and electrical machinery that demand compact, robust wire-to-board connections.

The product complies with safety standards due to its glow wire compatibility and flammability rating, ensuring suitability for high-temperature environments. The recommended PCB thickness of 1.60 mm ensures proper installation and mechanical stability during use.

Supports high current rating of 8.5 amperes for reliable power delivery. Thermoplastic housing provides durability and heat resistance. Brass contacts with gold plating prevent corrosion. Right angle, surface mount design for compact PCB layouts.

Shrouded contacts protect from damage and contamination. Solder termination for a secure, permanent electrical connection. Operating temperature range from -40°C to 125°C for harsh environments. Durability rated for up to 30 mating cycles.

PCB retention features ensure secure mounting on the board. Recommended PCB thickness is 1.60 mm for best performance.

This Molex PCB header is suitable for industrial, laboratory, manufacturing, and commercial electronics applications where reliable wire-to-board connections are critical. Explore more connectors and PCB Headers on EnvMart for your electronic component needs.
