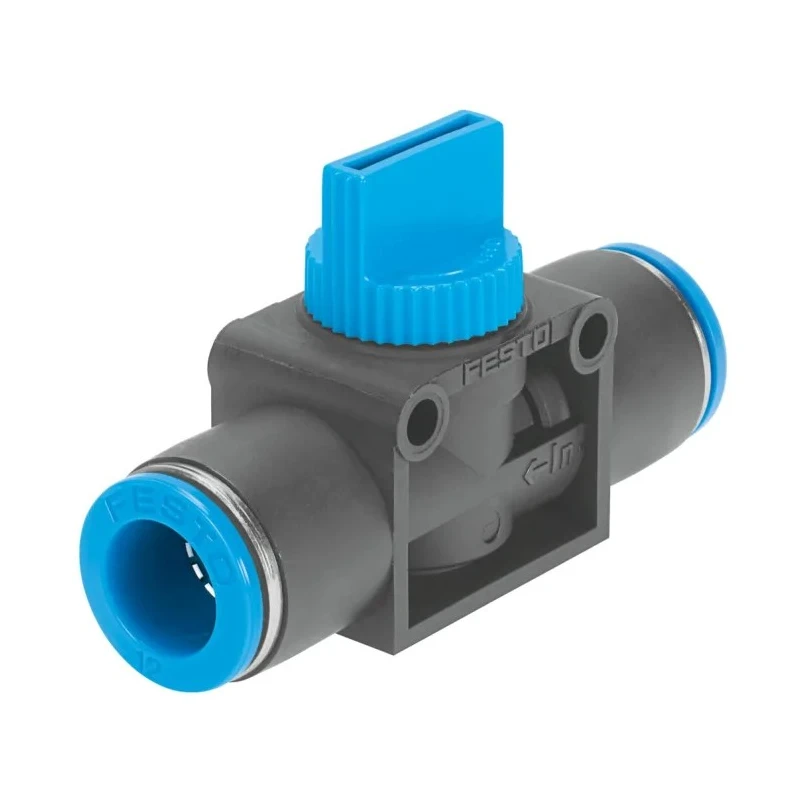

Festo Pneumatic Manual Control Valve HE-3-QS Series, Inlet Male/Female, Outlet Male/Female, 10 bar, 0 to 60°C HE-3-QS-10
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Festo |
| Material | Polybutylene Terephthalate, Reinforced |
| Maximum Operating Pressure | 10 bar |
| Model | HE-3-QS-10 |
| Series | HE-3-QS |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | ISO 228-1, RoHS-compliant, ISO 1179-1 |
| Minimum Operating Pressure | -0.95bar |
| Inlet Port Gender | Male/Female |
| RS PRO Rotary Knob Pneumatic Manual Control Valve 10 mm, III BBrand | RS PRO |
Key Features
- Operates at pressures ranging from -0.95 bar to 10 bar for vacuum and pressure handling.
- Rated for continuous use with maximum operating temperature of 60°C.
- Reinforced polybutylene terephthalate housing ensures durable service life.
- Fast tube connection via QS10 push-in fitting at one end.
- Piston spool design provides non-reversible flow control to prevent reverse media flow.
- Soft sealing design minimizes leakages for robust shut-off performance.
- Supports any mounting orientation, designed for inline installation with fixing through-hole.
- Suitable for pneumatic control panels, automation systems, and maintenance isolation on production lines.
Product Description
Festo HE-3-QS-10 pneumatic manual control valve is a compact device designed for manual shut-off control in compressed air systems operating within industrial environments. Featuring an inlet and outlet with male/female port gender configuration, this valve supports a maximum operating pressure of 10 bar and a temperature range from 0°C up to 60°C, making it suitable for factory ambient conditions.
The valve is constructed with a reinforced polybutylene terephthalate housing, ensuring durability and longevity under continuous use. It employs a piston spool design that guarantees non-reversible flow control, preventing backflow and ensuring reliable operation within pneumatic control systems.
The QS10 push-in fitting provides rapid and secure tube connections, facilitating ease of installation and maintenance. The manual actuation features direct control without flow restriction on exhaust air, suitable for pneumatic actuators and electrical enclosures that require maintenance isolation or manual shut-off capabilities.
This valve can be mounted in any orientation and is designed for inline installation, including a through-hole for secure fixing. Its compatibility with lubricated air systems requires consistent lubrication to maintain performance over time.
Applications include pneumatic control panels in automated machinery, mechanical equipment requiring manual valves for system isolation, and use within production lines for maintenance purposes. It conforms to ISO 228-1, ISO 1179-1 standards and is RoHS-compliant, with country of origin as Japan.
Operates from -0.95 bar to 10 bar for vacuum and pressure handling. Rated for continuous use up to 60°C operating temperature. Reinforced polybutylene terephthalate housing for durable service. QS10 push-in fitting at one end for fast tube connection.
Piston spool design ensuring non-reversible flow control. Soft sealing for leak-minimized shut-off performance. Suitable for automation and pneumatic control panels. Supports lubricated air systems with consistent application.
Designed for inline installation with fixing through-hole. Explore more Pneumatic Manual Control Valves and industrial valves on EnvMart for comprehensive solutions across industrial, manufacturing, and automation applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of the HE-3-QS-10 valve is 10 bar.
This model operates within a temperature range of 0°C to 60°C.
The valve is constructed from reinforced polybutylene terephthalate.
The minimum operating pressure is -0.95 bar, allowing for vacuum handling.
The piston spool design provides non-reversible flow control, preventing reverse media flow.
It conforms to ISO 228-1 and ISO 1179-1 standards and is RoHS-compliant.
Yes, it supports any mounting orientation and is designed for inline installation.
It features a QS10 push-in fitting for fast and secure tube connections.
This valve is suitable for pneumatic control panels, automation systems, and maintenance isolation on production lines.
The valve has an inlet and outlet with a male/female port gender configuration.
Yes, it is compatible with lubricated air systems and requires consistent lubrication to maintain performance.
The country of origin for this valve is Japan.
