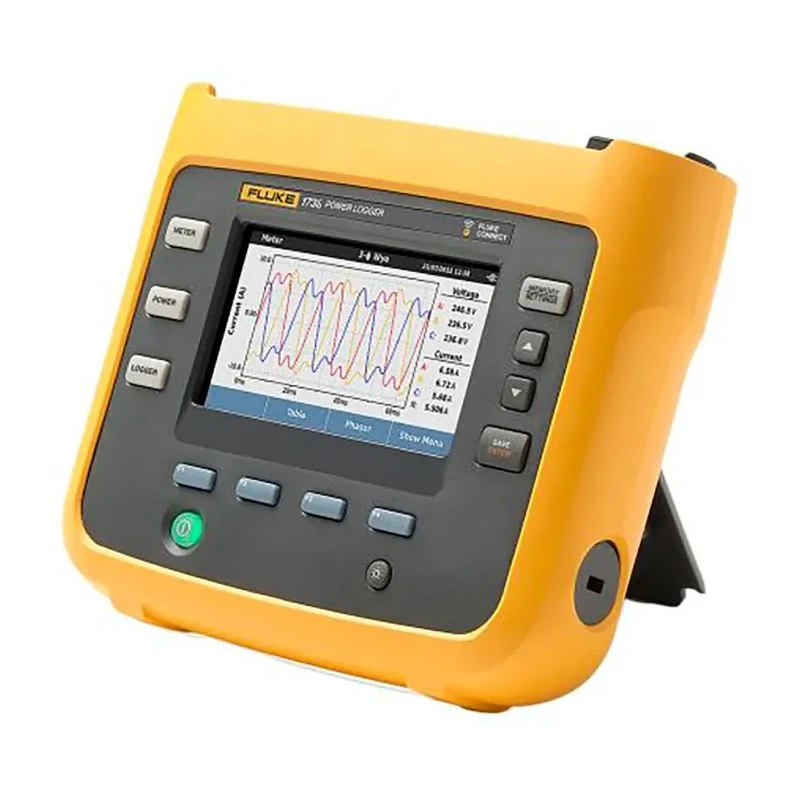

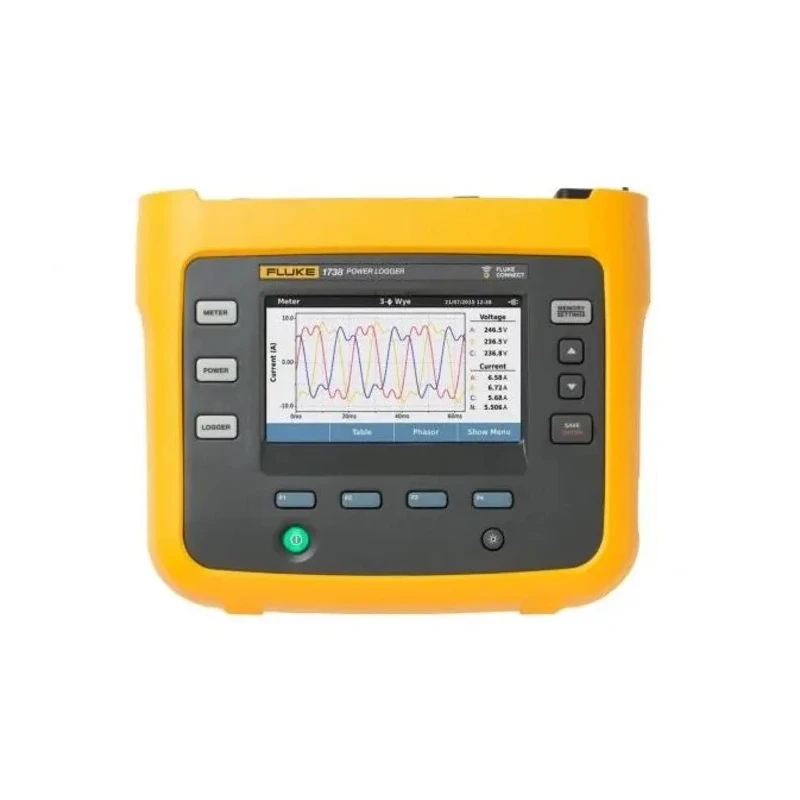

Fluke Three Phase Power Energy Monitor Bluetooth WiFi USB 4 Channel Accuracy ±(0.2%+0.01%) FLUKE-1736/EUS-GOLD
Specifications
| Country of Origin | Romania |
|---|---|
| Resolution | 16 bit |
| Accuracy | ± (0.2 % + 0.01 %) |
| Display Type | LCD |
| Brand | Fluke |
| Battery Life | 4h |
| Battery type | Li-ion Rechargeable Battery |
| Height | 55mm |
| Length | 198mm |
| Model | FLUKE-1736/EUS-GOLD |
| IP Rating | IP50 |
| Width | 167mm |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -10°C |
| Interfaces | USB interfaces enable remote or direct data transfer IEC 61000-4-30 Class S power quality measurement capability |
| Number Of Channels | 4 |
| Measurement Parameters | THD Current, Voltage, Voltage Harmonic, Current Harmonic, THD Voltage, Unbalance, TDD, Current, Frequency |
| Interface Type | Bluetooth, WiFi, USB |
| Minimum Measurement | 100 V |
| Maximum Measurement | 500 V |
Key Features
- Portable three-phase power data logger designed for industrial electrical system monitoring.
- Supports Bluetooth, WiFi, and USB interfaces for flexible data transfer options.
- Captures voltage, current, power, harmonics, and power quality parameters.
- Equipped with a Li-ion rechargeable battery offering up to 4 hours of runtime.
- Suitable for load studies, harmonics analysis, energy assessments, and event capture.
- Complies with multiple international standards including IEC and IEEE for power quality measurement.
- Robust IP50 rating ensures protection suitable for site and service-entrance usage.
- Compact dimensions of 198mm (L) x 167mm (W) x 55mm (H) facilitate portability.
Product Description
Fluke FLUKE-1736/EUS-GOLD is a portable three-phase power energy monitor offering highly accurate measurements with ±(0.2%+0.01%) accuracy across four channels. Designed for logging voltage, current, power, and harmonic data in industrial electrical systems, this device is ideal for detailed site power quality studies.
The energy monitor integrates Bluetooth, WiFi, and USB interfaces to allow remote or direct data transfer, supporting flexible workflows on site. Its Li-ion rechargeable battery provides up to 4 hours of operation, enabling continuous monitoring without wired power constraints.
It captures essential parameters such as THD current and voltage, voltage and current harmonics up to the 50th, unbalance, total demand distortion, active/reactive/apparent power, power factor, and frequency. This comprehensive data aids in load studies, compliance reporting, harmonics analysis, and energy consumption assessments.
Constructed with an IP50 rating, the monitor withstands typical industrial environments and is usable in temperatures from -10°C to 50°C. The compact form factor (198mm length, 167mm width, 55mm height) makes it suitable for use at service entrances and downstream distribution points.
Compliance with standards such as EN50160, IEC 61000-4-7, IEC 61000-4-30 Class S, IEC 62586-1, IEEE 519, and IEEE 1459 ensures accurate and reliable power quality measurements. Its capability covers single-phase, split-phase, 3-φ Delta, 3-φ wye, and various Delta current-only studies.
Portable and compact three-phase power energy monitor. Bluetooth, WiFi, and USB connectivity for flexible data access. Accurate ±(0.2%+0.01%) voltage measurements with 16-bit resolution. Integrated Li-ion battery with 4-hour runtime.
Compliant with multiple IEC and IEEE power quality standards. Wide temperature operation range from -10°C to 50°C. IP50 rated for industrial site use. Four measurement channels supporting extensive harmonic and power parameters.
This Fluke energy monitor is highly suitable for industrial, construction, electrical, HVAC, and manufacturing applications where detailed power quality and energy monitoring is critical. Its portability and wireless connectivity make it an excellent tool for field engineers and electricians performing load studies, harmonics and THD analysis, and compliance evaluations. Explore the EnvMart category for more data logging and power monitoring solutions.
Explore more products in our Data Loggers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The accuracy of this model is ±(0.2% + 0.01%).
The dimensions are 198mm in length, 167mm in width, and 55mm in height.
The operating temperature range is from -10°C to 50°C.
It supports Bluetooth, WiFi, and USB interfaces for flexible data transfer options.
This model has four measurement channels.
It has an IP50 rating, making it suitable for typical industrial environments.
It complies with several standards, including EN50160, IEC 61000-4-7, IEC 61000-4-30 Class S, IEC 62586-1, IEEE 519, and IEEE 1459.
The resolution is 16 bits.
It is suitable for load studies, harmonics analysis, energy assessments, and event capture.
The minimum measurement is 100 V, and the maximum measurement is 500 V.
