Aranka Radar Level Transmitter DCRD-1000B4

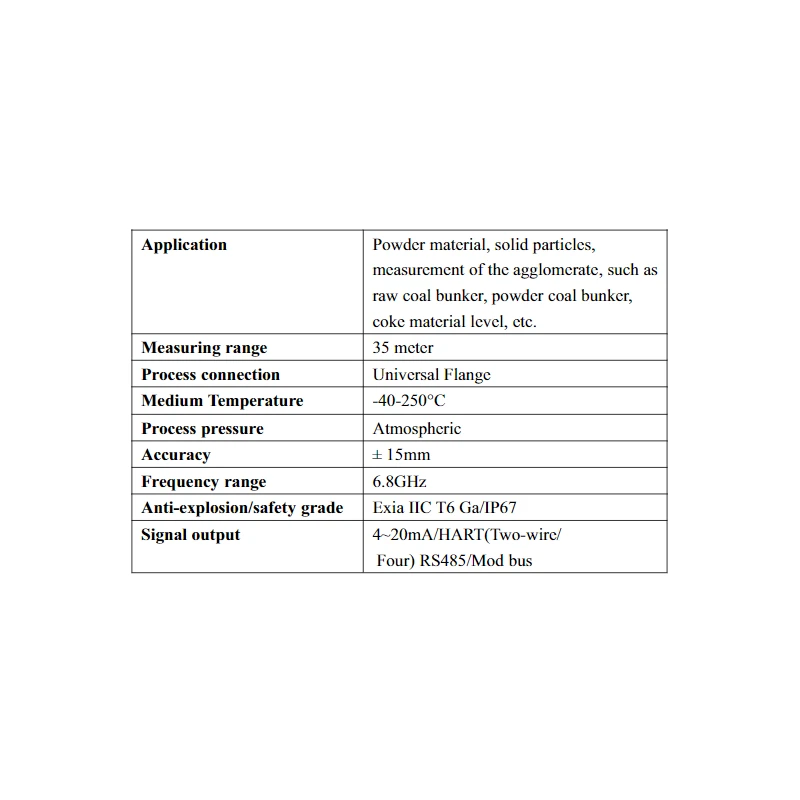

Specifications
| Applications | Liquid Level Measurement Powder Material solid particles measurement of the agglomerate such as raw coal bunker powder coal bunker coke Material level etc |
|---|---|
| Product Type | RADAR LEVEL SENSOR |
| Process connection | Universal Flange |
Key Features
- Adopt advanced non-contact measurement
- Apply extremely stable manufacturing materials
- Level measurement of liquid, solid medium
- Adopt the two-wire, loop-powered technology that the supply voltage and output signals transmitted via a two-corecable
Product Description
Aranka Radar Level Transmitter (DCRD-1000B4), the level transmitter is an advanced radar level measurement instrument, with a maximum measuring distance of 35m for level measurement of storage tanks, process vessels, or intermediate buffer tanks, and output 4...20mA analog signal.Measuring principle:high-frequency microwave pulse transmitted and received by the antenna system, the radar wave travel at the speed of light, and the running time can be converted into a level signal by the electronics component. a special time extension method can guarantee stable and accurate measurement in a very short time. even under more complex conditions with false echoes, by the latest micro-processing technology and debugging software, can accurately identify the echo of material.
- Not affected by noise, steam, dust, vacuum and other working conditions
- Not affected by fluid density, viscosity and temperature changes
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum measuring distance of this radar level transmitter is 35 meters.
It is capable of measuring the level of both liquid and solid materials, including powder materials and agglomerates such as raw coal and coke.
This model uses a two-wire, loop-powered technology to transmit both the supply voltage and output signals via a two-core cable.
The DCRD-1000B4 outputs a 4-20 mA analog signal for level measurement.
It features a universal flange for process connection.
It operates on the principle of high-frequency microwave pulses transmitted and received by an antenna system, converting the running time into a level signal.
Yes, it is not affected by noise, steam, dust, vacuum, or other challenging working conditions.
It employs the latest micro-processing technology and debugging software to accurately identify the echo of the material, even in the presence of false echoes.
The unit adopts a special time extension method to guarantee stable and accurate measurement in a very short time.
The performance of the DCRD-1000B4 is not affected by fluid density, viscosity, or temperature changes.
It is suitable for applications involving liquid level measurement and measurement of solid particles in materials such as coal and coke.
It includes advanced features such as non-contact measurement and the ability to operate effectively in complex conditions.
