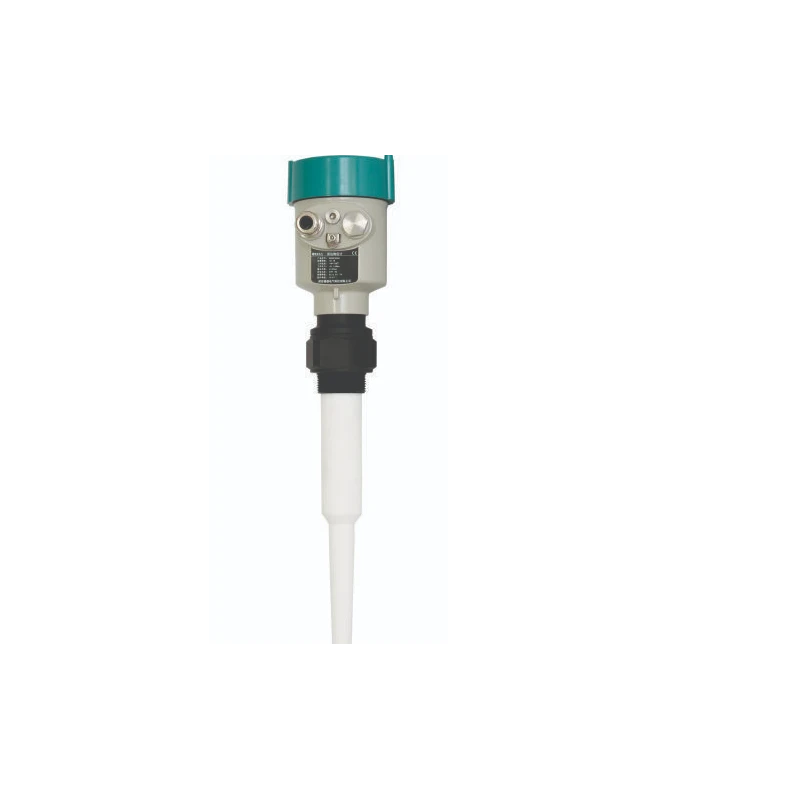

Aranka Radar Level Transmitter DCRD-1000B1

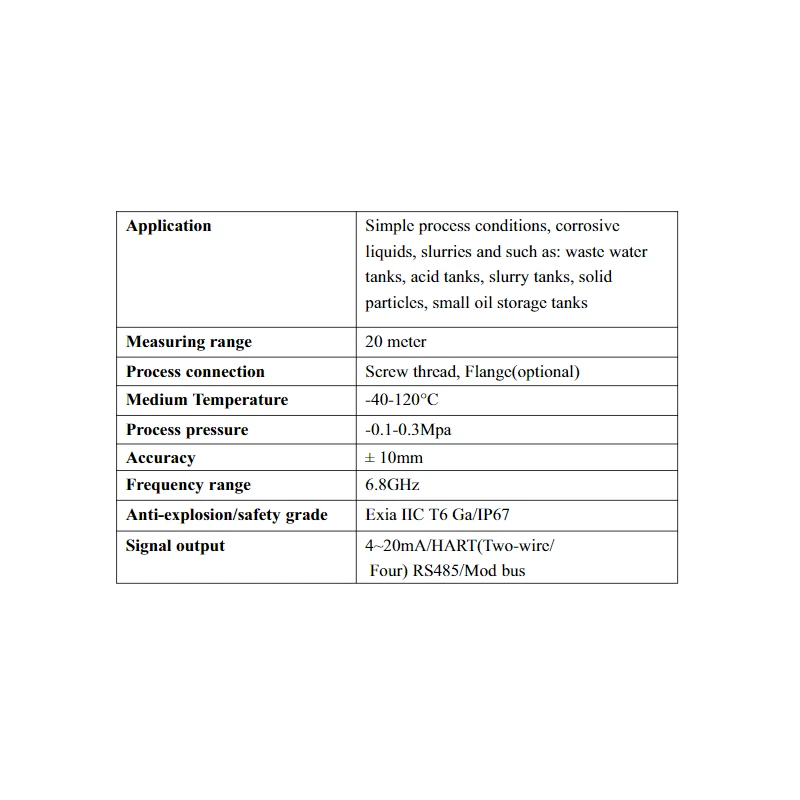

Specifications
| Applications | Liquid Level Measurement Simple process conditions corrosive liquids slurries and such as wastewater tanks acid tanks slurry tanks solid particles small oil storage tanks |
|---|---|
| Product Type | RADAR LEVEL SENSOR |
| Process connection | Screw thread Flange (Optional) |
Key Features
- Adopt advanced non-contact measurement
- Apply extremely stable manufacturing materials
- Level measurement of liquid, solid medium
- Adopt the two-wire, loop-powered technology that the supply voltage and output signals transmitted via a two-corecable
Product Description
Aranka Radar Level Transmitter (DCRD-1000B1), the level transmitter is an advanced radar level measurement instrument, with a maximum measuring distance of 35m for level measurement of storage tanks, process vessels, or intermediate buffer tanks, and output 4...20mA analog signal.Measuring principle:high-frequency microwave pulse transmitted and received by the antenna system, the radar wave travel at the speed of light, and the running time can be converted into a level signal by the electronics component. a special time extension method can guarantee stable and accurate measurement in a very short time. even under more complex conditions with false echoes, by the latest micro-processing technology and debugging software, can accurately identify the echo of material.
- Not affected by noise, steam, dust, vacuum and other working conditions
- Not affected by fluid density, viscosity and temperature changes
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum measuring distance is 35 meters, suitable for level measurement in storage tanks, process vessels, or intermediate buffer tanks.
It is designed for measuring liquid levels, as well as solid mediums, including corrosive liquids, slurries, and solid particles.
It outputs a 4-20 mA analog signal, which is standard for many industrial applications.
It operates by transmitting high-frequency microwave pulses, which travel at the speed of light. The time taken for the pulse to return is converted into a level signal by the electronics.
The process connection can be made via screw thread or flange, with flange being optional.
No, it is not affected by noise, steam, dust, vacuum, or other working conditions, ensuring reliable operation in complex environments.
It is suitable for applications involving wastewater tanks, acid tanks, slurry tanks, and small oil storage tanks.
It utilizes advanced micro-processing technology and a special time extension method to ensure stable and accurate measurement, even in challenging conditions.
It adopts a two-wire, loop-powered technology, which allows the supply voltage and output signals to be transmitted via a two-core cable.
This characteristic allows for accurate level measurement regardless of changes in fluid density, viscosity, or temperature, enhancing the versatility of the transmitter.
Yes, it is suitable for simple process conditions, including those involving corrosive liquids and slurries.
The product type is a radar level sensor, specifically designed for level measurement applications.
