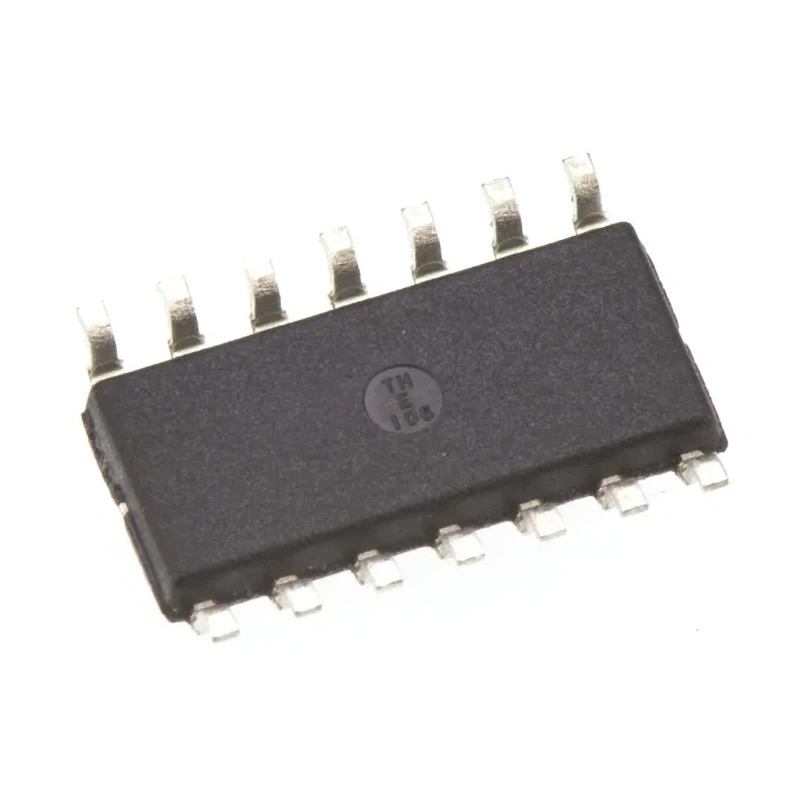

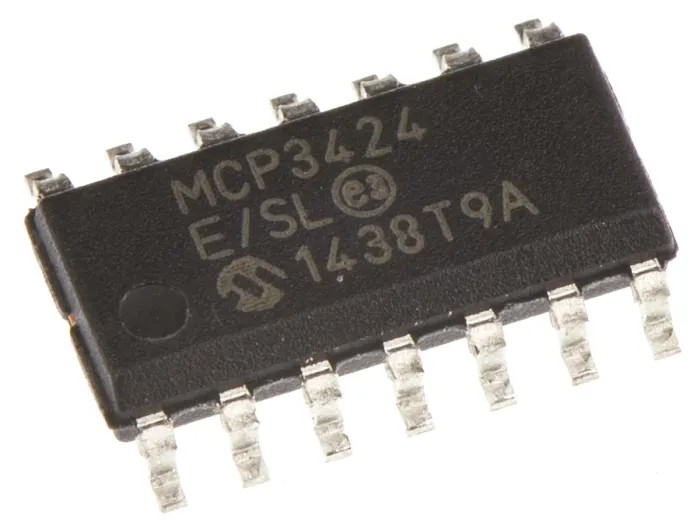

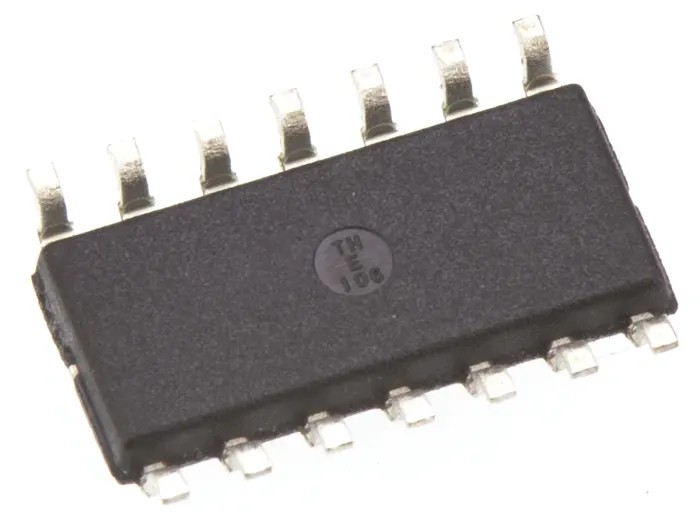

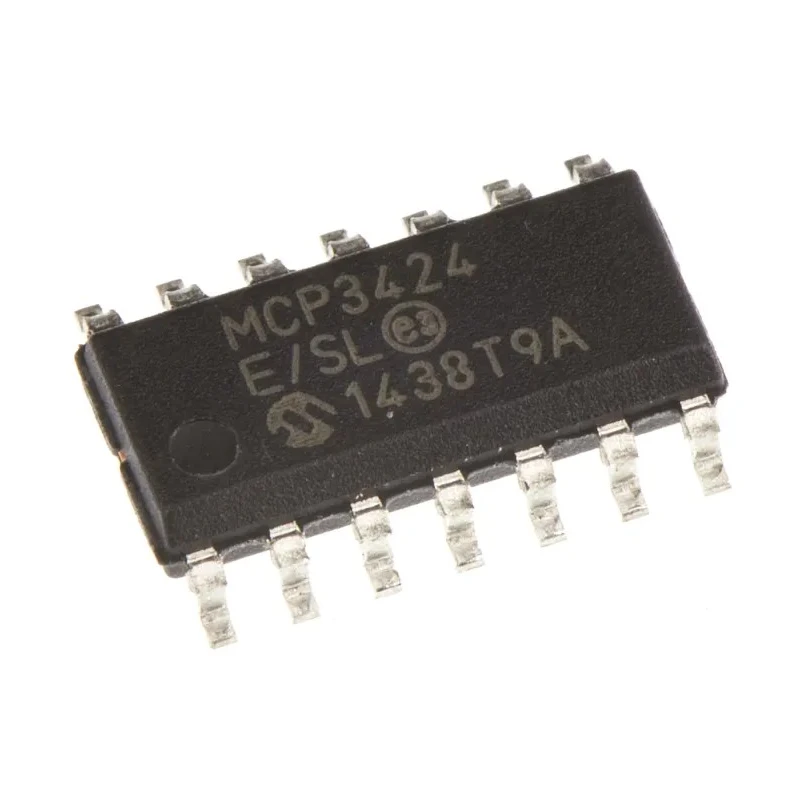

Microchip Delta Sigma 18 bit 4-Channel ADC 4 SPS Surface Mount 14-Pin SOIC MCP3424-E/SL
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 18 bit |
| Brand | Microchip |
| Height | 1.75mm |
| Length | 8.65mm |
| Model | MCP3424-E/SL |
| Mount Type | Surface |
| Sampling rate | 4sps |
| Series | MCP3424 |
| Input Type | Voltage |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Interface Type | Serial-I2C |
| Architecture | Delta Sigma |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 5V |
| Number of ADCs | 4 |
| Microchip 4 18 bit- ADC 4 sps, 14-Pin SOICBrand | Microchip |
Key Features
- Features Delta Sigma architecture for high precision analogue to digital conversion.
- Includes 4 ADC channels resolving at 18 bits for excellent measurement accuracy.
- Supports low sampling rate of 4 samples per second, suitable for slow varying signals.
- Surface mount SOIC package type with 14 pins for compact PCB integration.
- Operates over a wide temperature range from -40°C to 85°C ensuring reliability in harsh environments.
- Operates from a supply voltage between 5 V minimum to 5.5 V maximum.
- Uses Serial-I2C interface for communication facilitating easy integration in embedded systems.
- Complies with automotive standard AEC-Q100 for quality assurance in automotive applications.
Product Description
The Microchip MCP3424-E/SL is a high precision analogue-to-digital converter (ADC) designed for applications requiring accurate voltage measurements across multiple channels. Featuring Delta Sigma architecture, this device delivers an 18-bit resolution on 4 ADC channels with a sampling rate of 4 samples per second, making it ideal for industrial, automotive, laboratory, and embedded systems demanding precise data conversion.
Housed in a compact 14-pin SOIC surface mount package measuring 8.65 mm in length and 1.75 mm in height, it enables efficient PCB space utilization. Its operational supply voltage ranges from 5 V to 5.5 V, and it functions reliably within a temperature range of -40°C to 85°C, accommodating demanding environmental conditions.
The device communicates via a Serial-I2C interface, promoting straightforward system integration and control. Additionally, the MCP3424 series conforms to the AEC-Q100 automotive standard, endorsing its suitability for automotive electronics applications where quality and durability are critical.
This ADC is widely used across electronic components, power and connector systems, semiconductor devices, and data converters applications. It supports engineers and designers in implementing precision analog signal measurement, including sensor data acquisition, instrumentation, and signal processing in industrial automation and control systems.
Features Delta Sigma architecture for high precision analogue to digital conversion. Includes 4 ADC channels resolving at 18 bits for excellent measurement accuracy. Supports low sampling rate of 4 samples per second, suitable for slow varying signals.
Surface mount SOIC package type with 14 pins for compact PCB integration. Operates over a wide temperature range from -40°C to 85°C ensuring reliability in harsh environments. Operates from a supply voltage between 5 V minimum to 5.5 V maximum.
Uses Serial-I2C interface for communication facilitating easy integration in embedded systems. Complies with automotive standard AEC-Q100 for quality assurance in automotive applications. Explore more high quality semiconductor and Analogue to Digital Converter products on EnvMart for advanced electronic design and manufacturing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP3424-E/SL features an 18-bit resolution for accurate analogue to digital conversion across its channels.
This model supports 4 ADC channels, allowing for multiple voltage measurements simultaneously.
The maximum supply voltage for the MCP3424-E/SL is 5.5 V.
It operates reliably within a temperature range of -40°C to 85°C, making it suitable for harsh environments.
The MCP3424-E/SL uses a Serial-I2C interface, facilitating easy integration into embedded systems.
This ADC supports a low sampling rate of 4 samples per second, which is suitable for slow varying signals.
The MCP3424-E/SL comes in a surface mount SOIC package type with 14 pins.
This model complies with the AEC-Q100 automotive standard, ensuring quality assurance for automotive applications.
The dimensions of this ADC are 1.75 mm in height and 8.65 mm in length.
It supports voltage as the input type for its analogue to digital conversion.
The MCP3424-E/SL utilizes Delta Sigma architecture for high precision analogue to digital conversion.
This ADC is suitable for applications in industrial, automotive, laboratory, and embedded systems requiring precise data conversion.
