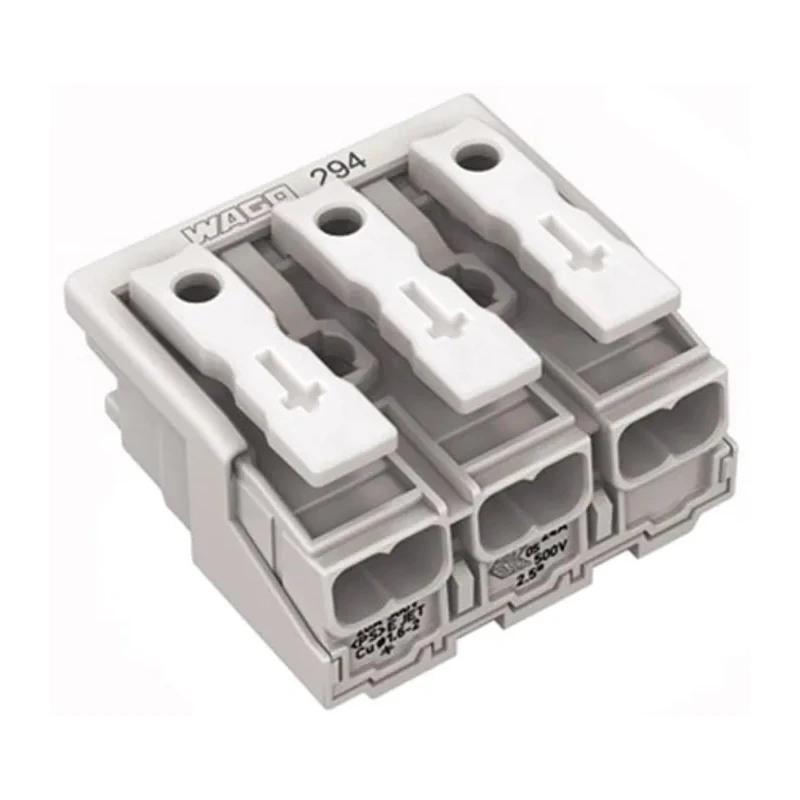

WAGO 294 Series Power Supply Connector Female Push-in 3-Pole 24A 500V 294-4003

WAGO 294-4003 is a 294 Series Power Supply Connector featuring a female push-in termination with 3-pole configuration, rated for 24A current and 500V voltage. This lighting connector is engineered to meet worldwide electrical and safety standards IEC/EN 60998-1 and IEC/EN 60998-2-2, making it suitable for numerous industrial and commercial applications.

The connector offers field-connectable installation with a cage clamp system that accepts solid, stranded, and fine stranded conductors ranging from 0.5 mm² to 2.5 mm² cross section, equivalent to 18 AWG to 12 AWG, ensuring compatibility in American, Japanese, and other markets. The push-in termination design allows quick and secure electrical connections without requiring conductor preparation, improving efficiency on site.

Manufactured with high-quality copper contacts plated with tin, the 294-4003 connector ensures excellent electrical conductivity, corrosion resistance, and prolonged service life. The product also features strain relief for mechanical stability, safeguarding against conductor damage during handling and vibration.

Designed primarily for lighting applications, these connectors also fulfill the household appliance standard IEC/EN 60335-1 requirements for enhanced fire safety and unattended electrical device protection. Their versatility extends to use in HVAC systems, pumps, garden appliances, and white goods, demonstrating broad industrial utility beyond lighting.

Various versions of the 294 series connectors are available, including options with snap-in feet and direct or screw-in PE ground contacts to accommodate different installation requirements.

Female push-in termination for rapid and secure connections. Wide conductor range of 0.5 mm² to 2.5 mm² suitable for global markets. Cage clamp connection allows conductors to be connected without strip preparation. Constructed with copper contacts plated with tin for durability and conductivity.

Complies with IEC/EN 60998-1 and IEC/EN 60998-2-2 standards. Includes strain relief feature for secure conductor mounting. Suitable for lighting, HVAC, pumps, garden equipment, and white goods applications. Versions available with snap-in feet and PE ground contact options.

Choose WAGO 294-4003 Power Supply Connector for a reliable, safe, and versatile lighting connector solution commonly used in commercial, industrial, and residential electrical installations. Explore WAGO connectors and related electrical components on EnvMart.
