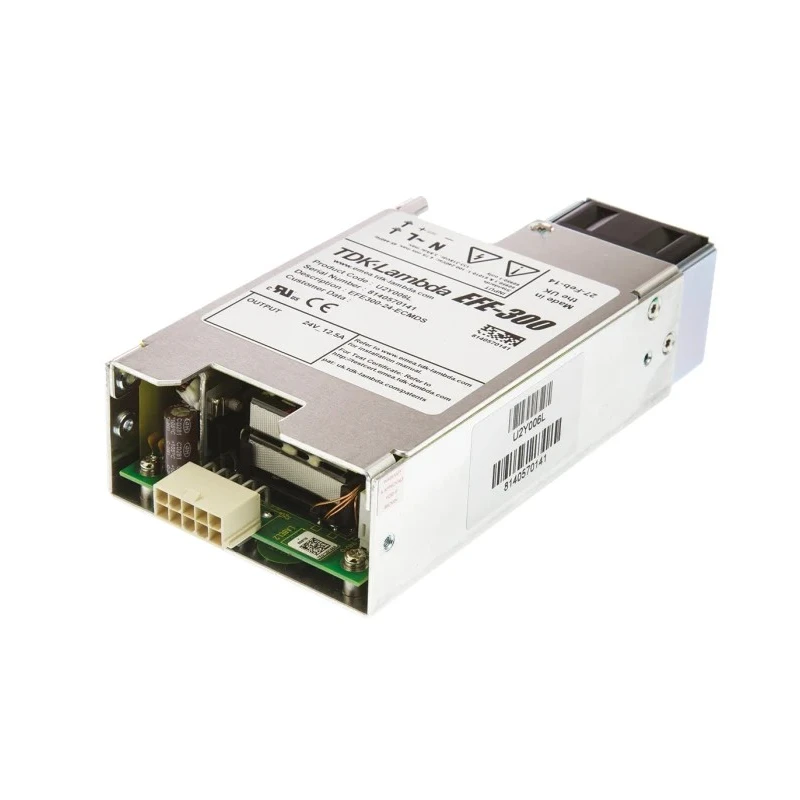

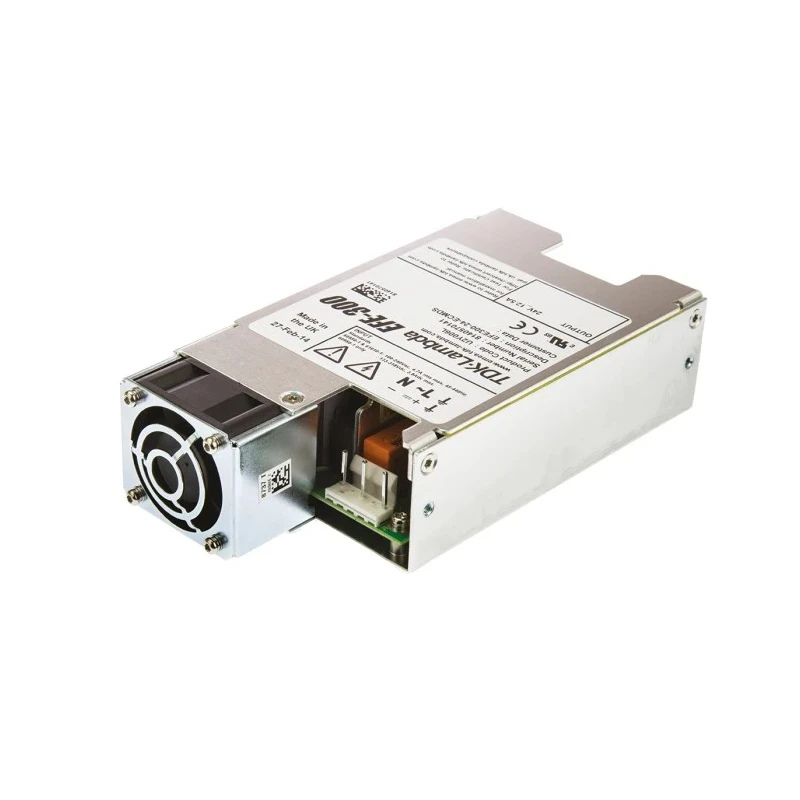

TDK-Lambda Switching Power Supply 24V DC 300W 12.5A Universal Input 90-264V AC 120-350V DC EFE300-24-ECMDS

Free Delivery in India | Lowest Global Shipping Charges

TDK-Lambda Switching Power Supply 24V DC 300W 12.5A Universal Input 90-264V AC 120-350V DC EFE300-24-ECMDS

Name: TDK-Lambda Switching Power Supply 24V DC 300W 12.5A Universal Input 90-264V AC 120-350V DC EFE300-24-ECMDS
Brand: TDK-Lambda
SKU: 205138



Category Switching Power Supplies Brand TDK-Lambda Condition New

Specifications

Country of Origin	United Kingdom
Brand	TDK-Lambda
Power	300W
Efficiency	90%
Length	158mm
Model	EFE300-24-ECMDS
Depth	40.6mm
Gross Weight	550g
Width	84.4mm
Mount Type	PCB
Series	EFE300
Maximum Operating Temperature	70°C
Minimum Operating Temperature	0°C
Number of outputs	1
Maximum Input Voltage	350, 264V dc
Maximum Output Voltage	24V dc
SMPS Output Current	12.5A
Minimum Input Voltage	90V ac

Key Features

Provides single output with a maximum output voltage of 24V DC.
Equipped with universal input voltage range from 90VAC to 264VAC and 120VDC to 350VDC.
Compact PCB mount design with dimensions of 158mm length, 84.4mm width, and 40.6mm depth.
Operates efficiently up to 90% with high power density and low profile for 1U applications.
Features built-in protections including short circuit, overvoltage and overtemperature safeguards.
Designed with a cover, chassis, and temperature controlled fan for reliable performance.
Complies with multiple international standards and approvals including CE, UKCA, FCC, IEC and UL certifications.
Operates within temperature range 0°C to 70°C for safe industrial and laboratory use.

Product Description

TDK-Lambda EFE300-24-ECMDS is a robust 300W embedded switch mode power supply offering a single 24V DC output rated at 12.5A. It supports wide universal input voltages from 90V AC to 264V AC and 120V DC to 350V DC, suitable for diverse industrial, laboratory, and embedded electronics power needs.

This PCB mount device measures 158mm in length, 84.4mm in width, and 40.6mm in depth, fitting within low profile 1U applications where space is critical. Its high power density and 90% efficiency ensure reliable performance and energy savings in demanding environments.

The supply integrates a cover, chassis, and temperature-controlled fan, enhancing durability and thermal management during operation. It is engineered with comprehensive protections against short circuits, overvoltage, and overheating to maintain operational safety and longevity.

Certified to meet international standards such as CE, UKCA, EN 55011-B, EN 55032-B, FCC, IEC 60601-1-2 Ed4, and IEC/UL/CSA/EN 62368-1, this model adheres to strict quality and safety requirements, making it suitable for medical and industrial applications.

Operating temperature ranges from 0°C to 70°C ensure adaptability to various environmental conditions. The EFE300 series design makes it an excellent choice for applications requiring stable, high-current 24V outputs in embedded systems.

Provides single 24V DC output at 300W and 12.5A current. Universal input voltage: 90-264V AC and 120-350V DC. Compact PCB mount with sturdy cover and cooling fan. High efficiency of up to 90% for energy savings. Built-in protections for short circuit, overvoltage, and overheating.

Complies with CE, UKCA, FCC, IEC, UL, and CSA standards. Operational temperature from 0°C to 70°C. Designed for industrial, laboratory, and embedded applications. Explore EnvMart for a broad selection of high-quality Switching Power Supplies and related electronics components to meet your industrial and technical power requirements.
