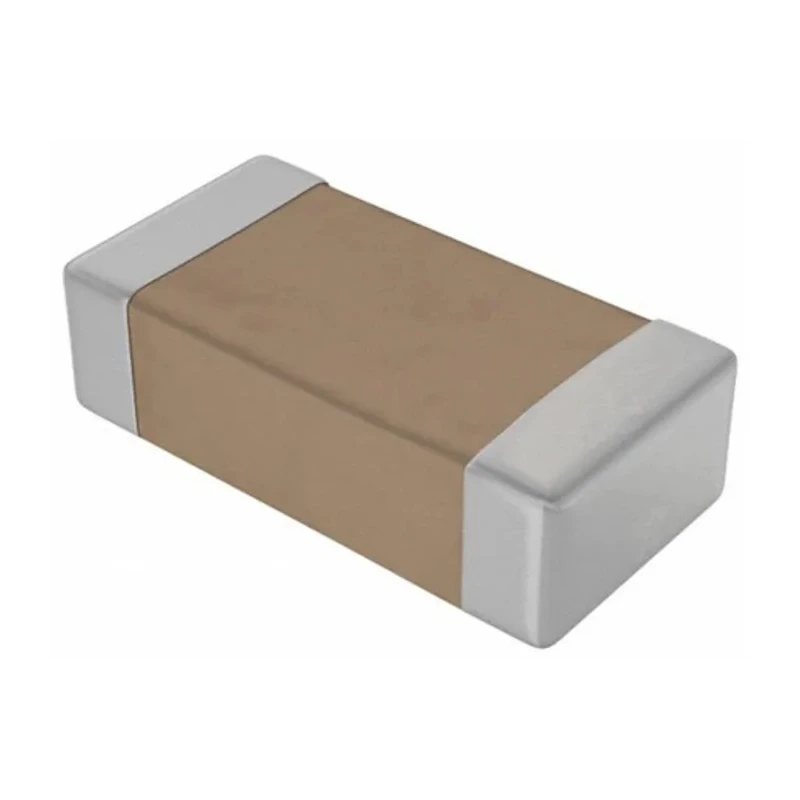

KYOCERA AVX 1 nF Multilayer Ceramic Capacitor 100V dc ±10 % X7R 1206 Surface Mount 12061C102KAT2A

KYOCERA AVX 12061C102KAT2A is a 1 nF Multilayer Ceramic Capacitor designed for electronic components and power connector applications. It operates at 100V dc voltage with a capacitance tolerance of ±10 %, ensuring consistent performance in various electrical circuits. The capacitor uses the X7R dielectric, offering stable dielectric properties over a wide temperature range from -55°C to 125°C, which is suitable for industrial and commercial electronic uses.

This surface mount device comes in a 1206 package (3.2mm length, 1.6mm width, and 0.94mm height), making it ideal for compact PCB layouts requiring high reliability. The KGM series features a Class II suppression rating suitable for decoupling and filtering applications.

The capacitor is supplied in reel packaging suitable for modern automated assembly lines, improving manufacturing efficiency. It is designed for use in industrial electronics, electronic manufacturing, power distribution systems, and consumer electronic devices requiring stable ceramic capacitors.

Features include a surface mount termination for ease of use in SMT equipment and adherence to standard dimensions facilitating compatibility with industry-standard mounting processes. The product does not conform to automotive-specific approvals but is a trusted choice for many other commercial and industrial sectors.

This capacitor offers stable capacitance with an operating voltage of 100V dc. It features a surface mount design with a 1206 package size for compact PCB applications. Dielectric material is X7R, suitable for temperature ranges from -55°C to 125°C.

Capacitance tolerance is ±10 %, ensuring reliable performance in circuit applications. The series is KGM with dimensions of 3.2mm length, 1.6mm width, and 0.94mm height. This Class II capacitor meets general industrial application requirements but does not comply with automotive standards.

Packaging is supplied on a reel, facilitating automated manufacturing processes. Termination type is surface mount enabling easy assembly and soldering. Explore more in the multlayer ceramic capacitor category on EnvMart for reliable components suitable for various industrial and electronic applications.
