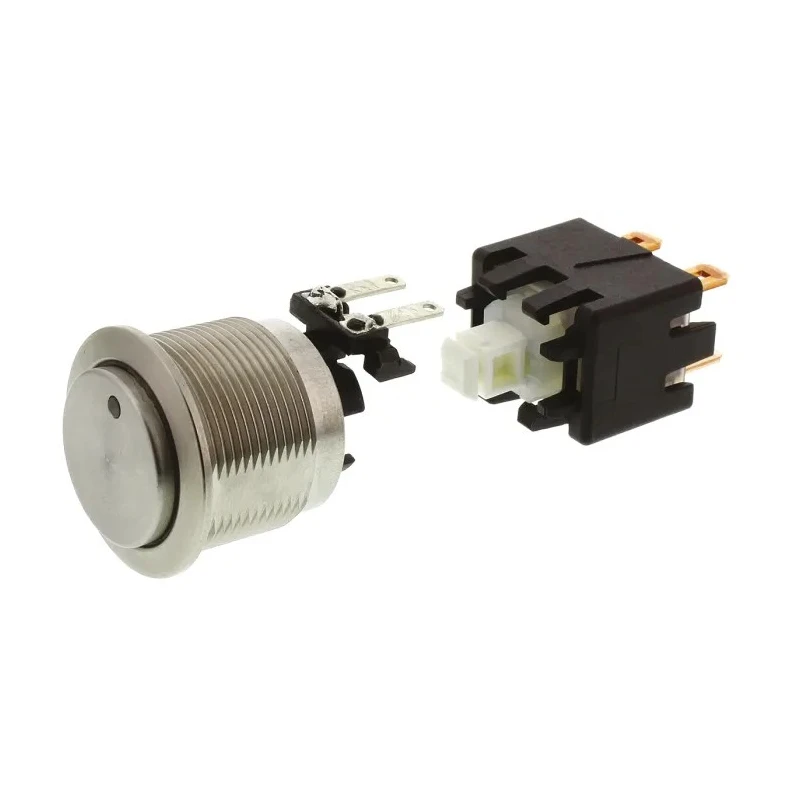

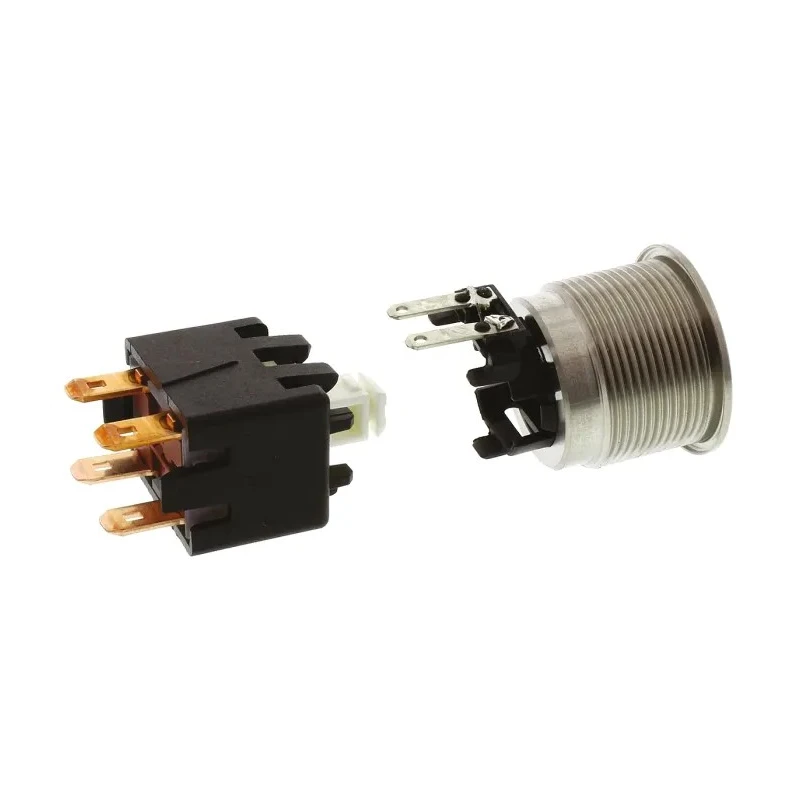

Schurter MSM LA 19 Series Illuminated Push Button Switch, Latching, Panel Mount, 22 mm Cutout, DPDT, Blue 1241.6833.1124000

Name: Schurter MSM LA 19 Series Illuminated Push Button Switch, Latching, Panel Mount, 22 mm Cutout, DPDT, Blue 1241.6833.1124000
Brand: Schurter
SKU: 217524
Price: 48.16 USD
Availability: InStock



Category Push Button Switch Brand Schurter Condition New

Specifications

Country of Origin	India
Brand	Schurter
IP Rating	IP00, IP64
Mount Type	Panel
Series	MSM LA 19
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Minimum Operating Temperature	-25°C
Panel Cutout Size	22 mm
Terminal type	Tab
Standards/Approvals	UL, RoHS, IEC, CSA
LED Colour	Blue
Switch Operation	Latching
Actuator Colour	Natural
Contact DC Voltage	30V dc
Actuator Style	Button
Switch Contact Current	12A

Key Features

Robust pushbutton switch suitable for panel mounting with a 22 mm cutout diameter.
Latching switch operation with push-on, push-off functionality.
Double-pole double-throw (DPDT) contact configuration rated for 12A.
Blue LED illumination with IP00 and IP64 protection ratings.
Operates at 30 V dc contact voltage with a stainless steel housing.
Shock resistant with IK07 rating, suitable for harsh environments.
Operating temperature range from -25°C to 85°C.
Actuator requires 10N operating force and has 4.5 mm travel.

Product Description

Schurter 1241.6833.1124000 MSM LA 19 Series Illuminated Push Button Switch is designed for industrial and commercial electrical control applications requiring reliable and robust pushbutton solutions. This latching push button switch is panel mounted with a 22 mm cutout, making it ideal for control panels and automation systems.

The switch features a double-pole double-throw (DPDT) contact configuration with a 12A current rating at 30 V dc, suitable for controlling multiple circuits. The blue LED illumination provides clear visual feedback on switching status, with a wide viewing angle of 180°. The switch housing offers IP00 and enhanced IP64 ingress protection, safeguarding the unit against dust and water spray, while the stainless steel construction delivers excellent durability and IK07 shock resistance for harsh environments.

The actuator is a button style with a 10 Newton operating force and 4.5 mm travel distance, protruding 3.7 mm above the panel when in the off state. Installation is simplified through the use of quick connect terminals. The switch has a robust mechanical lifespan of up to 150,000 operations, ensuring long-term reliability in demanding industrial settings.

This product complies with major international standards including UL, RoHS, IEC, and CSA certifications, reinforcing quality and safety credentials.

Applications include electrical panel control, automation machinery, industrial control stations, and other manufacturing or laboratory equipment requiring reliable manual operator input with visual LED feedback. The switch's high ingress and impact resistances make it well suited for harsh and outdoor environments.

Robust pushbutton switch with stainless steel housing and IK07 shock resistance. Latching mechanism with push-on, push-off operation provides dependable control. Double-pole double-throw (DPDT) contacts rated up to 12A at 30V dc.

Blue LED illumination with wide viewing angle and IP00/IP64 protection ratings. Quick connect terminals for simplified installation and maintenance. Operating temperature range from -25°C to 85°C ensures reliable performance.

Long mechanical life with up to 150,000 operations. Certified to UL, RoHS, IEC, and CSA standards for global compliance. Explore more high-quality Push Button Switches from Schurter and other industrial electrical components at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a double-pole double-throw (DPDT) contact configuration, allowing it to control multiple circuits effectively.

The switch is rated for a maximum current of 12A at a contact voltage of 30V dc.

It operates within a temperature range of -25°C to 85°C, making it suitable for various environments.

It features blue LED illumination, which offers clear visual feedback on the switching status with a wide viewing angle of 180°.

This model has IP00 and IP64 ingress protection ratings, providing resistance against dust and water spray.

The required cutout size for panel mounting is 22 mm in diameter.

The actuator style is a button, requiring an operating force of 10 Newtons with a travel distance of 4.5 mm.

Installation is simplified through the use of quick connect terminals, making it easier to set up and maintain.

This switch has a robust mechanical lifespan of up to 150,000 operations, ensuring long-term reliability.

It complies with several international standards including UL, RoHS, IEC, and CSA, reinforcing its quality and safety credentials.

The switch is suitable for harsh environments, including industrial control stations and outdoor applications, due to its shock resistance and ingress protection.

When in the off state, the actuator protrudes 3.7 mm above the panel surface.
