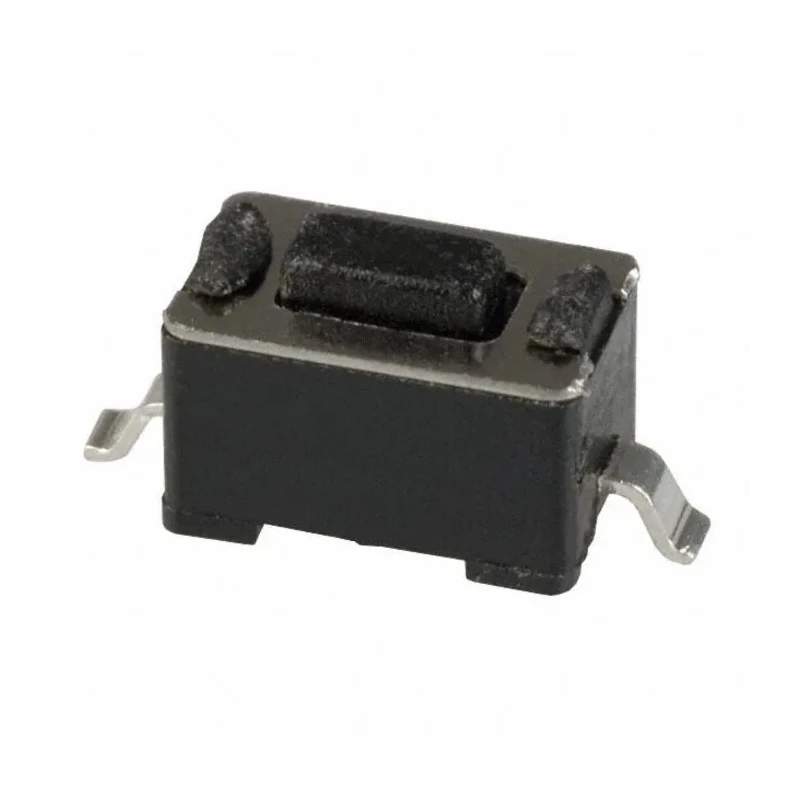

C & K IP45 Black Tactile Switch Button 3 mm 50mA 250V AC 12V DC Surface Mount PTS635SL43SMTR LFS

Name: C & K IP45 Black Tactile Switch Button 3 mm 50mA 250V AC 12V DC Surface Mount PTS635SL43SMTR LFS
Brand: C & K
SKU: 204345
Price: 0.52 USD
Availability: InStock



Category Tactile Switch Brand C & K Condition New

Specifications

Country of Origin	China
Brand	C & K
Height	2mm
Length	6mm
Model	PTS635SL43SMTR LFS
IP Rating	IP45
Width	3.5mm
Mount Type	Surface Mount
Series	PTS
Maximum Operating Temperature	60°C
Contact Configuration	SPST
Switch Configuration	(On)-Off
Minimum Operating Temperature	-40°C
Terminal type	Terminal
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Black
Actuator Length	3mm
Contact DC Voltage	12V dc
Actuator Style	Button
Actuator Orientation	Straight
Switch Contact Current	50mA
Operating Force	1.3N
Mechanical Life	200000Cycles
Contact AC Voltage	250V ac

Key Features

The switch operates at 50mA current rating for 250V AC and 12V DC voltages.
It features an IP45 rating ensuring protection against dust and water spray.
The actuator style is a straight, black button with a 3 mm length and overall dimensions of 6 mm by 3.5 mm.
Designed with silver plated contacts for durability and extended mechanical life of 200,000 cycles.
The switch has an operating force of 1.3N and supports a temperature range from -40°C to 60°C.
This surface mount switch is ideal for instrumentation, industrial, consumer electronics, and computer product applications.
The switch complies with RoHS standards and is made in China.

Product Description

The C & K PTS635SL43SMTR LFS is a high-quality IP45 rated tactile switch button designed for compact surface mount electronic applications, featuring a reliable SPST momentary switch operation. It has a black, straight button actuator measuring 3 mm in length, with overall dimensions of 6 mm length, 3.5 mm width, and 2 mm height, making it suitable for installations where space constraints exist.

The switch supports a contact current rating of 50mA and contact voltages of 250V AC and 12V DC. It provides mechanical durability with an expected life of up to 200,000 actuations and a consistent operating force of 1.3N, ensuring precise tactile feedback. The silver plated contacts enhance conductivity and longevity.

With its IP45 ingress protection, this switch is resistant to dust ingress and water spray from any direction, increasing its reliability in challenging environments. The operating temperature range from -40°C to 60°C further broadens its usability across various industrial, instrumentation, consumer electronics, and computer equipment contexts.

The PTS635 series, including this model, offers a compact footprint with a variety of switch heights and design options, tailored for diverse mounting requirements and functional demands. Its compliance with RoHS ensures environmentally sound manufacturing practices.

The switch operates at 50mA current rating for 250V AC and 12V DC voltages. It features an IP45 rating ensuring protection against dust and water spray. The actuator style is a straight, black button with a 3 mm length and overall dimensions of 6 mm by 3.5 mm.

Designed with silver plated contacts for durability and extended mechanical life of 200,000 cycles. The switch has an operating force of 1.3N and supports a temperature range from -40°C to 60°C. This surface mount switch is ideal for instrumentation, industrial, consumer electronics, and computer product applications.

The switch complies with RoHS standards and is made in China.

This tactile switch from C & K is a reliable component choice for manufacturers and engineers requiring a compact, durable, and high-performance momentary switch suitable for various electrical and electronic devices. Explore more in the Tactile Switch category at EnvMart for matching components and accessories.
