C & K IP40 Gold Tactile Switch Button Surface Mount SPST 50mA 12V dc Momentary Actuator IP40

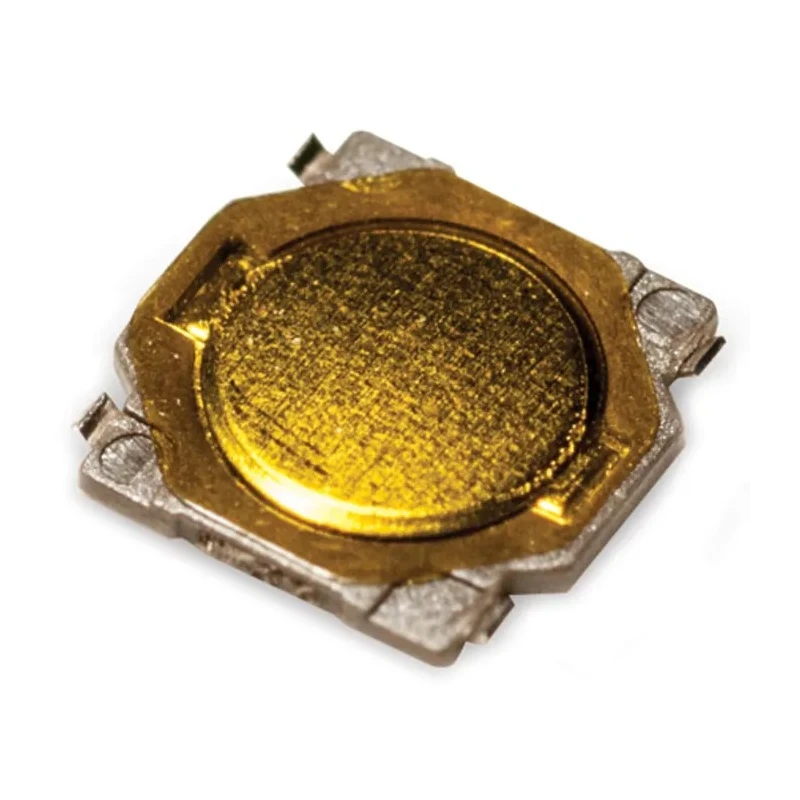

C & K PTS540 JK035 SMTR LFS IP40 Gold Tactile Switch Button is a surface mount switch designed for electronic applications requiring a compact tactile control interface. With a 3.7 mm by 3.7 mm dimension and a 2 mm height, it fits into tight spaces commonly found in consumer electronics, remote controls, and portable audio devices.

This SPST momentary switch operates reliably with a 50mA current at 12V dc, making it ideal for low-voltage signaling circuits. The J bend terminal configuration assists in simplified PCB mounting and soldering. The switch's actuator is gold in color, styled as a button with a straight orientation, offering tactile feedback with an operating force of 2.3 Newtons.

Constructed to endure a mechanical life of 500,000 operations, this switch guarantees reliability and durability for extended use. Its IP40 rating ensures protection from solid foreign objects larger than 1mm, suitable for indoor or protected environments. It functions in a temperature range from -30°C to 85°C, suitable for various industrial and consumer applications.

The switch employs silver-plated contacts for corrosion resistance and optimal electrical conductivity. Applications include remote controls, Bluetooth headsets, and MP3 accessories where tactile input is critical. The compact form factor and low profile of 0.35 mm thickness in the switch height make it especially valuable in space-constrained designs.

The switch includes a J bend terminal type for secure connections. It has a mechanical life of 500,000 operations for long-lasting durability. Operating temperature range spans from -30°C to 85°C, suitable for varied environments.

The IP40 rating offers protection against solid objects larger than 1mm. Requires an operating force of 2.3N for actuation, with a 0.35 mm thickness footprint. Silver-plated contacts provide effective conductivity and corrosion resistance.

Designed for remote controls, Bluetooth headsets and MP3 accessories. Features gold-colored actuator for improved aesthetics and tactile feedback.
