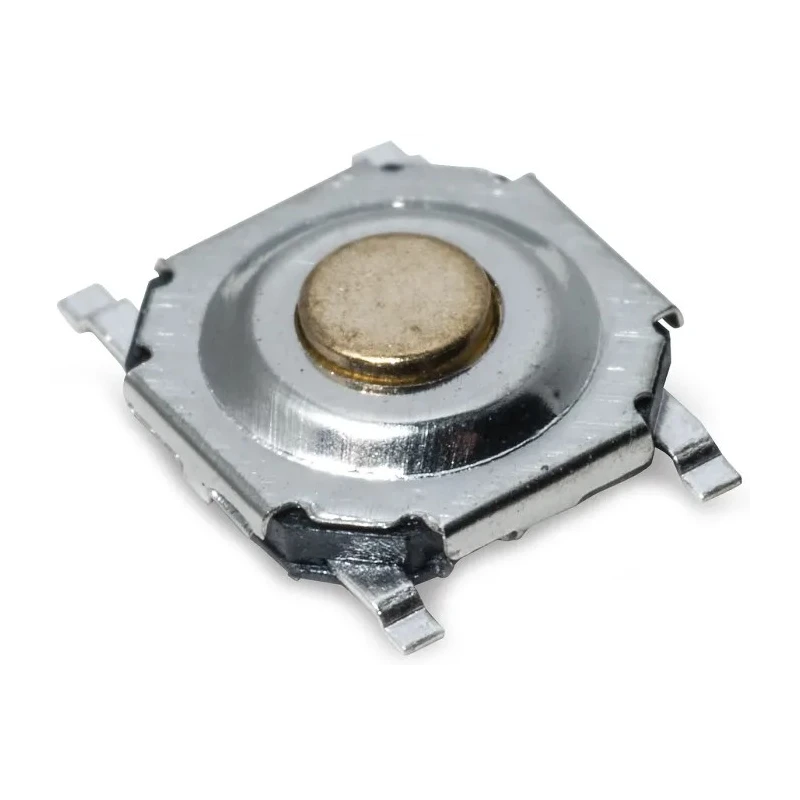

C & K Gold Tactile Switch Button SPST 20mA 15 V dc Surface Mount IP40

Name: C & K Gold Tactile Switch Button SPST 20mA 15 V dc Surface Mount IP40
Brand: C & K
SKU: 204303
Price: 0.41 USD
Availability: InStock



Category Tactile Switch Brand C & K Condition New

Specifications

Country of Origin	China
Brand	C & K
Height	2mm
Length	5.1mm
Model	IP40
IP Rating	IP40
Width	5.1mm
Mount Type	Surface
Series	PTS
Maximum Operating Temperature	70°C
Contact Configuration	SPST
Switch Configuration	(On)-Off
Minimum Operating Temperature	-20°C
Terminal type	Gull Wing
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Gold
Contact DC Voltage	15V dc
Actuator Style	Button
Actuator Orientation	Straight
Switch Contact Current	20mA
Operating Force	2.6N
Mechanical Life	200000Cycles
C & K IP40 Gold Tactile Switch Button, SPST 20mA 12 V dc, SurfaceBrand	C & K

Key Features

The switch features a gold-colored button actuator with straight orientation.
The compact dimensions are 5.1 mm length and 5.1 mm width with a height of 2 mm.
It has an operating force of 2.6 N and mechanical life of 200,000 cycles.
The IP40 rating provides protection suitable for limited protection against solids.
The switch operates reliably within a temperature range from -20°C to 70°C.
Its contact configuration is SPST with (On)-Off switch configuration and momentary operation.
The switch body is surface mounted with gull wing terminations for SMT applications.
This component is RoHS compliant and made in China.

Product Description

The C & K IP40 Gold Tactile Switch Button, model PTS525 SKG15 SMTR2 LFS, is a rugged microminiature SMT tactile switch designed for precise electronic control applications. It supports a single pole single throw (SPST) contact configuration with a momentary switch operation, ideal for switching low current circuits up to 20mA at 15 V dc.

This tactile switch features a gold-colored button actuator with a straight orientation and a compact form factor of 5.1 x 5.1 mm footprint and a height of 2 mm, making it suitable for space-constrained electronic devices. The switch has a surface mount design with gull wing terminals, enabling easy integration into PCB assembly processes.

Designed to withstand demanding industrial and consumer electronics usage, the switch offers an operating force of 2.6 N ensuring tactile feedback. Its robust construction guarantees a mechanical lifespan of 200,000 cycles, providing long-term reliability in instrumentation, remote controls, and other control interfaces.

The IP40 rating indicates practical protection from solid objects larger than 1 mm, suitable for indoor environments. Operating temperature range from -20°C to 70°C ensures dependable performance over a wide range of conditions.

Momentary SPST switch operation for precise input control. Compact 5.1 x 5.1 mm size with 2 mm height for space-saving design. Gold actuator with straight orientation for durability and consistent tactile feel. Gull wing surface mount terminals designed for reliable PCB mounting.

High mechanical life of 200,000 cycles for extended usage. RoHS compliant for environmental and safety standards adherence. Suitable for applications in remote controls, instrumentation, and consumer electronics.

Manufactured in China, this switch balances quality and cost-efficiency for varied industrial and commercial electronic products. Explore more C & K Tactile Switches and related components at EnvMart for your specific electronic design and manufacturing needs.
