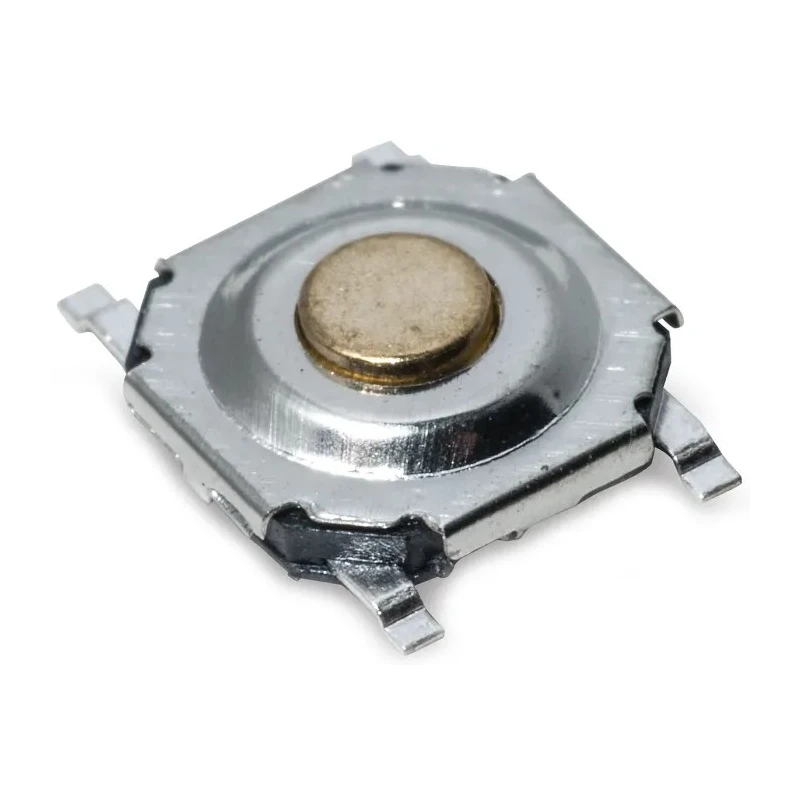

C & K Gold Tactile Switch Button, SPST 20mA 12 V dc, Surface Mount IP40

Name: C & K Gold Tactile Switch Button, SPST 20mA 12 V dc, Surface Mount IP40
Brand: C & K
SKU: 204302
Price: 0.69 USD
Availability: InStock



Category Tactile Switch Brand C & K Condition New

Specifications

Country of Origin	China
Brand	C & K
Height	2mm
Length	5.1mm
Model	IP40
IP Rating	IP40
Width	5.1mm
Mount Type	Surface
Series	PTS
Maximum Operating Temperature	70°C
Contact Configuration	SPST
Switch Configuration	(On)-Off
Minimum Operating Temperature	-20°C
Terminal type	Gull Wing
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Gold
Contact DC Voltage	12V dc
Actuator Style	Button
Actuator Orientation	Straight
Switch Contact Current	20mA
Operating Force	2.6N
Mechanical Life	200000Cycles

Key Features

This switch features a gold actuator button with a straight orientation for precise operation.
The compact 5.1 mm by 5.1 mm size makes it suitable for space-limited applications.
It has a mechanical life of up to 200000 cycles ensuring durability.
Operating force is 2.6 N with a height of 2 mm.
Designed for temperature range from -20°C to 70°C, supporting reliable operation in various environments.
Mount type is surface with gull wing terminals for SMT.
The switch carries RoHS certification and is manufactured in China.
Its IP40 rating provides protection against solid objects over 1 mm while not waterproof.

Product Description

C & K PTS525 SK15 SMTR2 LFS Gold Tactile Switch Button is a rugged microminiature tactile switch designed for surface mount applications. Featuring a compact 5.1 mm by 5.1 mm footprint and a height of 2 mm, it is ideal where space is limited.

This switch operates with a momentary SPST (single pole single throw) contact configuration and supports a maximum contact current of 20mA at 12 V dc. The actuator is styled as a gold button with straight orientation, providing a reliable tactile response with an operating force of 2.6 N.

With an operating temperature range from -20°C to 70°C and an IP40 ingress protection rating, the switch is well suited for a range of industrial and consumer electronics environments. It is designed for a mechanical life of 200000 cycles, which ensures longevity in demanding applications.

Mounting is surface type with gull wing SMT terminals, enabling efficient assembly on printed circuit boards. The switch meets RoHS compliance, supporting environmentally conscious manufacturing requirements.

Typical applications include remote control devices, instrumentation panels, and other consumer electronics requiring compact tactile input devices. Gold actuator button for corrosion resistance and reliability. Compact size ideal for space-constrained designs.

Long mechanical life up to 200000 cycles. RoHS compliant ensuring environmental safety. Surface mount with gull wing terminals for SMT PCB assembly. Wide operating temperature range from -20°C to 70°C. IP40 protection rating guarding against solid particle ingress.

Momentary SPST operation for precise tactile input. Application range includes consumer electronics and instrumentation.

Explore the full range of C & K Tactile Switches available on EnvMart for industrial, commercial, and laboratory electronics solutions. The PTS525 SK15 SMTR2 LFS model represents a durable, compact switch for diverse tactile control needs.
