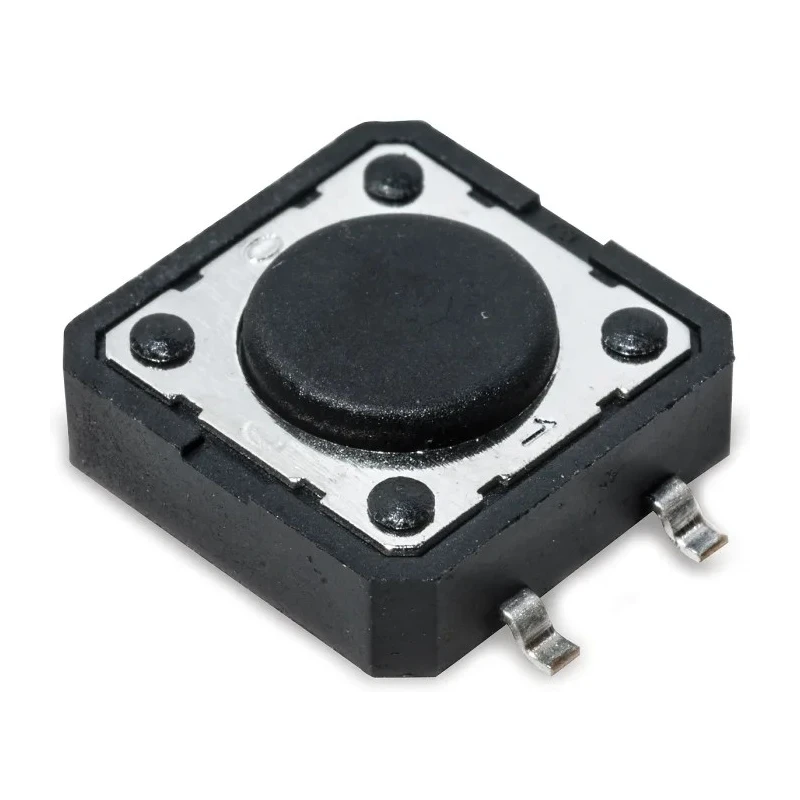

C & K IP40 Black Tactile Switch Button SPST 50mA 12V dc Through Hole

Name: C & K IP40 Black Tactile Switch Button SPST 50mA 12V dc Through Hole
Brand: C & K
SKU: 204300
Price: 0.61 USD
Availability: InStock



Category Tactile Switch Brand C & K Condition New

Specifications

Country of Origin	China
Brand	C & K
Height	2mm
Length	12mm
Model	IP40
IP Rating	IP40
Width	12mm
Mount Type	Through Hole
Series	PTS
Maximum Operating Temperature	70°C
Contact Configuration	SPST
Switch Configuration	(On)-Off
Minimum Operating Temperature	-20°C
Terminal type	Terminal
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Black
Contact DC Voltage	12V dc
Actuator Style	Button
Actuator Orientation	Straight
Switch Contact Current	50mA
Operating Force	1.8N
Mechanical Life	200000Cycles
C & K IP40 Black Tactile Switch Button, SPST 50mA 12 V dc, Through HoleBrand	C & K

Key Features

The button operates at 12V DC with a switch contact current of 50mA.
Compact size measures 12mm by 12mm with a height of 2mm.
Operating temperature range from -20°C to 70°C suitable for various environments.
Momentary switch operation and straight actuator orientation for precise tactile feedback.
Made with silver-plated contacts for reliability and durability in electrical applications.
Mechanical life rating of 200,000 cycles ensuring long-term performance.
RoHS compliant, meeting environmental and safety standards.

Product Description

C & K PTS125SM43-2 LFS tactile switch button is a black, 12mm by 12mm and 2mm high momentary switch designed for through-hole mounting with IP40 protection rating. It features an SPST (single pole single throw) contact configuration capable of handling a maximum contact current of 50mA at 12V DC. The switch actuator is a straight button which provides reliable momentary electrical connections.

Constructed with silver-plated contacts, the switch ensures superior conductivity and durability. The operating force required to actuate is 1.8N, enabling precise tactile feedback suitable for user interface controls. The switch supports an operating temperature range from -20°C to 70°C, making it ideal for instrumentation, consumer electronics, industrial controls, and computer peripherals.

This tactile switch conforms to RoHS standards, ensuring it is free from hazardous substances. It is part of the PTS series and offers a mechanical life expectancy of 200,000 cycles, providing long-lasting and robust performance for demanding applications. Its compact dimensions and through-hole mounting style make it suitable for PCB mounting in space-constrained designs.

Typical applications include electronic instrumentation, industrial control panels, consumer product interfaces, and computer accessories. The switch's IP40 rating provides protection against solid objects larger than 1mm, suitable for indoor usage where dust and debris protection is required.

Momentary operation with SPST contact configuration for simple ON/OFF control. Compact 12mm x 12mm size with 2mm height is suitable for low-profile applications. Silver-plated contacts ensure reliable electrical connection and longevity.

Wide operating temperature range of -20°C to 70°C supports varied environmental conditions. Mechanical life of 200,000 cycles guarantees durability in repeated use scenarios. Compliant with RoHS standards supporting environmental safety regulations.

The C & K PTS125SM43-2 LFS Tactile Switch button is an excellent choice for precision and reliability in electrical switching applications, broadly utilized in industrial, consumer electronics, and instrumentation sectors. Browse the Electronics & Electricals category at EnvMart for more high-quality switches and tactile components from C & K and other trusted brands.
