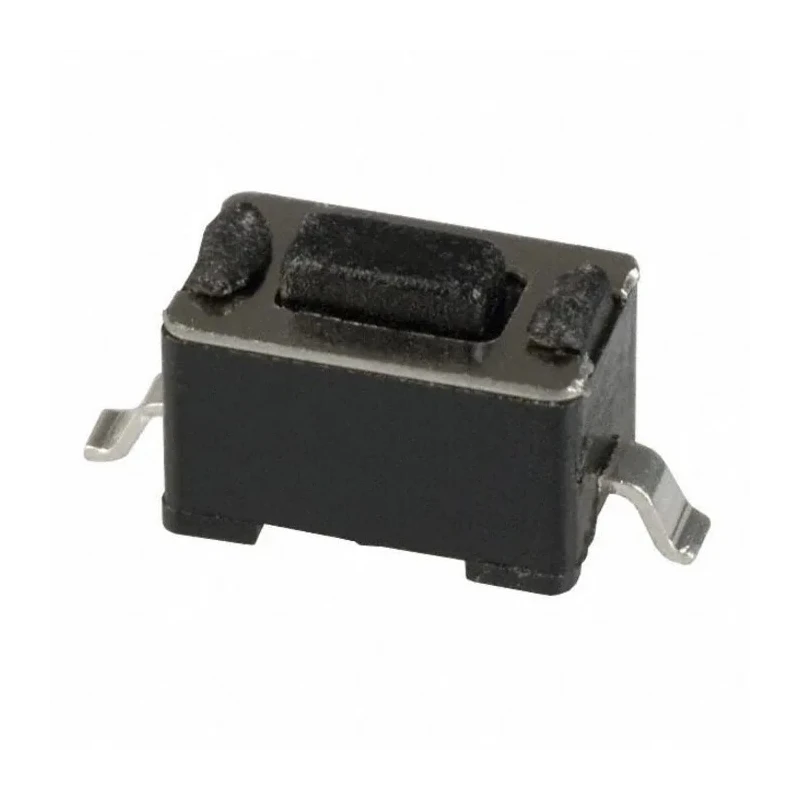

C & K IP45 Black Tactile Switch Button 3 mm, SPST 50mA, 250 V AC 12 V DC, Surface Mount PTS635SL43SMTR LFS

Name: C & K IP45 Black Tactile Switch Button 3 mm, SPST 50mA, 250 V AC 12 V DC, Surface Mount PTS635SL43SMTR LFS
Brand: C & K
SKU: 204298
Price: 0.43 USD
Availability: InStock



Category Tactile Switch Brand C & K Condition New

Specifications

Country of Origin	China
Brand	C & K
Height	2mm
Length	6mm
Model	PTS635SL43SMTR LFS
IP Rating	IP45
Width	3.5mm
Mount Type	Surface Mount
Series	PTS
Maximum Operating Temperature	60°C
Contact Configuration	SPST
Switch Configuration	(On)-Off
Minimum Operating Temperature	-40°C
Terminal type	Terminal
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Black
Actuator Length	3mm
Contact DC Voltage	12V dc
Actuator Style	Button
Actuator Orientation	Straight
Switch Contact Current	50mA
Operating Force	1.3N
Mechanical Life	200000Cycles
Contact AC Voltage	250V ac

Key Features

Rated for 50mA switch contact current and 250V AC, 12V DC voltage applications.
Features a momentary (On-Off) switch operation with a straight button actuator style.
Compact dimensions of 6 mm length, 3.5 mm width, and 2 mm height.
Constructed for a mechanical life of up to 200,000 cycles with silver plated contacts.
Operates reliably between -40°C to 60°C ambient temperatures.
Designed with IP45 ingress protection for reliable performance in challenging environments.
Ideal for use in instrumentation, computer products, consumer electronics, and industrial applications.
Surface mount design enables easy PCB integration in compact devices.

Product Description

The C & K PTS635SL43SMTR LFS tactile switch button is engineered for high-reliability switching in compact electronic designs, offering robust IP45 protection against dust and water ingress. With a compact form factor measuring 6 mm by 3.5 mm by 2 mm, and a 3 mm black actuator button, this tactile switch provides precise momentary contact suitable for a variety of industrial, instrumentation, consumer electronics, and computer products.

This switch features a single-pole, single-throw (SPST) configuration rated at 50mA current and supports AC voltages up to 250V and DC voltages up to 12V, ensuring versatility across diverse electrical environments. The momentary switch action and silver plated contacts ensure low contact resistance and extended operational life, achieving up to 200,000 mechanical cycles.

The operating temperature range of -40°C to +60°C and the robust IP45 rating make it suitable for demanding conditions where environmental protection is essential. The surface mount design facilitates ease of installation on printed circuit boards in space-limited applications, making it a preferred choice for manufacturers requiring compact and reliable input components.

Rated for 50mA switch contact current and 250V AC, 12V DC voltage applications. Momentary On-Off SPST configuration with a black button actuator. Compact dimensions with a 3 mm actuator length and overall size of 6 mm by 3.5 mm by 2 mm height.

Silver plated contacts for reliable electrical performance and long mechanical life. Operates in temperatures ranging from -40°C to 60°C with IP45 protection rating. Surface mount package suitable for integration in electronic devices.

Applications include instrumentation, consumer electronics, computers, and industrial control systems. Explore EnvMart for a wide range of Tactile Switches and electrical components suitable for your industrial, automation, and electronics manufacturing needs.
