C & K IP67 Clear Flush Tactile Switch Surface Mount SPST 50mA 32V dc

Free Delivery in India | Lowest Global Shipping Charges

C & K IP67 Clear Flush Tactile Switch Surface Mount SPST 50mA 32V dc

Name: C & K IP67 Clear Flush Tactile Switch Surface Mount SPST 50mA 32V dc
Brand: C & K
SKU: 204296
Price: 0.37 USD
Availability: InStock



Category Tactile Switch Brand C & K Condition New

Specifications

Country of Origin	France
Brand	C & K
Height	3.5mm
Length	6.8mm
Model	IP67
IP Rating	IP67
Width	6.8mm
Mount Type	Surface
Series	KSC
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	(On)-Off
Minimum Operating Temperature	-40°C
Terminal type	J Bend
Standards/Approvals	RoHS
Switch Operation	Momentary
Contact DC Voltage	32V dc
Actuator Style	Flush
Actuator Orientation	Straight
Switch Contact Current	50mA
Operating Force	1.8N
Mechanical Life	300000Cycles

Key Features

The switch features a momentary operation with a straight actuator orientation.
It has an IP67 rating, ensuring water and dust resistance.
Compact dimensions with a 6.8mm length and width and 3.5mm height make it suitable for space-constrained PCB applications.
Operating force is 1.8N with a mechanical life of 300,000 cycles.
Suitable for automotive, industrial electronics, mobile phones, network infrastructure, and tactile interface use cases.
Terminal type is J Bend for easy surface mounting.
Operates reliably between -40°C and 85°C temperature range.
RoHS compliant ensuring environmental standards.

Product Description

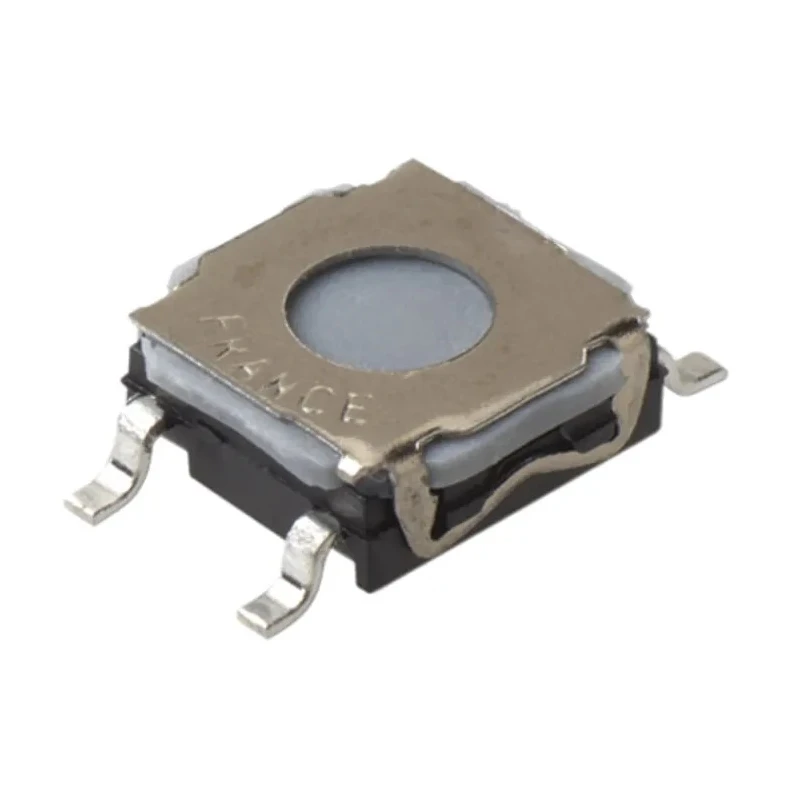

C & K KSC121J LFS tactile switch is a high-quality, IP67-rated clear tactile switch designed for surface mounting on printed circuit boards. It features a flush actuator style with a positive tactile feeling, ideal for applications requiring compact and reliable switch input.

This SPST (Single Pole Single Throw) switch supports a contact current of 50mA at a DC voltage of 32V, offering precise momentary on-off operation through a straight actuator orientation and J Bend terminal type.

The switch dimensions of 6.8mm length, 6.8mm width, and a low profile height of 3.5mm make it suitable for space-limited designs such as automotive electronics, industrial control panels, mobile phones, and network infrastructure devices.

It is built to withstand harsh environments with an IP67 rating protecting against dust and water ingress, and reliable operation from -40°C to 85°C. The mechanical life expectancy is rated at 300,000 cycles, ensuring long-term durability and performance.

Manufactured in France under stringent quality controls, this switch is RoHS compliant, supporting environmentally friendly electronics design. The KSC1 series is known for its ultra-low current consumption and compact form factor.

Positive tactile feedback provides operator assurance during use. Ideal for applications requiring reliable momentary switching with environmental sealing. Surface mount design simplifies assembly and integration onto modern PCBs.

Supplied without an actuator, allowing customization to specific use cases. Explore the C & K Tactile Switch range at EnvMart for high-performance and reliable switching solutions in industrial, automotive, and communication electronics.
