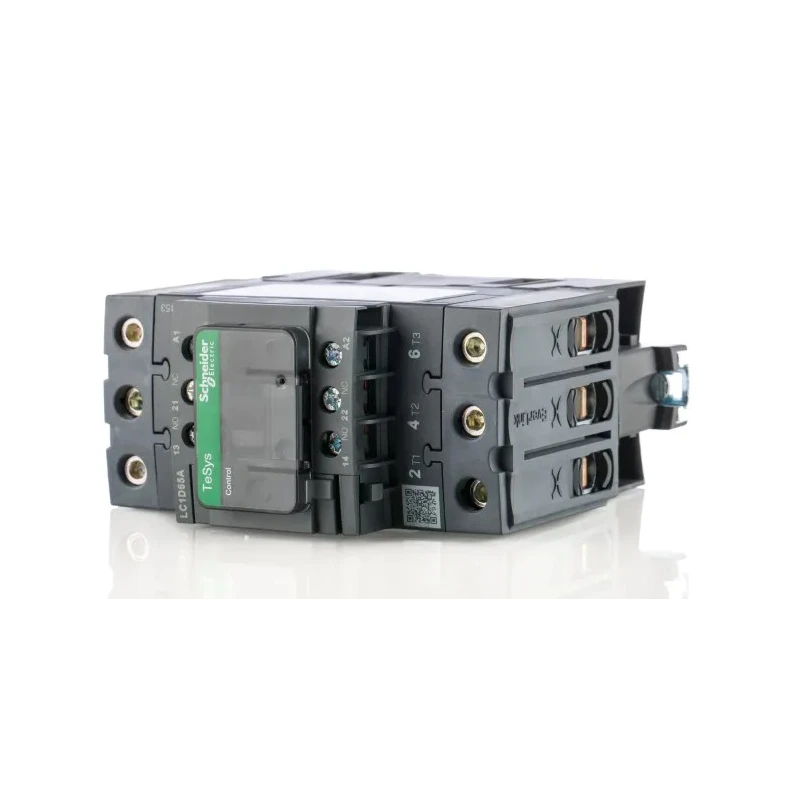

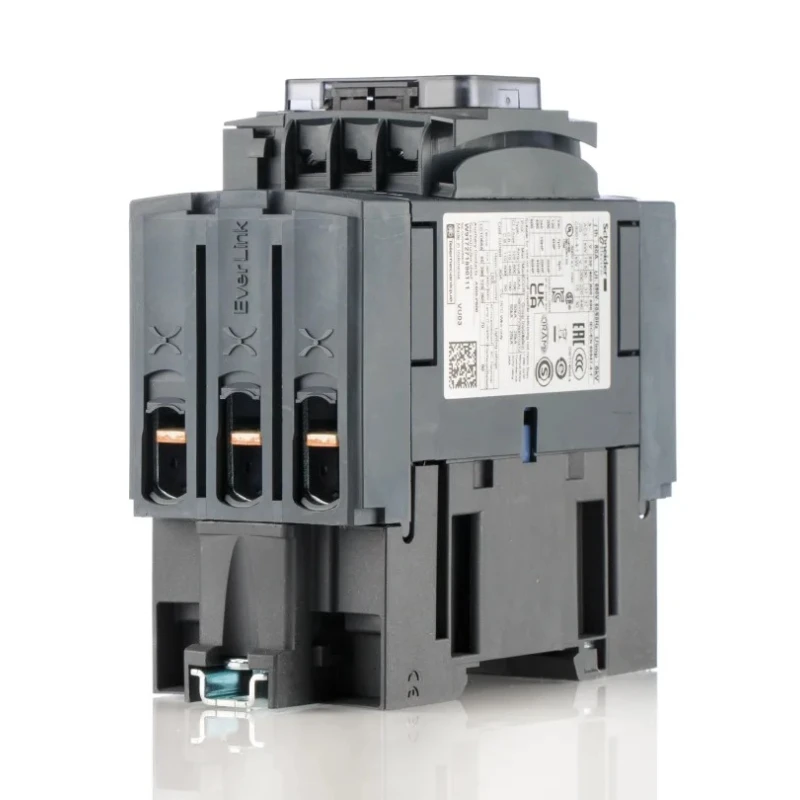

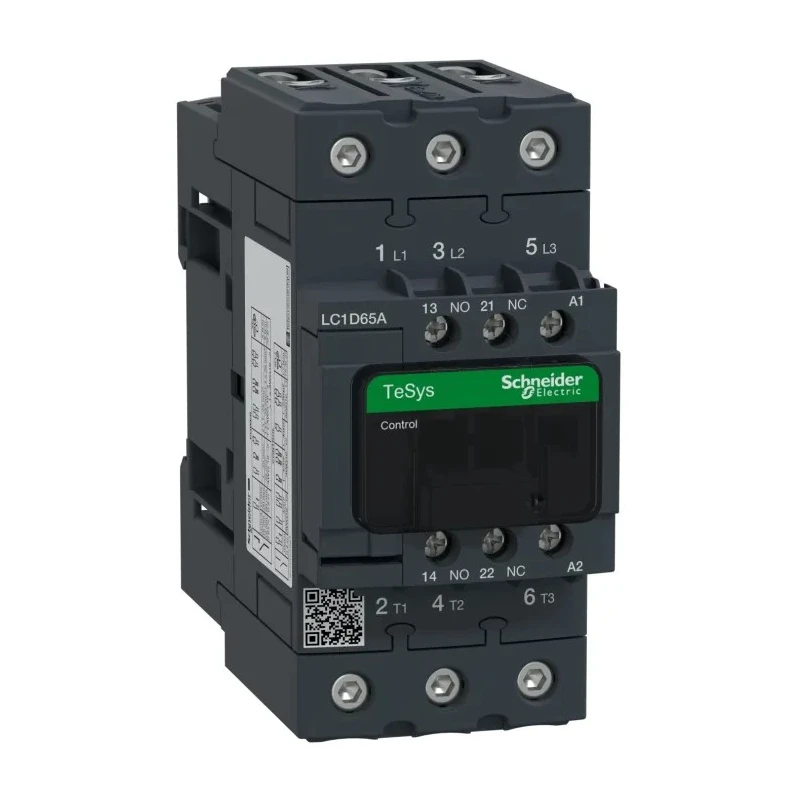

Schneider Electric LC1D Contactor 230V AC Coil, 3-Pole, 65 A Current, 30 kW Power Rating LC1D65AP7
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 122mm |
| Model | LC1D65AP7 |
| Depth | 120mm |
| Width | 55mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 30kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | UL, RoHS, IEC, EAC, CSA, CCC |
| Contact Voltage | 690V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 65A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 65A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
Key Features
- Operates with a coil voltage of 230V AC for efficient motor control.
- Features 3 poles with 3 NO contact configuration for versatile switching.
- Handles a high contact current of 65A and power rating of 30 kW at 230V AC.
- Designed for mounting on DIN rails, allowing easy installation.
- Suitable for operation in temperatures from -40°C up to 60°C, ensuring durability.
- Equipped with 1 NO and 1 NC auxiliary contacts for additional control functions.
- Constructed with screw clamp terminals for secure and straightforward wiring.
- Supports operational contact voltage up to 690V AC for high-capacity use cases.
Product Description
Schneider Electric LC1D65AP7 is a high-quality industrial contactor with a 230V AC coil designed for motor control and resistive load applications. This 3-pole contactor supports a contact current of 65A and a power rating of 30 kW at 230V AC, making it suitable for demanding electrical settings.
The device is built for easy integration on DIN rails, featuring compact dimensions of 122mm length, 55mm width, and 120mm depth. It ensures reliable operation in harsh environments with a temperature range spanning from -40°C to 60°C.
This contactor provides 3 NO main contacts and 2 auxiliary contacts configured as 1 NO and 1 NC, enhancing system control and monitoring capabilities. Using screw clamp terminals, it ensures secure electrical connections that aid maintenance and installation.
Designed particularly for motor control and resistive load management, the LC1D65AP7 can handle contact voltages up to 690V AC, making it suited for diverse industrial automation tasks and resistive loads.
Manufactured in Indonesia, the contactor complies with multiple international standards including UL, RoHS, IEC, EAC, CSA, and CCC, guaranteeing safety and energy efficiency in industrial deployments. Its design also focuses on sustainability, featuring components engineered for disassembly.
Operates with a coil voltage of 230V AC for efficient motor control. Features 3 poles with 3 NO contact configuration for versatile switching. Handles a high contact current of 65A and power rating of 30 kW at 230V AC. Designed for mounting on DIN rails, allowing easy installation.
Suitable for operation in temperatures from -40°C up to 60°C, ensuring durability. Equipped with 1 NO and 1 NC auxiliary contacts for additional control functions. Constructed with screw clamp terminals for secure and straightforward wiring.
Supports operational contact voltage up to 690V AC for high-capacity use cases. Complies with UL, RoHS, IEC, EAC, CSA, and CCC standards for safety and quality.
Ideal for industrial, manufacturing, electrical automation, and HVAC applications, the Schneider Electric LC1D65AP7 contactor offers robust performance and reliable safety for motor and load control.
