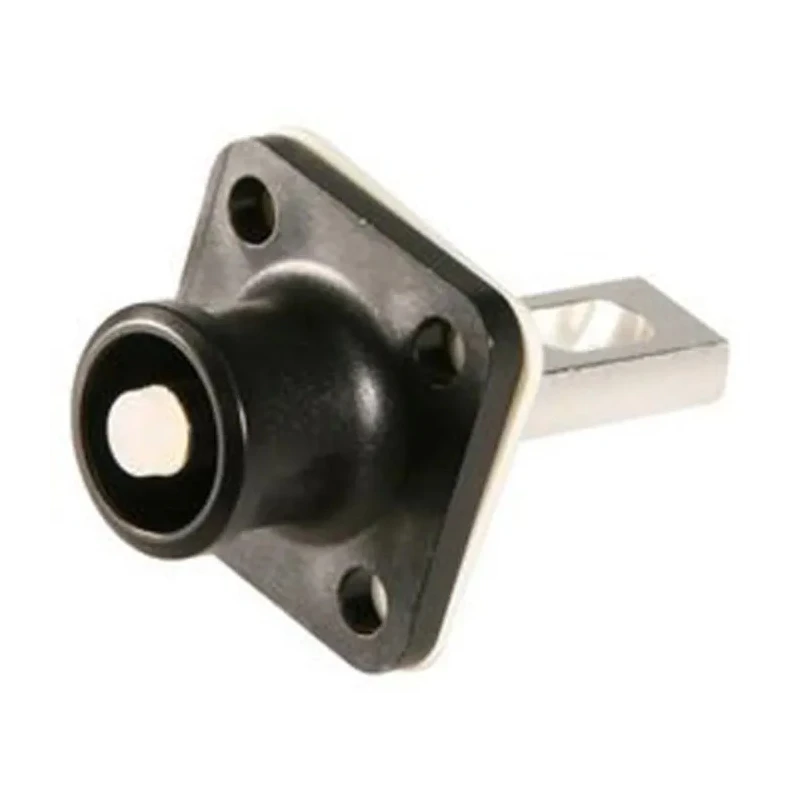

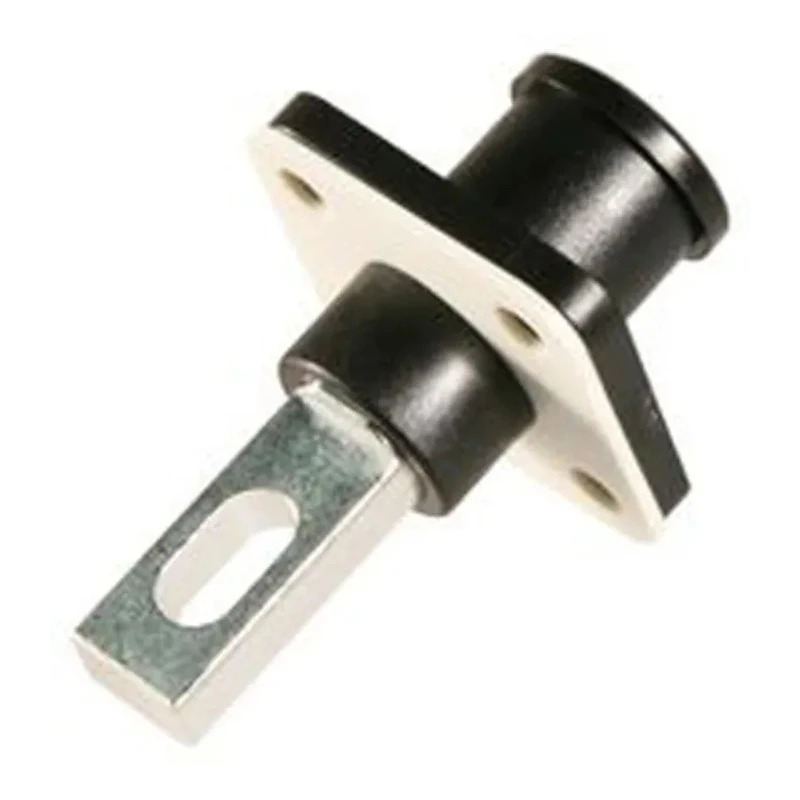

Amphenol Industrial SURLOK PLUS RADSOK EV Connector Female 120A Panel Mount IP67 SLPRABPSB / C10-730187-110

Amphenol Industrial SLPRABPSB / C10-730187-110 SURLOK PLUS RADSOK EV Connector Female 120A is a precision-engineered compression lug connector designed for use in demanding electric vehicle (EV) applications and other industrial sectors. This female connector, part of the SURLOK PLUS series, features a panel mount flange and a straight body orientation for convenient and secure installation.

The connector is rated for 120 amperes current and can operate at voltages up to 1000 volts, making it suitable for high-demand power transmission in EV and heavy equipment systems. Its copper alloy contacts provide a highly conductive path, while the thermoplastic housing ensures durability and resistance to environmental factors.

Engineered to meet the UL 94-V0 flammability standard and carrying an IP67 ingress protection rating, this connector delivers excellent resistance to dust and water, contributing to long-term reliability even in harsh conditions. Designed for wire sizes 16 to 25 mm², the connector uses the R4 RADSOK technology for strong mechanical and electrical connection with a 5.7 mm pin diameter.

Key features such as spring locking, touch-proof design, and keyed mechanisms prevent mismating and enhance operational safety. The connector's temperature tolerance ranges from a minimum of -40°C up to a maximum of 125°C, supporting diverse industrial scenarios including medical, rail mass transit, process control, battery management, and renewable energy solutions.

Amphenol's SURLOK PLUS series is well-recognized for its quick mating, robustness, and environmental sealing, making this connector reliable for critical power and signal transmission in transportation, energy storage, and industrial applications.

Designed for 120A current with a 1000V operating voltage rating. Constructed from copper alloy contacts and thermoplastic housing ensuring superior conductivity and durability. Rated for IP67 protection and UL 94-V0 flammability ensuring environmental sealing and safety.

Supports wire sizes 16mm² to 25mm² and features a 5.7mm pin diameter. Operates reliably between -40°C and 125°C temperature range for varied industrial environments. Equipped with spring locking and touch-proof technology to ensure secure and safe connections.

Panel mount flange and straight orientation for easy installation. Applications include electric vehicles, rail mass transit, medical equipment, process control, and battery management systems. Explore more products in the EV Connector category at EnvMart for industrial-grade, reliable, and high-performance connectivity solutions.
