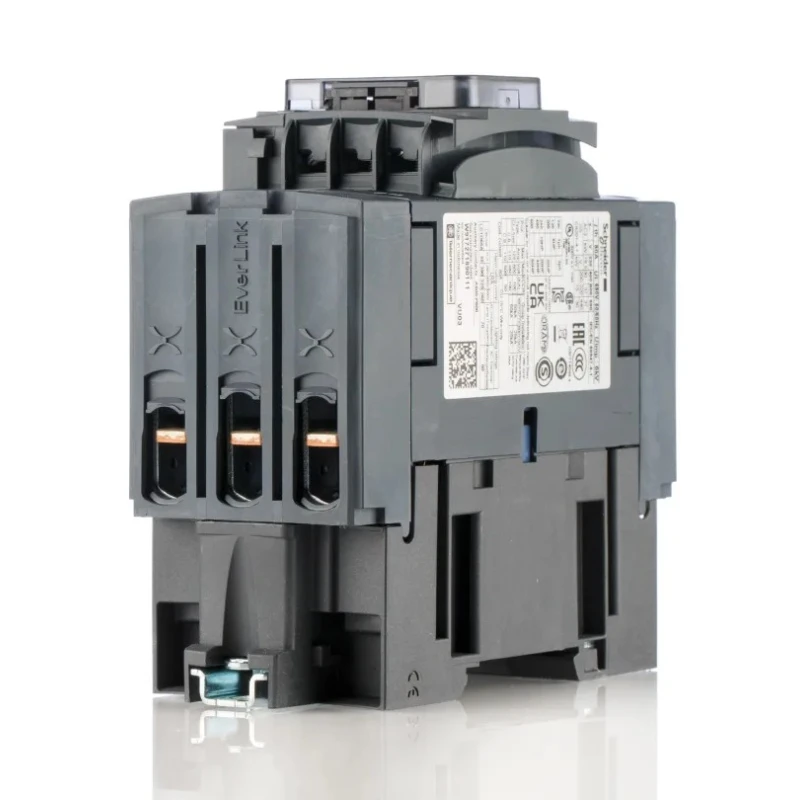

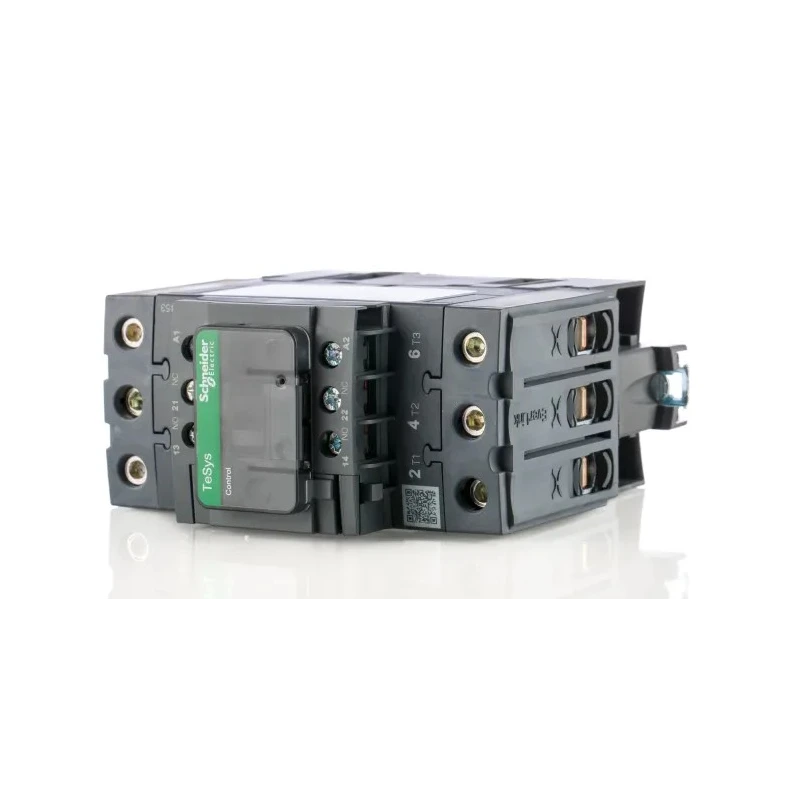

Schneider Electric LC1D Contactor, 3-Pole, 50 A, 22 kW Power Rating, 230V AC Coil, 690V AC Contact Voltage LC1D50AP7
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 122mm |
| Model | LC1D50AP7 |
| Depth | 120mm |
| Width | 55mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 22kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | EAC, CCC, CSA, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 50A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 50A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
Key Features
- This contactor features a robust design suitable for commercial and industrial use.
- It has 3 poles with a 50 A contact current rating and 690V AC contact voltage.
- Equipped with 3 normally open contacts and 2 auxiliary contacts configured as 1 NO/1 NC.
- The coil voltage is 230V AC, compatible with standard control circuits.
- Mounts easily on DIN rails with screw clamp terminals for secure connections.
- Operates reliably within temperature ranges from -40°C to 60°C.
- Includes a heat-resistant plastic housing to prevent fire hazards.
- Designed with a scannable QR code for quick access to data sheets and installation guides.
Product Description
Schneider Electric LC1D50AP7 is a high-performance 3-Pole contactor with a coil voltage of 230V AC designed specifically for motor control and resistive load applications. With a contact current rating of 50 A and a power rating of 22 kW at 230V AC, this contactor is ideal for commercial appliances, HVAC systems, office infrastructure, and lighting systems.
Its compact dimensions (Length: 122 mm, Width: 55 mm, Depth: 120 mm) and DIN rail mounting make it easy to install in control panels. The contactor features a robust plastic housing resistant to heat and flame, ensuring operational safety and longevity.
The device includes 3 normally open main contacts and 2 auxiliary contacts (configured as 1 NO and 1 NC) to support complex control schemes. The coil voltage of 230V AC matches standard industrial control circuits, providing reliable operation in various environments.
Suitable for operation over a wide temperature range from -40°C to 60°C, this contactor meets key industry standards such as EAC, CCC, CSA, IEC, RoHS, and UL. Packaged using recycled materials, the product supports Schneider Electric's Better World sustainability initiatives.
Installation is convenient with multi-standard screw terminals accommodating flat, Philips, and Pozidriv screwdrivers, along with removable Everlink terminals for fast vertical linking to circuit breakers without additional accessories.
This contactor is designed for motor control and resistive load applications. Features a 3-pole configuration with 50 A contact current rating and 690V AC contact voltage. Includes 2 auxiliary contacts with 1 NO and 1 NC configuration.
Mounts easily on DIN rail with screw clamp terminals. Operates reliably within -40°C to 60°C temperature range. Robust, heat-resistant plastic housing minimizes fire risk. Includes a QR code for quick access to technical documentation.
Compliance with multiple international standards ensures safety and reliability. Supports sustainability with recycled packaging materials.
This contactor is suitable for various industrial, commercial, and HVAC applications, providing efficient and safe motor control solutions. Explore more Schneider Electric automation and control gear products at EnvMart for your professional electrical component needs.
