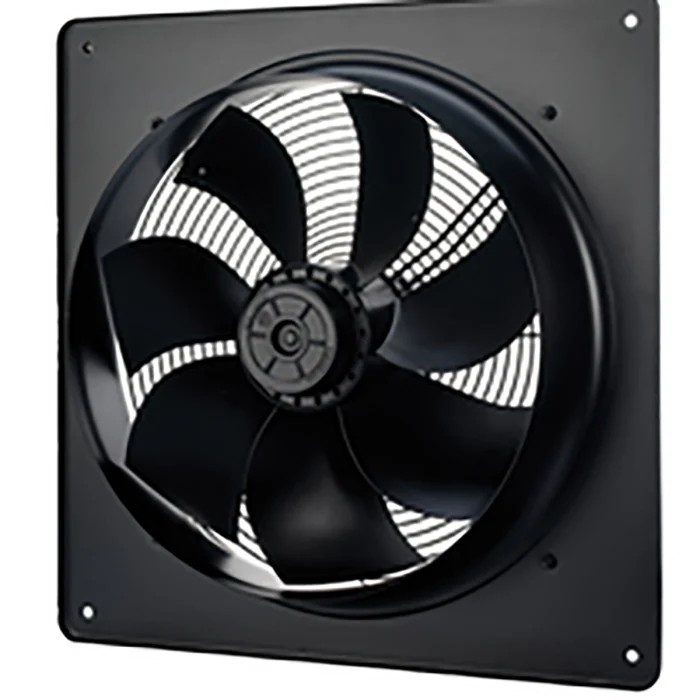

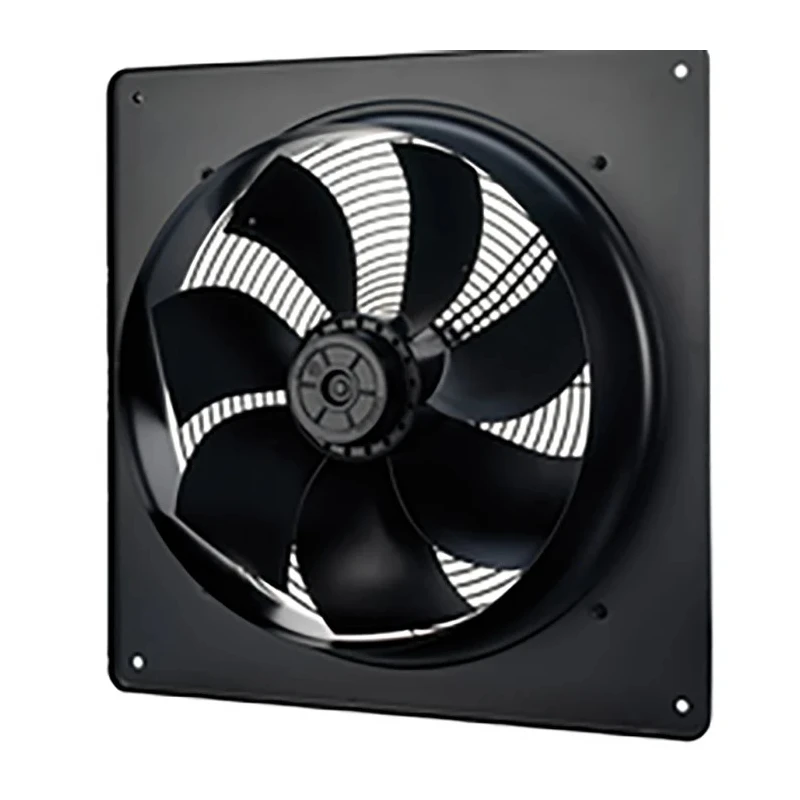

Vent-Axia VSP Square Wall Mount Plate Fan 230V AC 166W 1.07 m³/s 46 dBA Duct Size 400 mm VSP40014

Vent-Axia VSP40014 is a high-performance square wall mount plate fan designed for industrial and commercial ventilation applications. It operates at 230V AC and consumes 166W of power, delivering an axial airflow of 1.07 m³/s with a low noise level of 46 dBA. The fan features a 400 mm duct size and is configured in a square shape with overall face dimensions of 549 mm by 549 mm and an installation depth of 181.5 mm.

This model includes the latest FE2 Owlett impeller technology, providing up to 7 dB(A) noise reduction and 15% improved efficiency compared to previous fan ranges. The swept impeller with aerofoil blades, winglets, and serrated trailing edges optimize the airflow performance while minimizing sound levels. The impeller is a one-shot die-cast piece dynamically balanced for smoother operation and comes with backward curve blades to maximize airflow efficiency.

Equipped with external rotor motors featuring thermal overload protection and sealed for life bearings, the fan ensures reliable, maintenance-free operation. The epoxy paint finish provides corrosion resistance suitable for harsh industrial environments. The device is IP54 rated, protecting against dust and splashes, further extending operational lifespan.

Additional features include ball bearing construction, a maximum operating temperature of 70°C, and a maximum current rating of 4.2A. Lead wire termination is provided for ease of electrical connection. The unit is supplied with guards fitted as standard for safety and complies with RoHS, ISO, and BS EN standards. Industrial applications include factories, warehouses, and other commercial facilities requiring efficient extraction or ventilation.

This product is manufactured in Germany and comes with a 2-year warranty, underscoring its quality and reliability in rigorous environments. Operates at 230V AC with 166W power consumption. Airflow capacity of 1.07 m³/s ensuring robust ventilation.

Noise level of 46 dBA for quiet operation in industrial settings. Square wall mount configuration with 400 mm duct size. Advanced swept impeller design with aerofoil blades and serrated trailing edges. IP54 protection rating suitable for dust and water exposure.

Maintenance-free sealed bearings and thermal overload motor protection. Made in Germany ensuring superior build quality and standards compliance. Explore EnvMart’s range of industrial Extractor Fans and related HVAC solutions for your ventilation needs.
