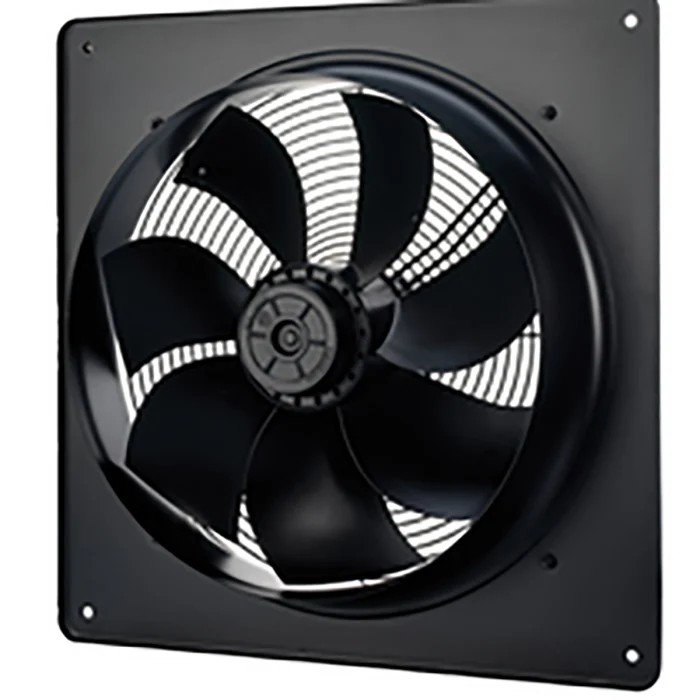

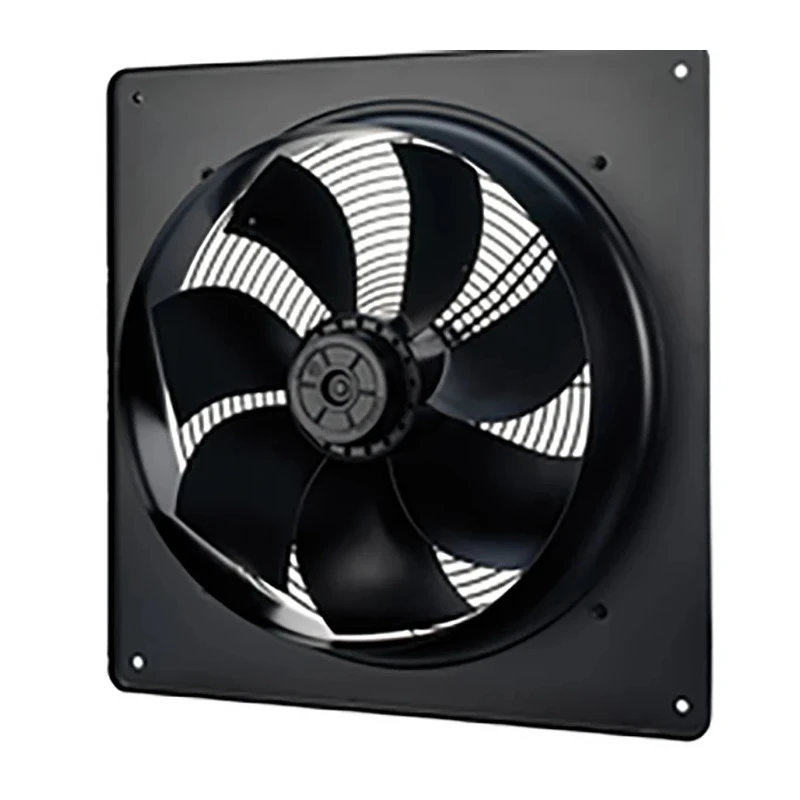

Vent-Axia Square Wall Mount Plate Fan 230V AC 630W 2.47 m³/s Airflow 51 dBA Noise Level Duct Size 500 mm VSP50014

Vent-Axia VSP50014 is a square wall mount axial plate fan designed for high performance ventilation applications. Operating at 230V AC and consuming 630W of power, this fan delivers an airflow rate of 2.47 m³/s with a noise level of only 51 dBA, making it suitable for industrial, commercial, and institutional environments.

The fan features a square face measuring 655 mm by 655 mm with an installation depth of 226 mm, and it is designed to fit 500 mm ducting. It incorporates an advanced FE2 Owlett impeller featuring aerofoil blades with winglets and serrated trailing edges, resulting in improved aerodynamic efficiency and noise reduction up to 7 dB compared to previous models.

The VSP series fan includes an external rotor motor that is compact and efficient, running at 1230 rpm with a maximum current of 13.2 A. The die-cast impeller is dynamically balanced for smooth operation and fitted with ball bearings for extended maintenance-free use. The motor is protected by thermal overload to enhance reliability.

With an IP54 ingress protection rating, the fan is safeguarded against dust and water splashes, ensuring durability in factory and warehouse settings. The epoxy paint finish adds further corrosion resistance. This model meets relevant industry standards including BS EN, RoHS, and ISO certifications.

Applications for the Vent-Axia VSP50014 include ventilation in factories, warehouses, and other buildings requiring effective air extraction and ducting solutions. The fan's advanced design ensures energy efficiency, reliability, and quieter operation, which helps maintain a comfortable workplace environment.

Operates at 230V AC with a power consumption of 630W. Square configuration with 655 mm face height and width. Airflow capacity of 2.47 cubic meters per second with 51 dBA noise level. Wall mount installation with 226 mm depth and 500 mm duct size compatibility.

Advanced impeller design reduces noise and increases efficiency. External rotor motor with thermal overload protection and sealed bearings. Built to IP54 standards for robust industrial use. Epoxy coated finish for corrosion resistance.

Conforms to BS EN, RoHS, and ISO standards. Ideal for industrial, commercial, and warehouse ventilation applications. Explore EnvMart's extensive selection of industrial fans and extractors for optimized air management solutions.
